Individual hose record
KRH10330 Hose Repair Specifications
Excavator · Case · CX240C-8 · Engine Oil Lines
Finished length1,350 mm
Locate this hose

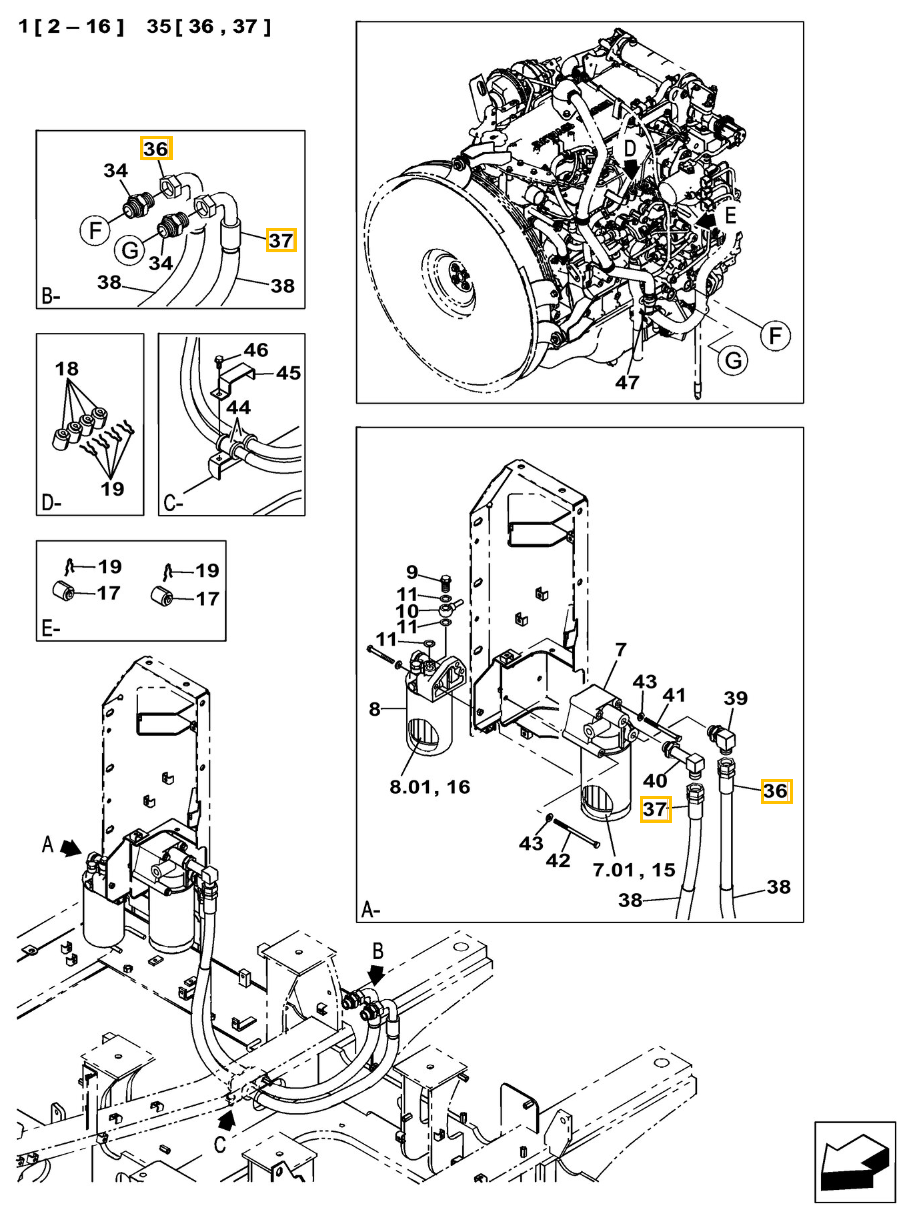

Installation diagram — Pipe No. 37
Locate Pipe No. 37 in the diagram, then confirm part number KRH10330 before removing the hose.
Repair specifications
- Part number
- KRH10330
- Diagram pipe number
- 37
- Installation route
- 机油管
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 1,350 mm
- Working pressure
- 10.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
