4632449 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC-3 · Swivel Joint

Finished length2,200 mm

Locate this hose

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4632449 before removing the hose.

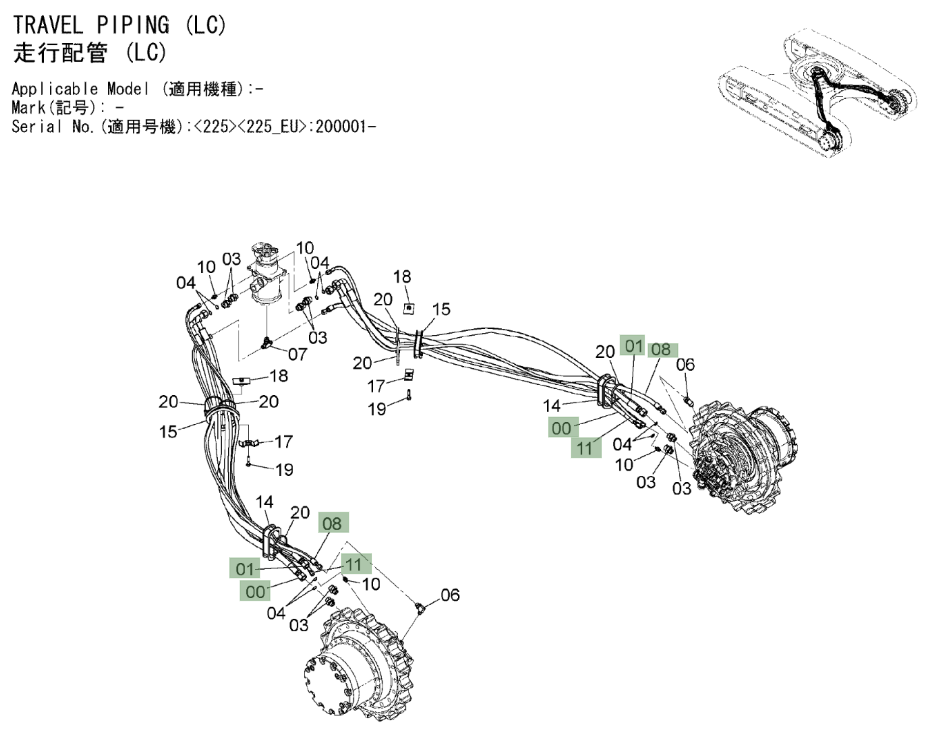

Hitachi ZX225USLC-3 installation diagram showing hydraulic hose 4632449 at Pipe No. 0 — **Hitachi ZX225USLC-3**Part 4632449 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4632449
Diagram pipe number: 0
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN19;4SH-12;42MPa
Finished length: 2,200 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 2
