4355500 Hose Repair Specifications

Excavator · Hitachi · EX230LC-5 · Pedal

Finished length3,000 mm

Locate this hose

Installation diagram — Pipe No. 0

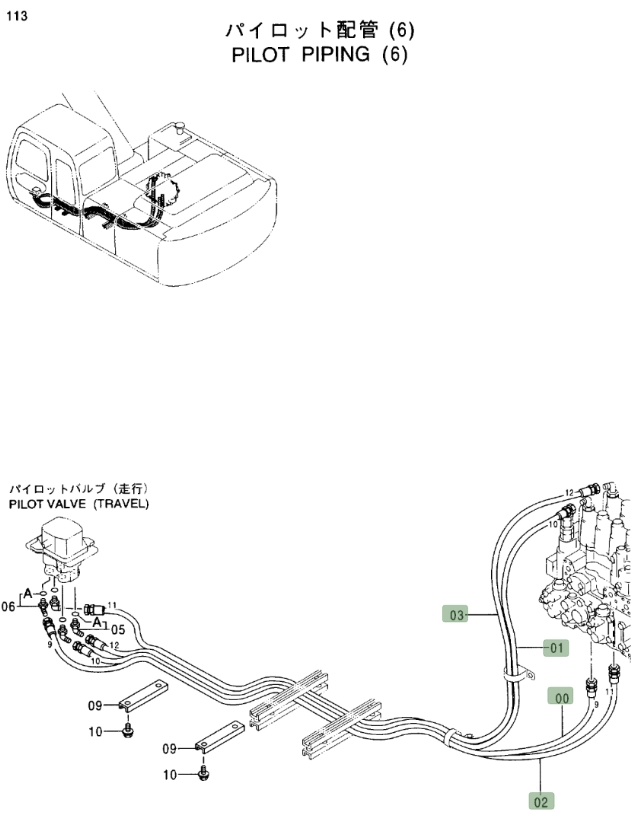

Locate Pipe No. 0 in the diagram, then confirm part number 4355500 before removing the hose.

Hitachi EX230LC-5 installation diagram showing hydraulic hose 4355500 at Pipe No. 0 — Hitachi EX230LC-5Part 4355500 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4355500
Diagram pipe number: 0
Installation route: 行走踏板~分配阀下左
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,000 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

4355425

Installation route: 行走踏板~分配阀上左

Length: 3,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4360873

Installation route: 行走踏板~进回油阀

Length: 950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 3

4355426

Installation route: 行走踏板~分配阀上右

Length: 3,250 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 2

4355501

Installation route: 行走踏板~分配阀下右

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4346008

Installation route: 行走踏板~进回油阀

Length: 1,100 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
