KHJ15120 Hose Repair Specifications

Excavator · Case · CX210C LR · Control Lever

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 130

Locate Pipe No. 130 in the diagram, then confirm part number KHJ15120 before removing the hose.

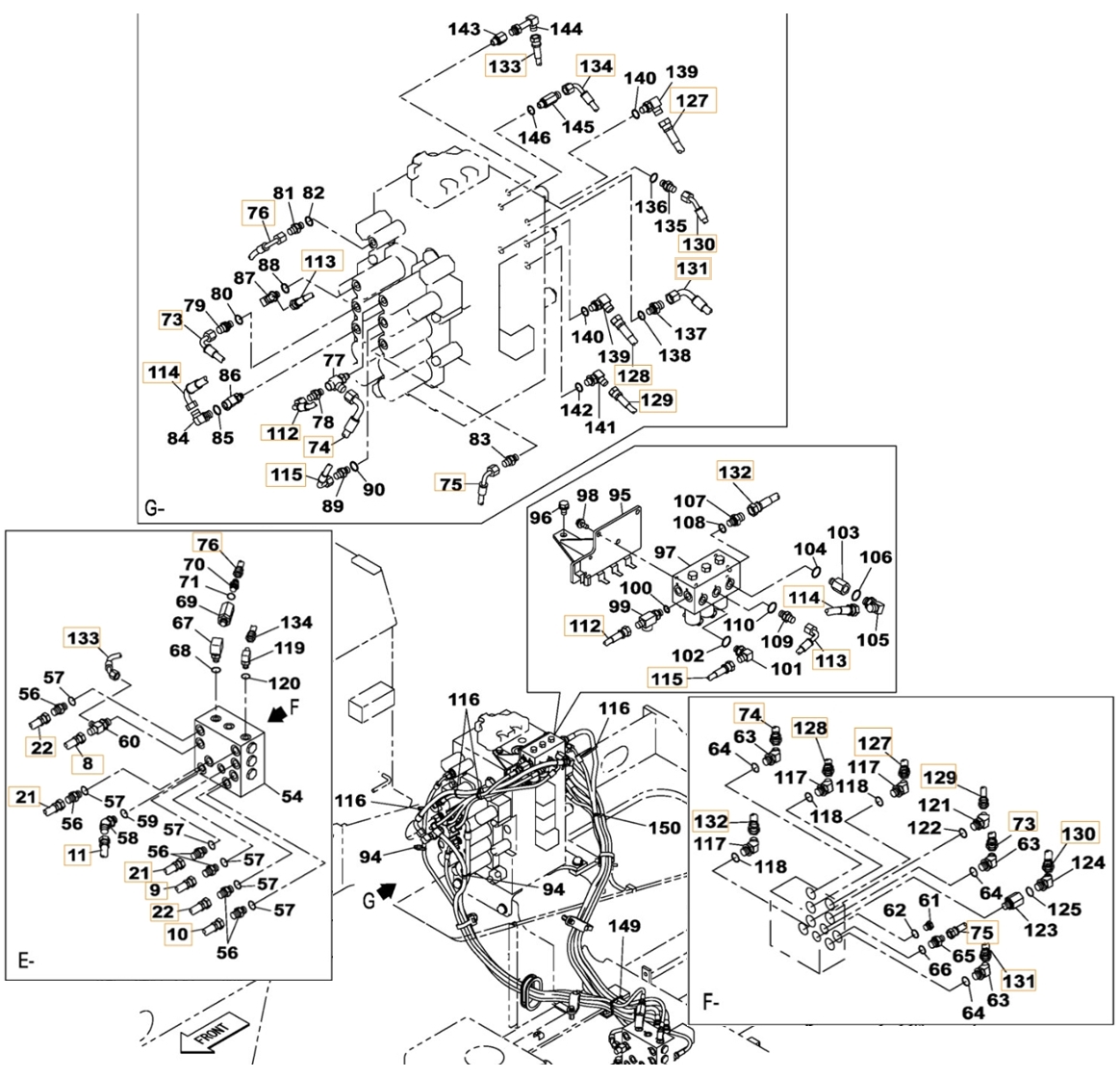

Case CX210C LR installation diagram showing hydraulic hose KHJ15120 at Pipe No. 130 — **Case CX210C LR**Part KHJ15120 · Pipe No. 130Open full-size diagram

Repair specifications

Part number: KHJ15120
Diagram pipe number: 130
Installation route: 中转接头~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1
