Individual hose record

KNJ2513 Hose Repair Specifications

Excavator · Case · CX130 · Boom Assembly

Finished length650 mm

Locate this hose

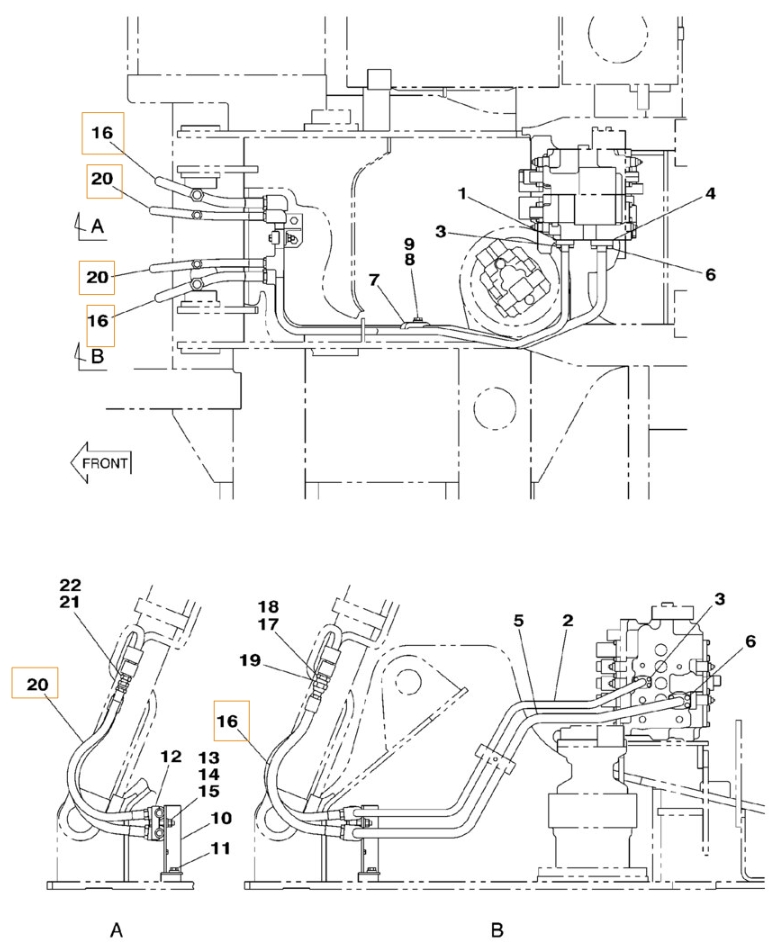

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number KNJ2513 before removing the hose.

Part number: KNJ2513
Diagram pipe number: 20
Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3
Hose specification: DN13;4SH-08;41.5MPa
Finished length: 650 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 16

Installation route: 大臂油缸左1/左4

Length: 650 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂左3/左4

Length: 1,030 mm
Specification: DN16;4SP-10;38MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂油缸

Length: 1,000 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
