Individual hose record

KHJ2180 Hose Repair Specifications

Excavator · Case · CX700B · Attachments – Breaker

Finished length500 mm

Locate this hose

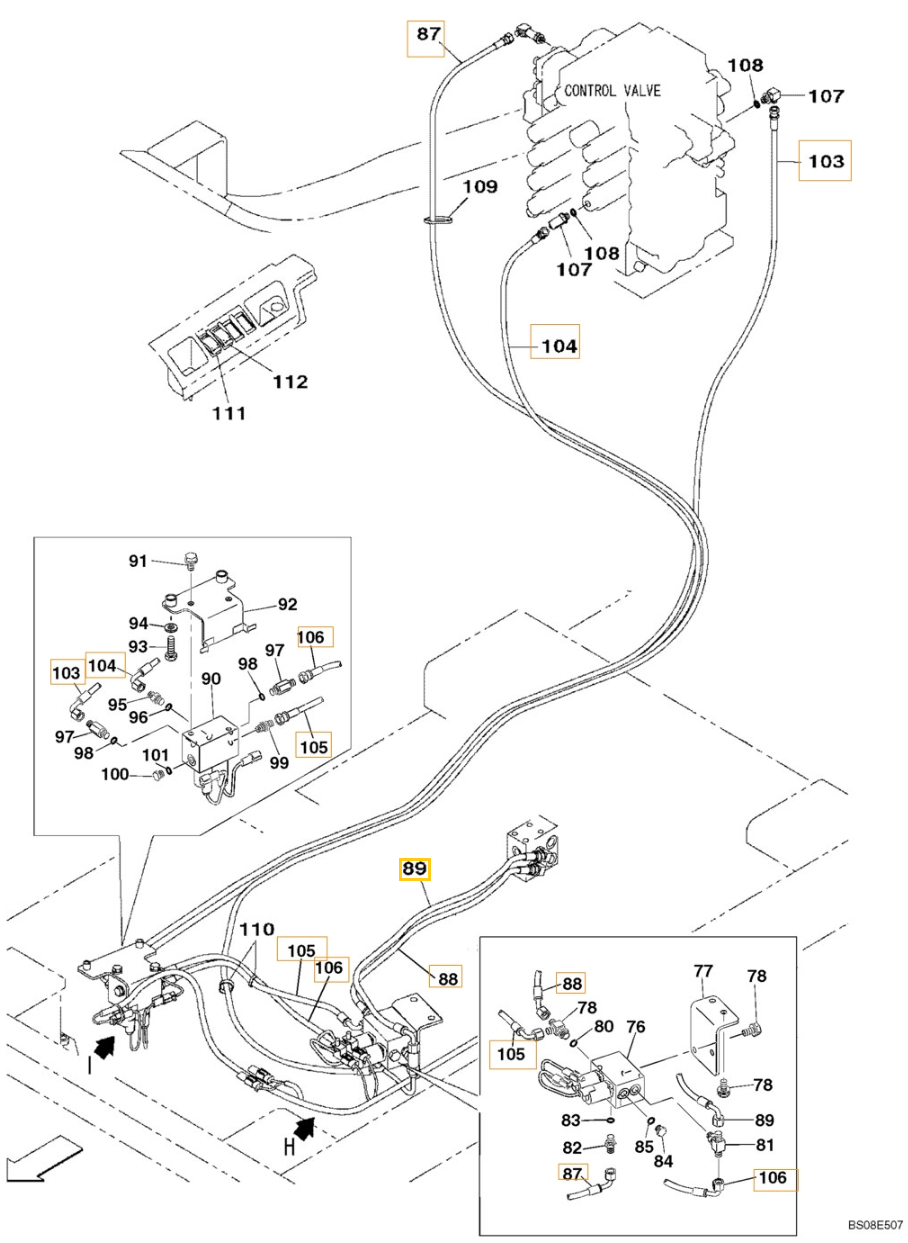

Installation diagram — Pipe No. 105

Locate Pipe No. 105 in the diagram, then confirm part number KHJ2180 before removing the hose.

Part number: KHJ2180
Diagram pipe number: 105
Installation route: 破碎器踏板~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 89

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 88

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 106

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Diagram Pipe No. 75

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 104

Installation route: 破碎器踏板~分配阀前左

Length: 4,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
