Individual hose record

730502001731 Hose Repair Specifications

Excavator · Sunward · SWE80E9 · Solenoid Valve

Finished length1,800 mm

Locate this hose

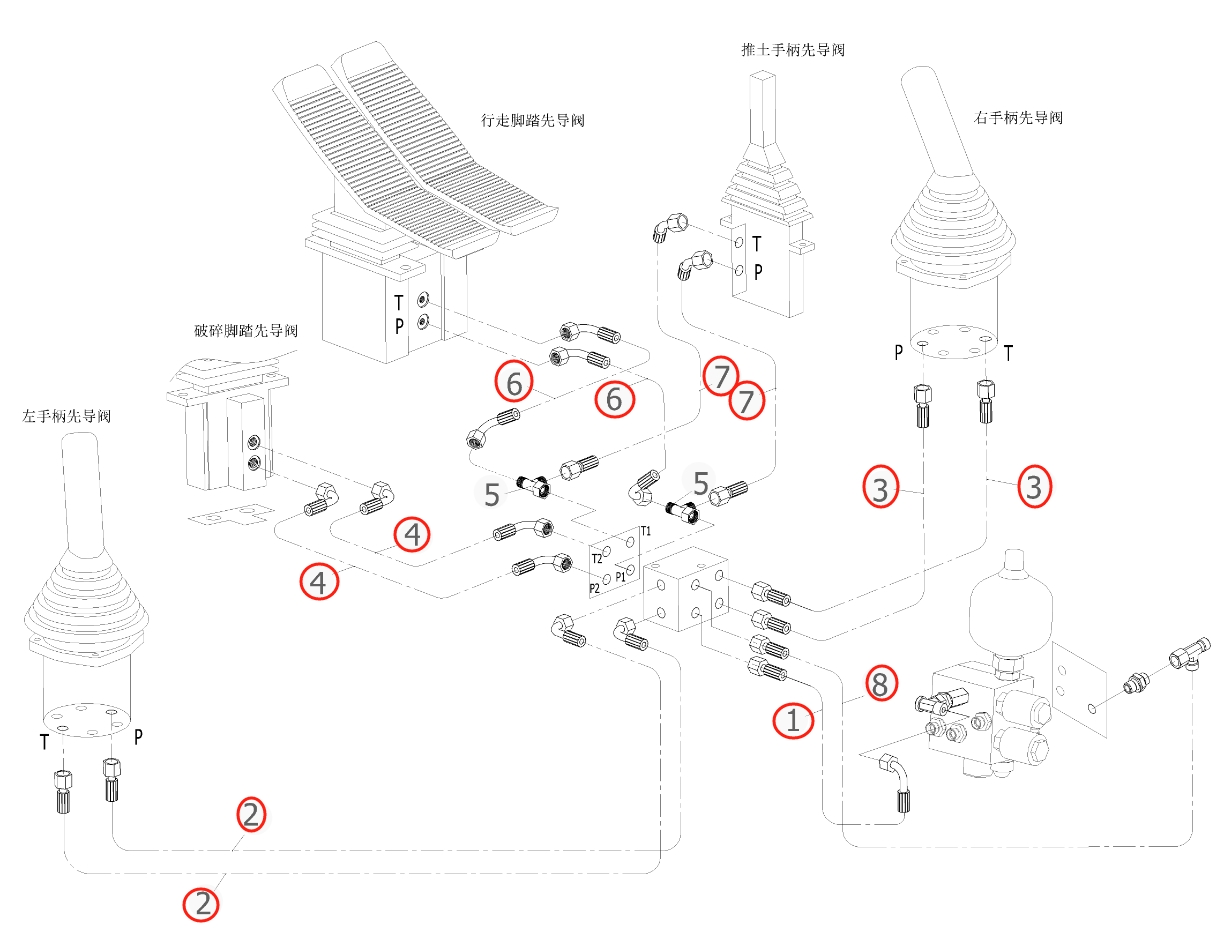

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 730502001731 before removing the hose.

Sunward SWE80E9 installation diagram showing hydraulic hose 730502001731 at Pipe No. 1 — Sunward SWE80E9Part 730502001731 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 730502001731
Diagram pipe number: 1
Installation route: 电磁阀(蓄能器)~进回油阀
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 1,800 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
