Individual hose record
4269800 Hose Repair Specifications
Excavator · Hitachi · ZX210LC-5A · Hydraulic Pump
Finished length950 mm
Locate this hose

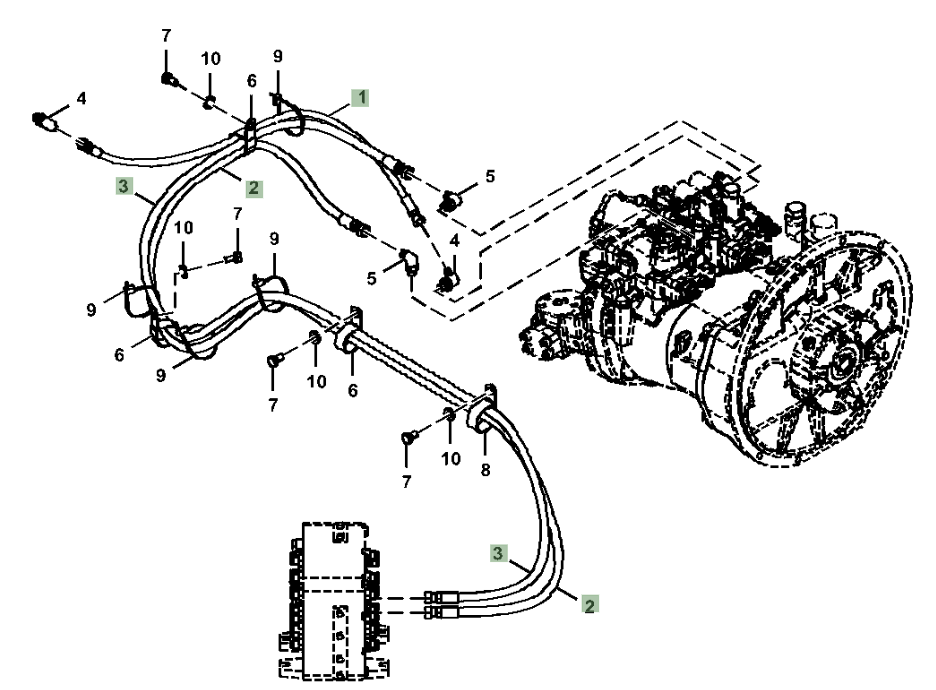

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4269800 before removing the hose.
Repair specifications
- Part number
- 4269800
- Diagram pipe number
- 1
- Installation route
- 液压泵~液压油箱
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 950 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
