- Length
- 1,900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
KHJ2746 Hose Repair Specifications
Excavator · Case · CX750D RTC · Solenoid Valve
Finished length3,300 mm
Locate this hose

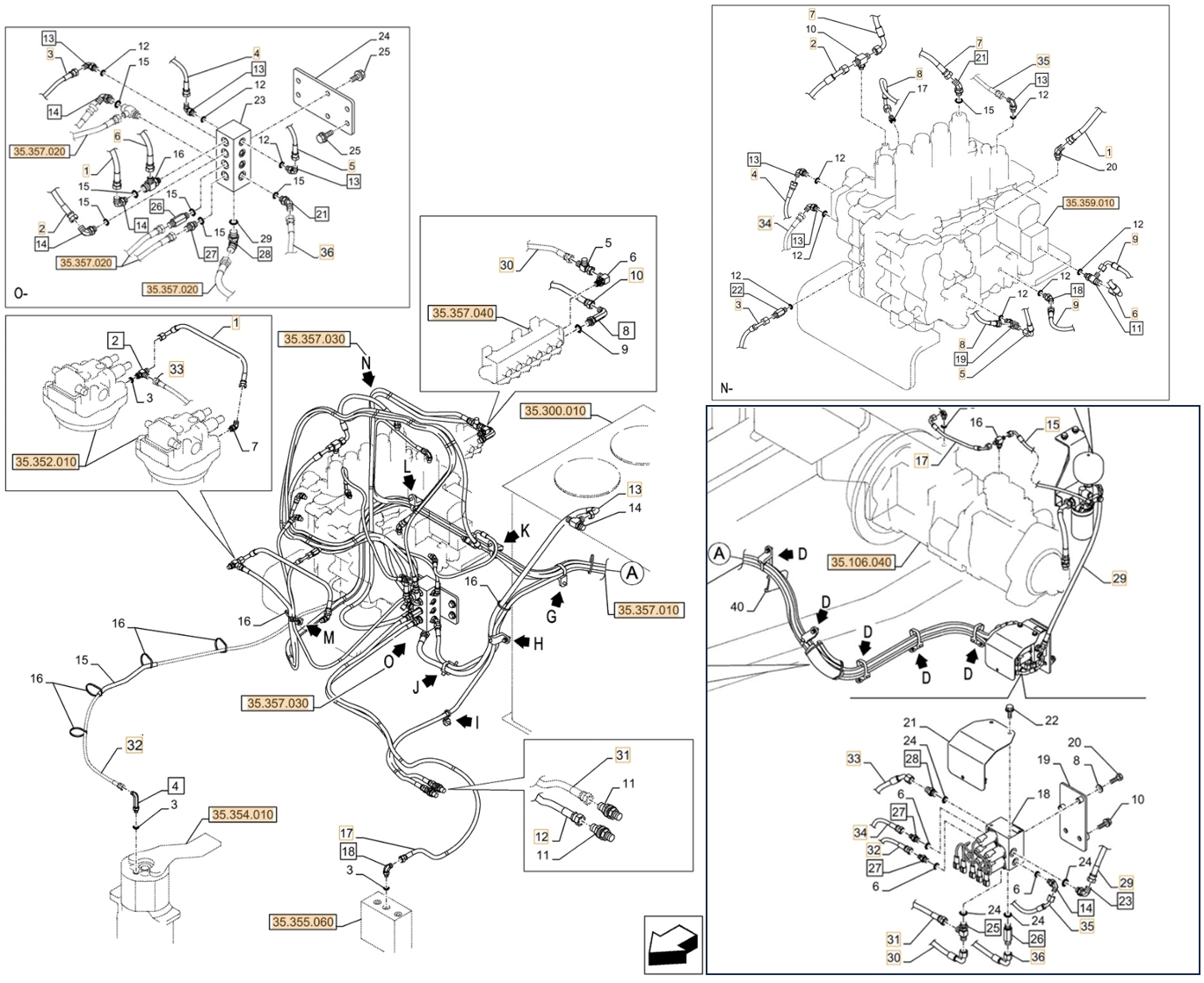

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number KHJ2746 before removing the hose.
Repair specifications
- Part number
- KHJ2746
- Diagram pipe number
- 30
- Installation route
- 电磁阀~电磁阀(分配阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,300 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
