Individual hose record

730502006495 Hose Repair Specifications

Excavator · Sunward · SWE750F · Attachments – Breaker

Finished length1,700 mm

Locate this hose

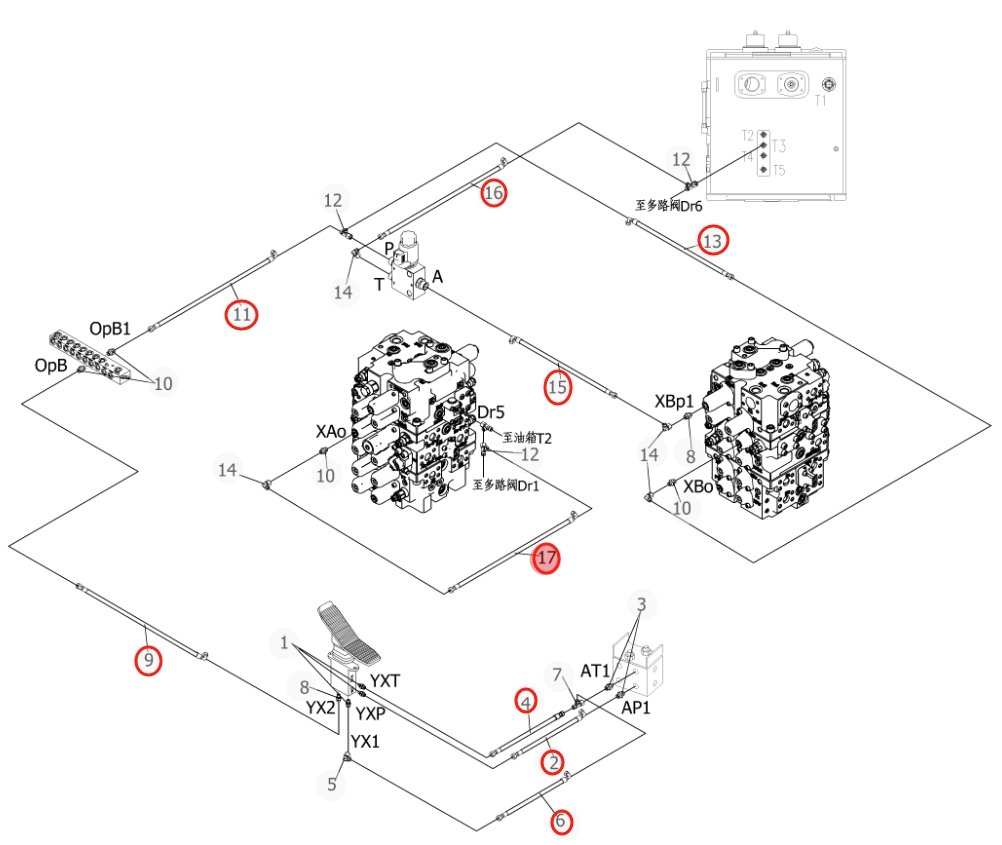

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 730502006495 before removing the hose.

Sunward SWE750F installation diagram showing hydraulic hose 730502006495 at Pipe No. 11 — Sunward SWE750FPart 730502006495 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 730502006495
Diagram pipe number: 11
Installation route: 电磁阀P~电磁阀OPB1(十联)
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 1,700 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

730502001302

Installation route: 破碎器踏板YX1~进回油阀AT1

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 6

730502002482

Installation route: 破碎器踏板YX1~进回油阀AT1

Length: 470 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730502000375

Installation route: 破碎器踏板YXP~进回油阀AP1

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 17

730502006704

Installation route: 分配阀左DR5~分配阀前XAO

Length: 530 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
