Individual hose record
DS2093024 Hose Repair Specifications
Excavator · Doosan · DX62R-3 · Pedal
Finished length320 mm
Locate this hose

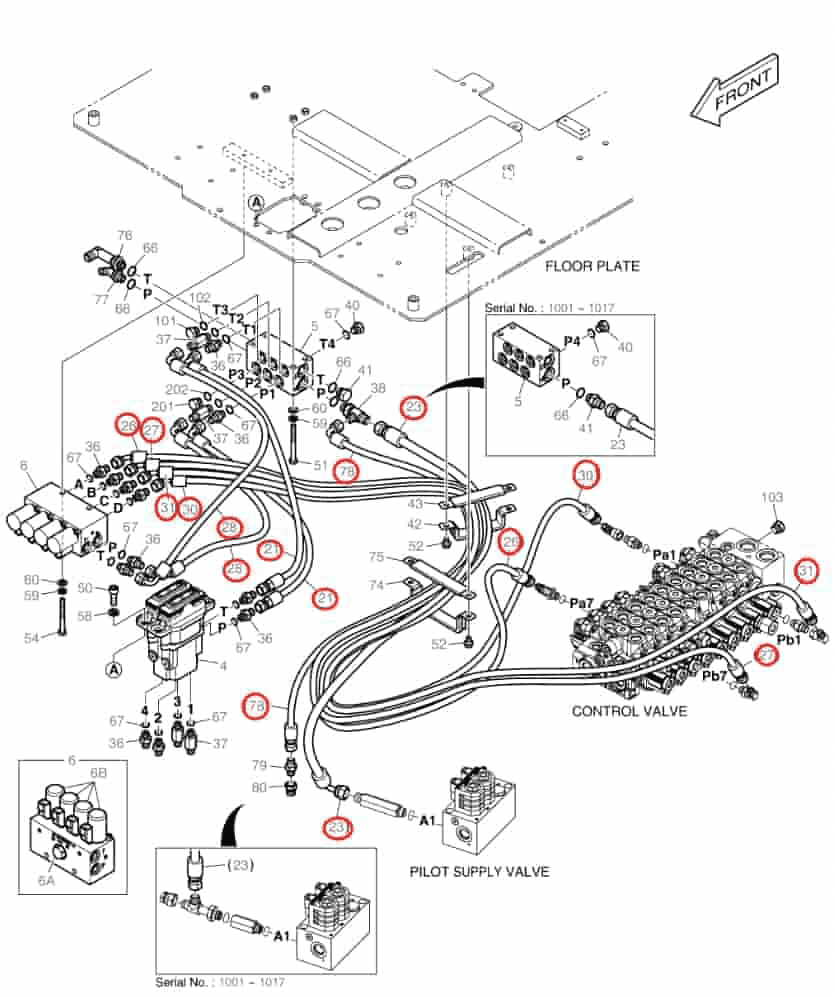

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number DS2093024 before removing the hose.
Repair specifications
- Part number
- DS2093024
- Diagram pipe number
- 21
- Installation route
- 行走踏板~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 320 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 2
