Individual hose record
4207992 Hose Repair Specifications
Excavator · Hitachi · EX100 · Control Lever
Finished length700 mm
Locate this hose

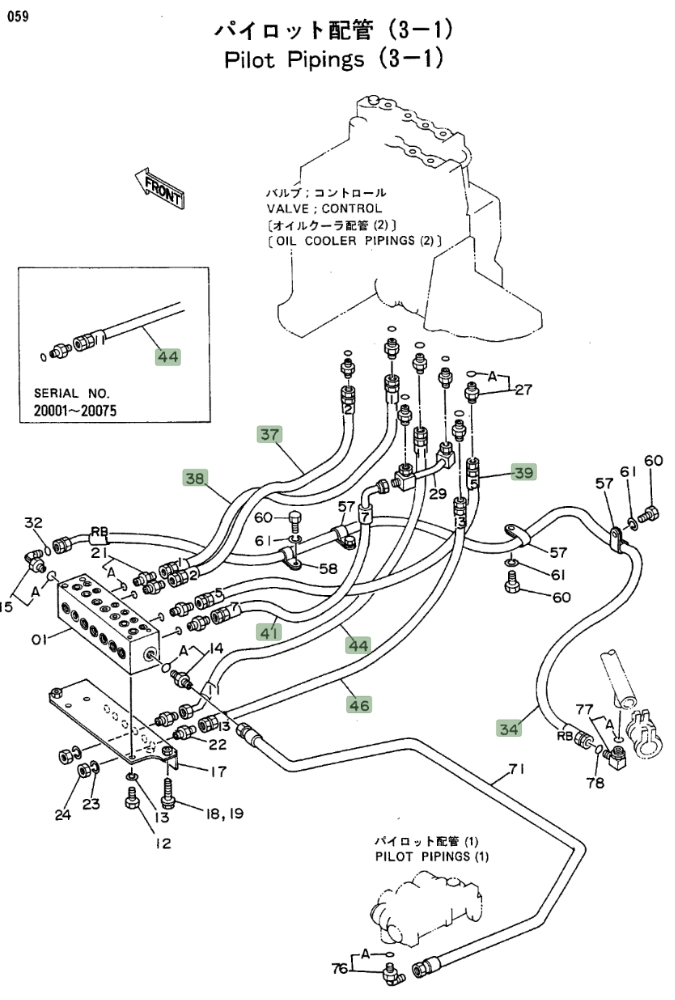

Installation diagram — Pipe No. 44
Locate Pipe No. 44 in the diagram, then confirm part number 4207992 before removing the hose.
Repair specifications
- Part number
- 4207992
- Diagram pipe number
- 44
- Installation route
- 接线板(中转接头)~分配阀下
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 700 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
