Individual hose record

4429283 Hose Repair Specifications

Excavator · Hitachi · ZX200F · Grease Lines

Finished length2,600 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4429283 before removing the hose.

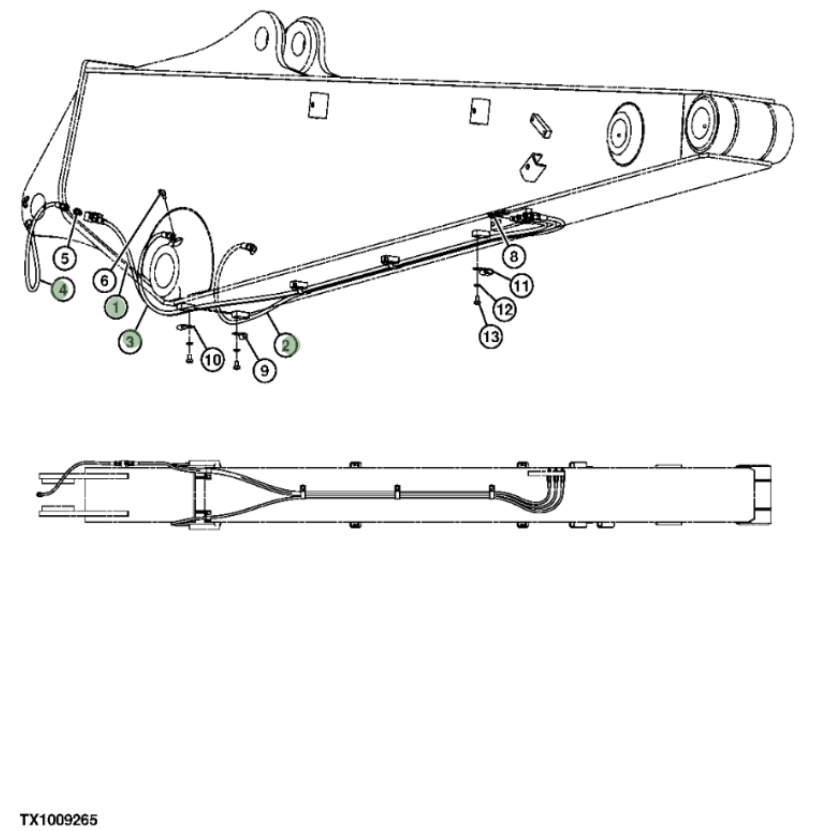

Hitachi ZX200F installation diagram showing hydraulic hose 4429283 at Pipe No. 1 — Hitachi ZX200FPart 4429283 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4429283
Diagram pipe number: 1
Installation route: 小臂黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

4429287

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 5

4429280

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 7

4429283

Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管

Length: 2,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
