Individual hose record

4606397 Hose Repair Specifications

Excavator · Hitachi · ZX130-5G · Boom Assembly

Finished length630 mm

Locate this hose

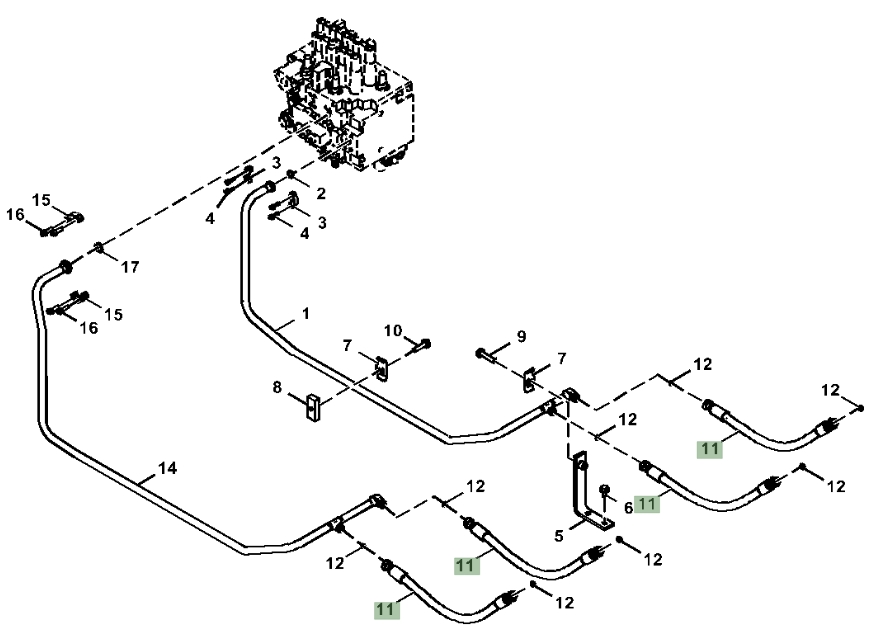

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4606397 before removing the hose.

Part number: 4606397
Diagram pipe number: 11
Installation route: 大臂油缸
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 630 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 1

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 955 mm
Specification: DN16;4SP-10;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 950 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂油缸

Length: 610 mm
Specification: DN12;4SP-8;41.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
