Individual hose record

730501001698 Hose Repair Specifications

Excavator · Sunward · SWE25F · Attachments – Breaker

Finished length400 mm

Locate this hose

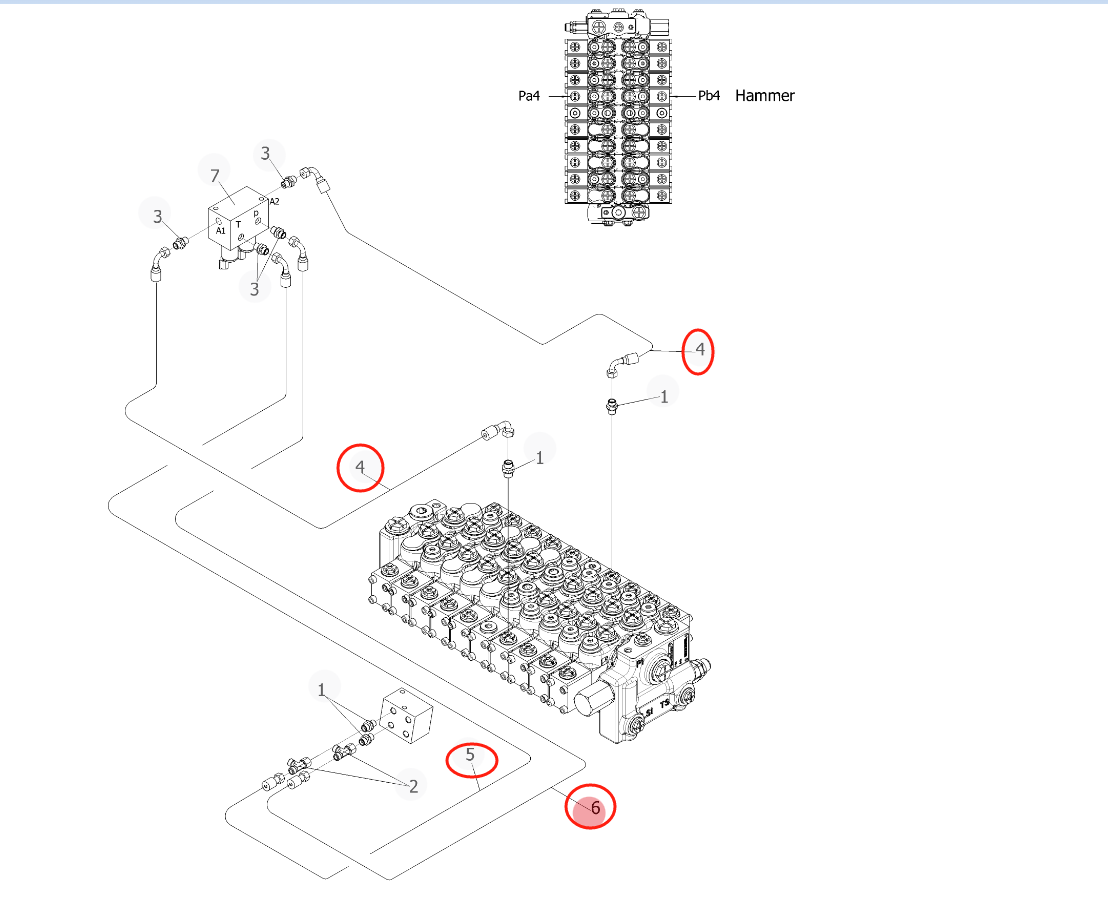

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 730501001698 before removing the hose.

Sunward SWE25F installation diagram showing hydraulic hose 730501001698 at Pipe No. 6 — Sunward SWE25FPart 730501001698 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 730501001698
Diagram pipe number: 6
Installation route: 电磁阀(破碎器)~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 400 mm
Working pressure: 22.5 MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
