9280172 Hose Repair Specifications

Excavator · Hitachi · ZX190W-3 · Control Lever

Finished length3,500 mm

Locate this hose

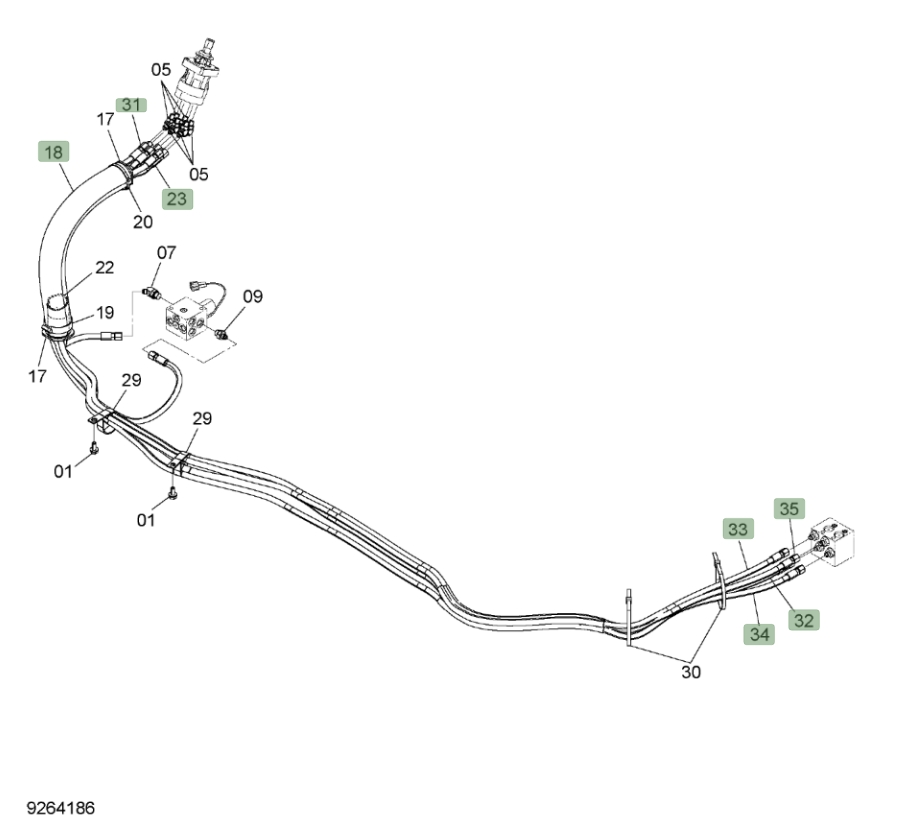

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 9280172 before removing the hose.

Hitachi ZX190W-3 installation diagram showing hydraulic hose 9280172 at Pipe No. 34 — Hitachi ZX190W-3Part 9280172 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 9280172
Diagram pipe number: 34
Installation route: 左手柄~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 20

9280188

Installation route: 中转接头~电磁阀(踏板)

Length: 3,100 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
