Individual hose record
4276003 Hose Repair Specifications
Excavator · Hitachi · ZX210-5G · Attachments
Finished length2,000 mm
Locate this hose

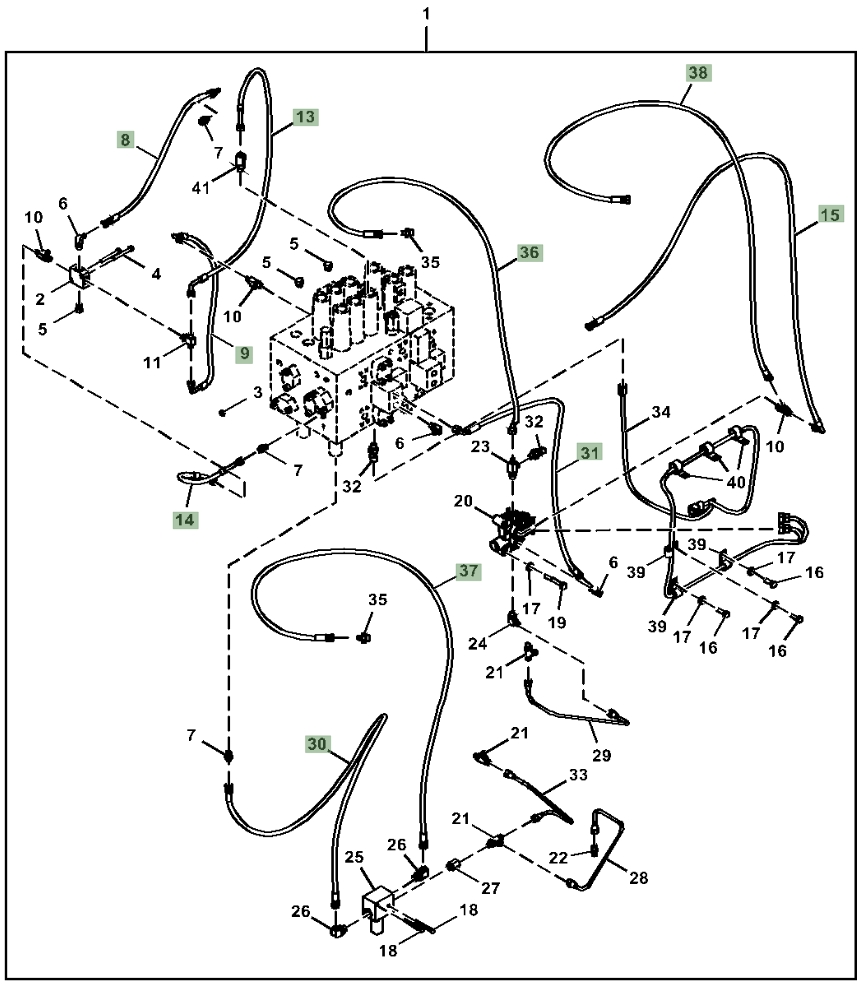

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4276003 before removing the hose.
Repair specifications
- Part number
- 4276003
- Diagram pipe number
- 15
- Installation route
- 电磁阀~
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 2,000 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
