KRV19740 Hose Repair Specifications

Excavator · Case · CX240B · Attachments – Breaker

Finished length1,500 mm

Locate this hose

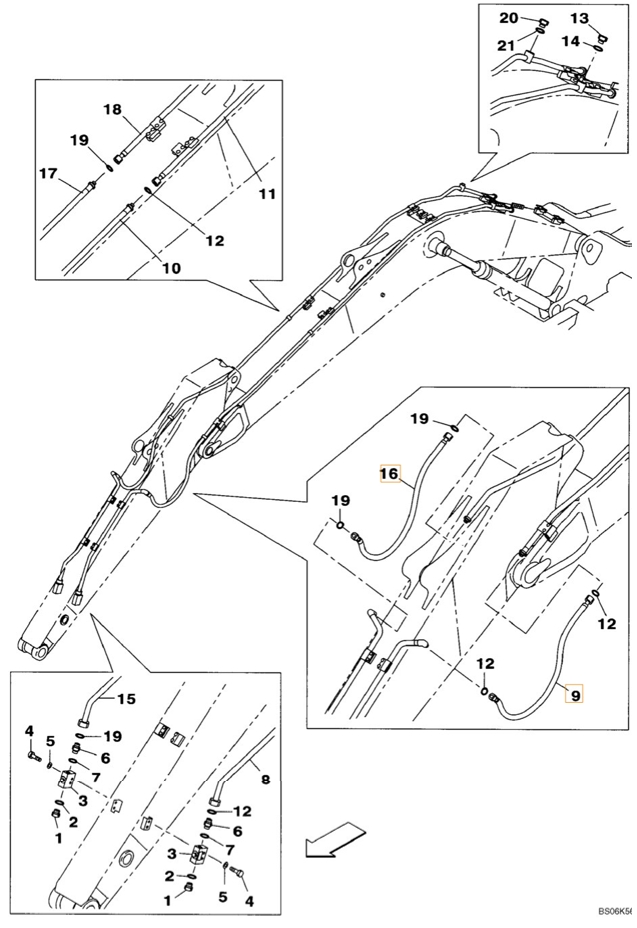

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number KRV19740 before removing the hose.

Case CX240B installation diagram showing hydraulic hose KRV19740 at Pipe No. 16 — **Case CX240B**Part KRV19740 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: KRV19740
Diagram pipe number: 16
Installation route: 小臂破碎器截止阀右
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,500 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
