Individual hose record

4609296 Hose Repair Specifications

Excavator · Hitachi · ZX370F-LL-6N · Attachments

Finished length800 mm

Locate this hose

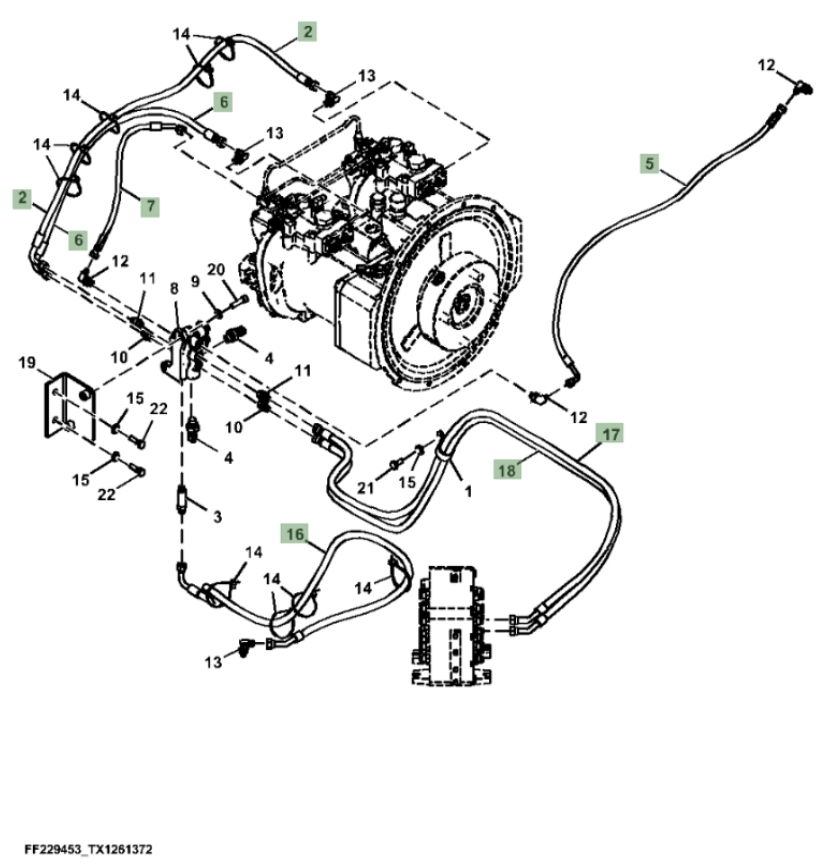

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4609296 before removing the hose.

Hitachi ZX370F-LL-6N installation diagram showing hydraulic hose 4609296 at Pipe No. 6 — **Hitachi ZX370F-LL-6N**Part 4609296 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4609296
Diagram pipe number: 6
Installation route: 液压泵~电磁阀(液压泵)
Hose specification: DN10;1SN-6;18MPa
Finished length: 800 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

FF527444

Installation route: 风扇液压油泵~电磁阀(散热器)

Length: 1,250 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 45°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

FF532759

Installation route: 风扇液压油泵~电磁阀(散热器)

Length: 1,260 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

FF502699

Installation route: 电磁阀(液压泵)~

Length: 1,850 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4695170

Installation route: 电磁阀(散热器)~风扇马达

Length: 700 mm
Specification: DN12;2SN-8;21Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

4636420

Installation route: 中转接头~电磁阀(木料处理)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

FF502640

Installation route: 电磁阀~中转接头

Length: 2,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4453063

Installation route: 中转接头~分配阀上

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 4

4468533

Installation route: 液压油箱~过渡阀块(木料处理)

Length: 800 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications
