Individual hose record
4635305 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Swivel Joint
Finished length2,400 mm
Locate this hose

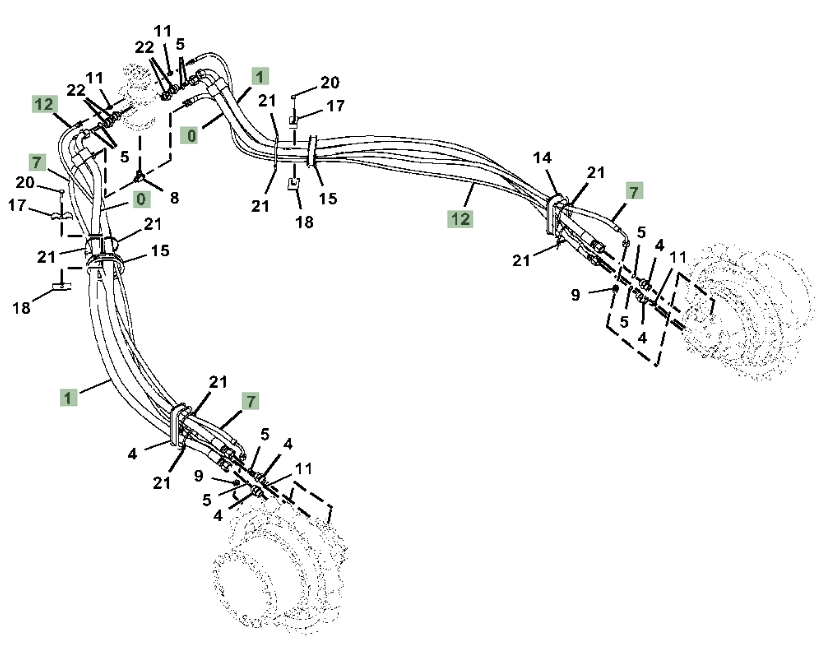

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4635305 before removing the hose.
Repair specifications
- Part number
- 4635305
- Diagram pipe number
- 1
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN25;4SH-16;34.5Mpa
- Finished length
- 2,400 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 2
