Individual hose record
FF528607 Hose Repair Specifications
Excavator · Hitachi · ZX370F-FE-6N · Hydraulic Pump
Finished length600 mm
Locate this hose

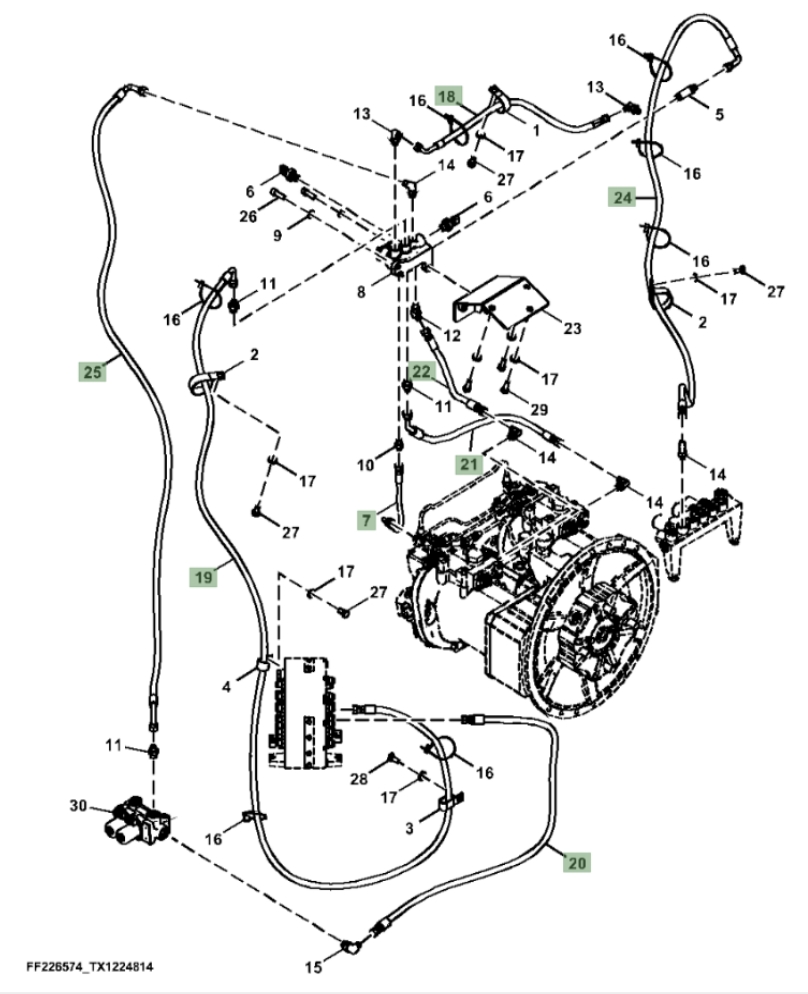

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number FF528607 before removing the hose.
Repair specifications
- Part number
- FF528607
- Diagram pipe number
- 21
- Installation route
- 液压泵~电磁阀(液压泵)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
