Case CX210B Hose Length & Fitting Data
Case CX210B has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ1306 | 550 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ14910 | 800 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | KHJ11580 | 1,350 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ11570 | 1,300 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KRJ10740 | 760 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2181 | 580 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ11520 | 900 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2327 | 1,550 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2248 | 3,000 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2342 | 380 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ11540 | 1,450 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ14920 | 1,850 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2148 | 550 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KBJ2809 | 450 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KRJ10710 | 780 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KHJ11140 | 550 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | KHJ2350 | 520 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2166 | 2,300 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ11590 | 1,400 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ14900 | 2,600 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KRJ10750 | 650 mm | High | Published |

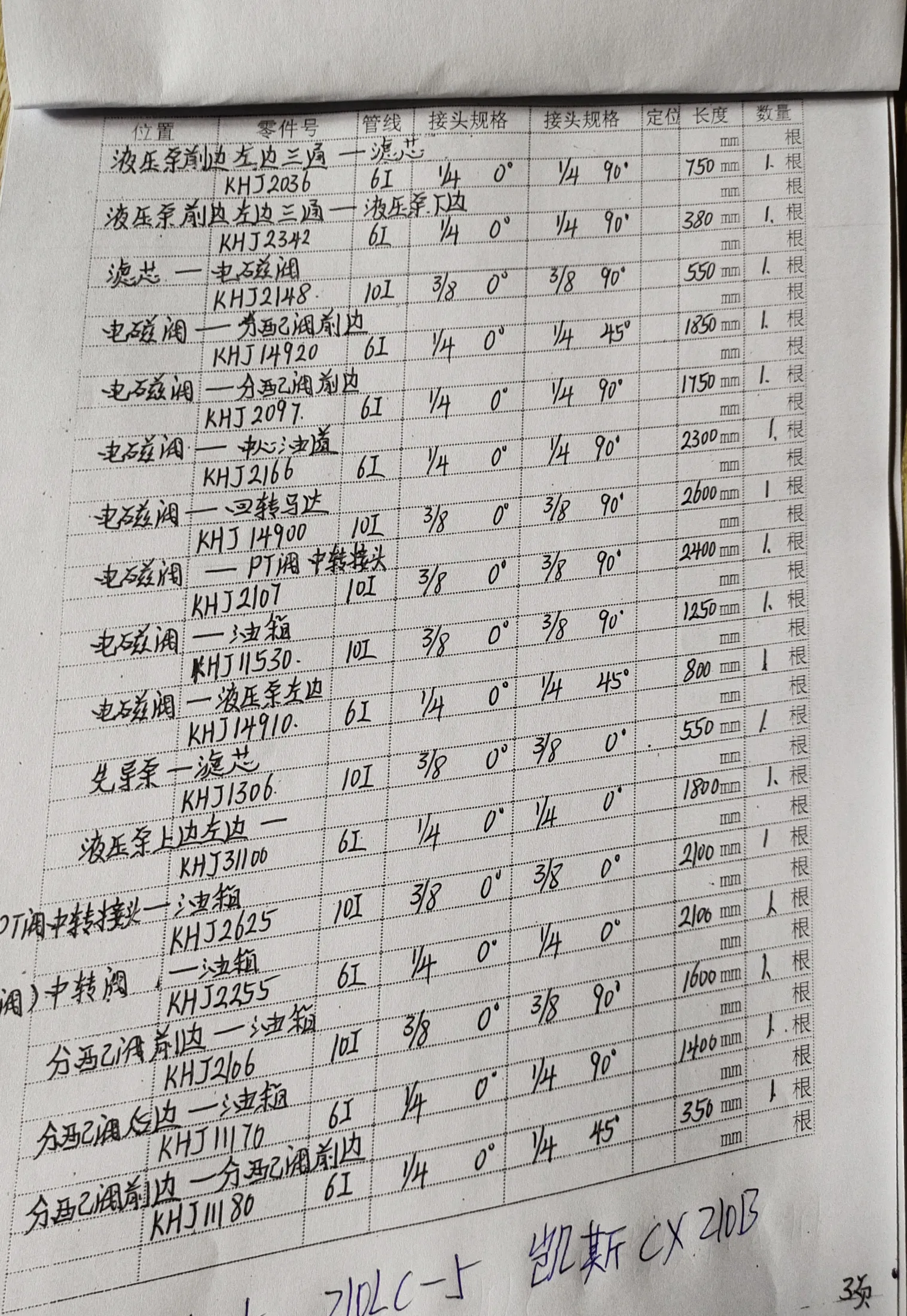

View sanitized source page — Handwritten field sheet 3 of 5

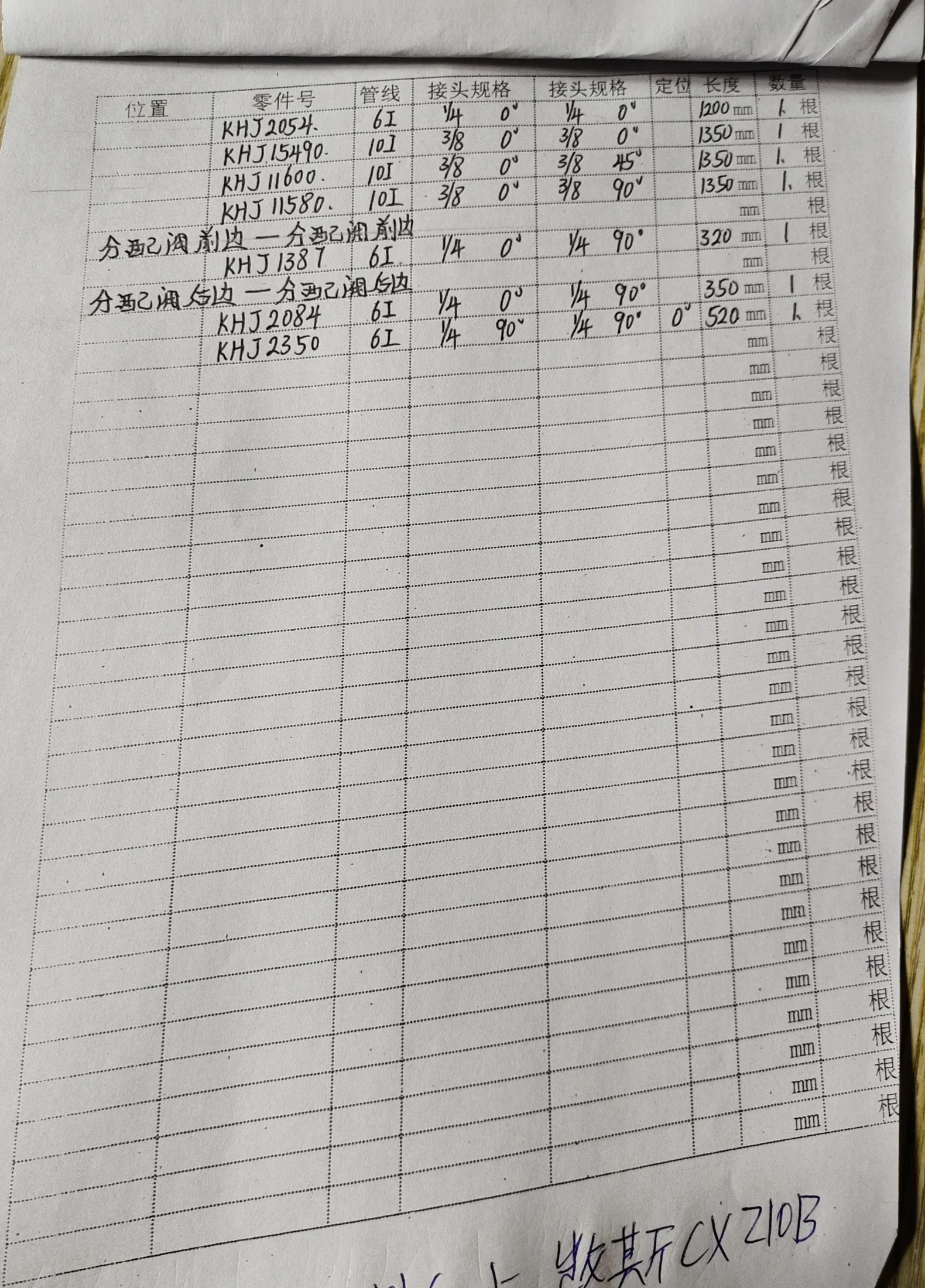

View sanitized source page — Handwritten field sheet 5 of 5

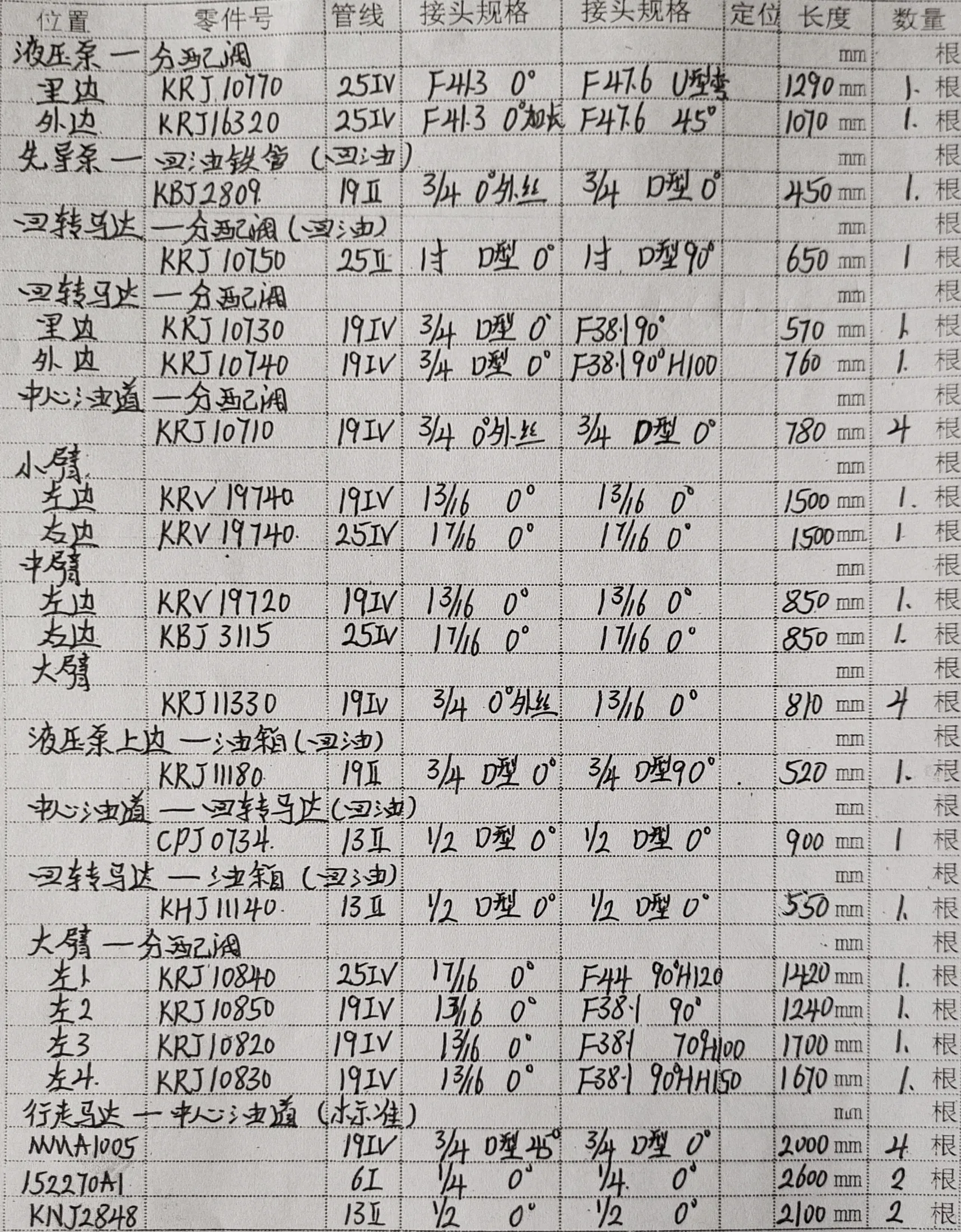

View sanitized source page — Handwritten field sheet 4 of 5

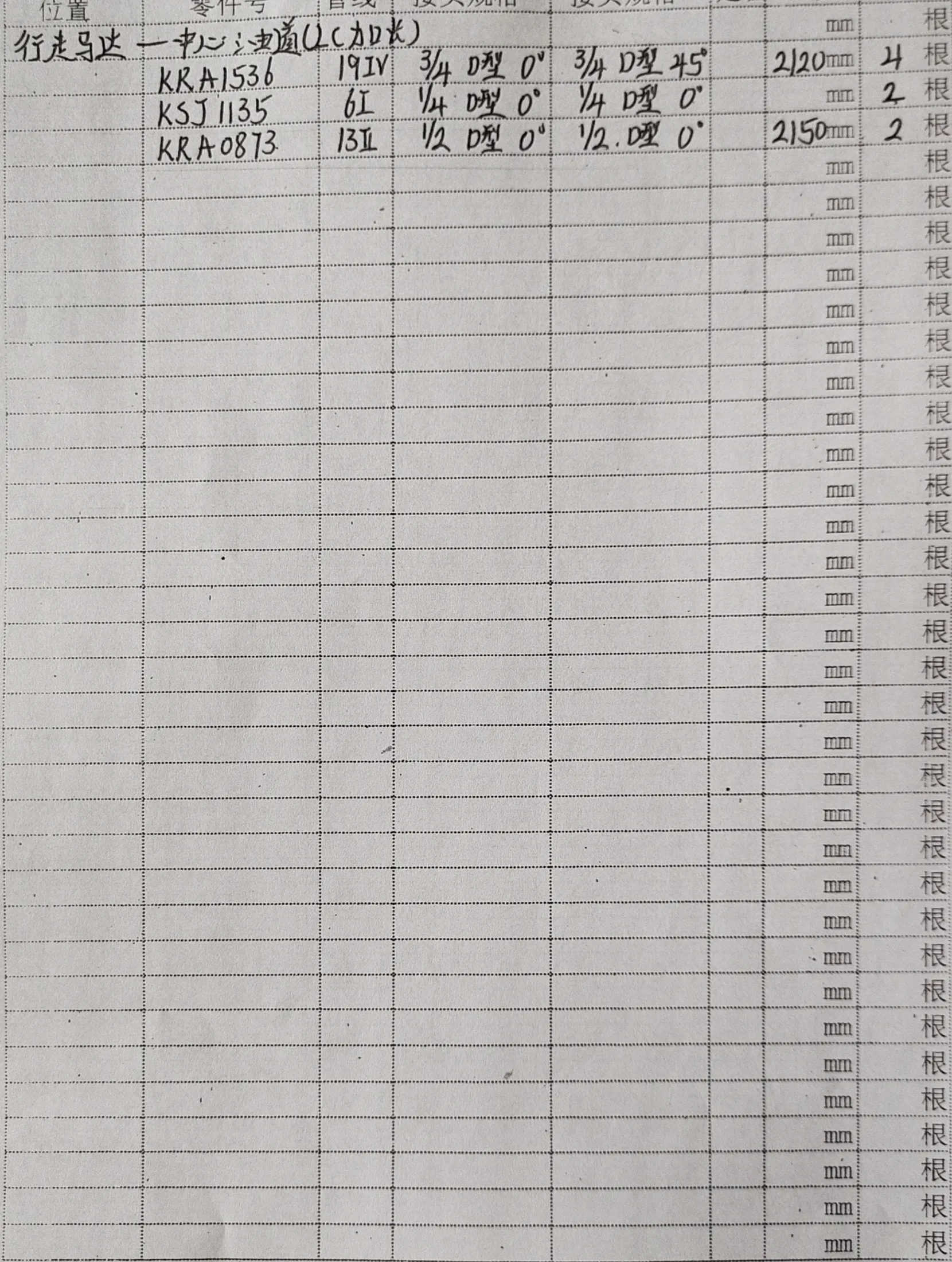

View sanitized source page — Handwritten field sheet 1 of 5

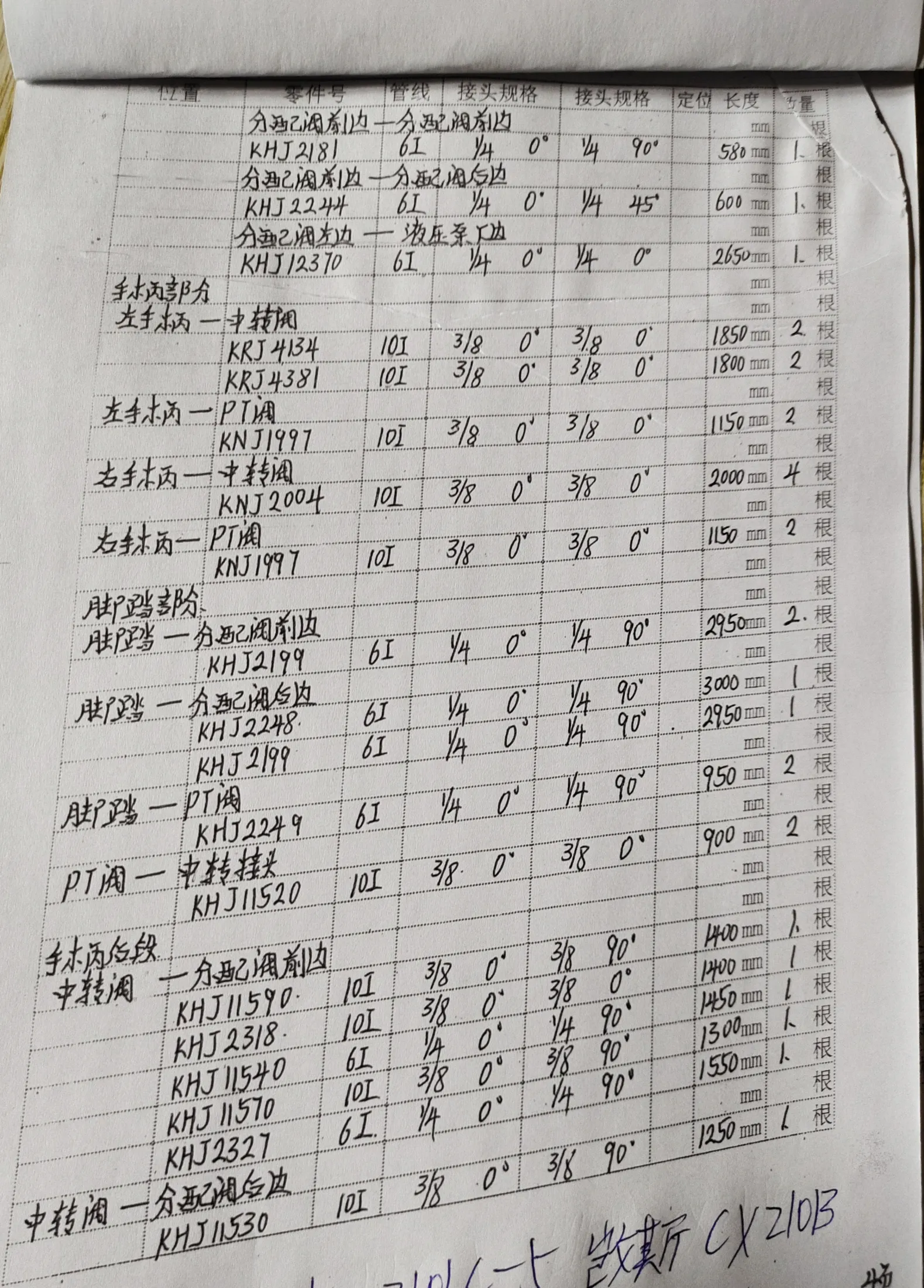

View sanitized source page — Handwritten field sheet 2 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 1,400 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 580 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,000 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 780 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- 英制外螺纹平面密封
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 800 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 1,350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,300 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 450 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- 英制外螺纹平面密封
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,300 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,600 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 1,550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,450 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 760 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 550 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 520 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 650 mm
- Specification
- DN25;2SN-16;16.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
