Case CX290B Hose Length & Fitting Data
Case CX290B has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration

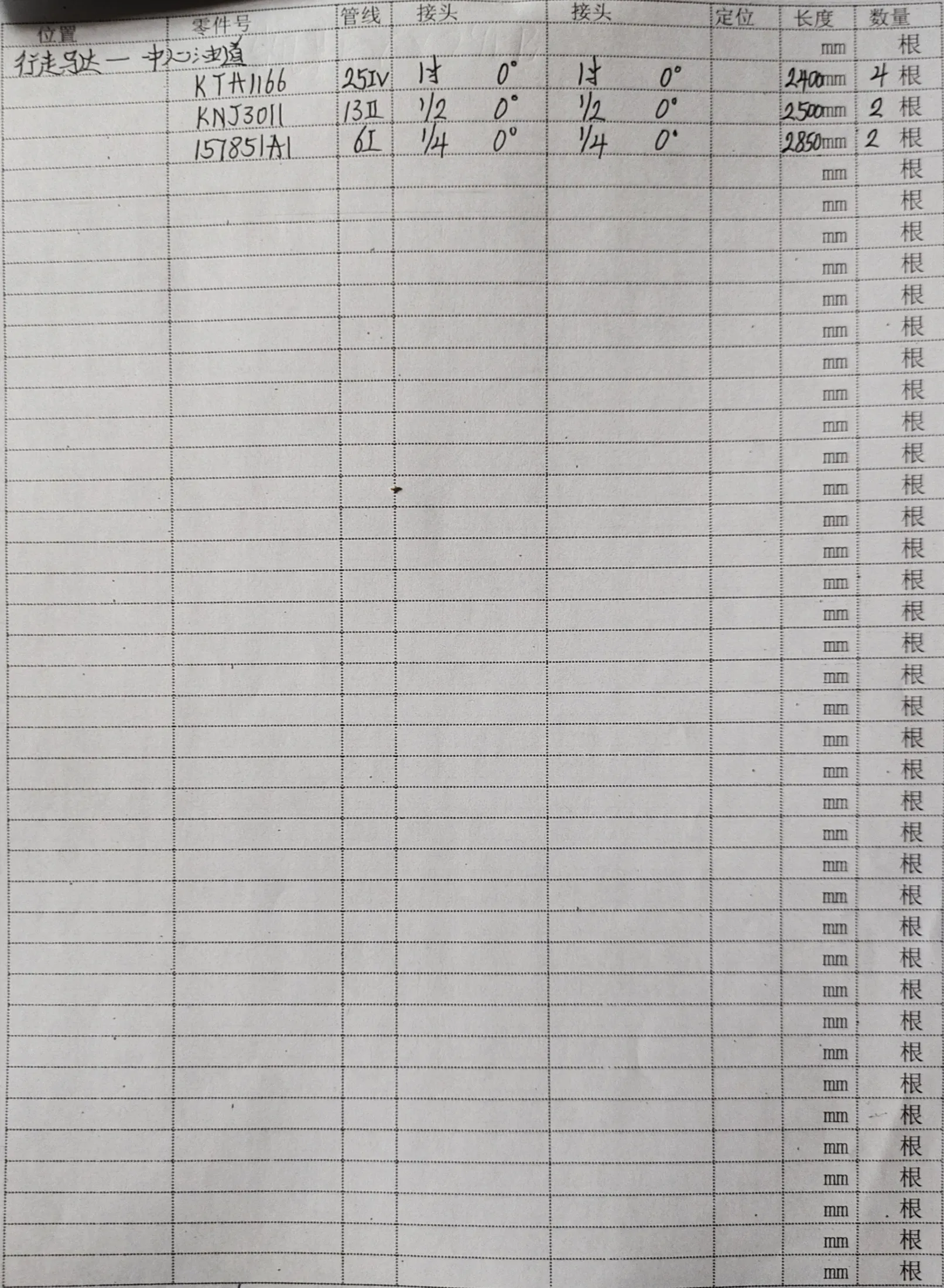

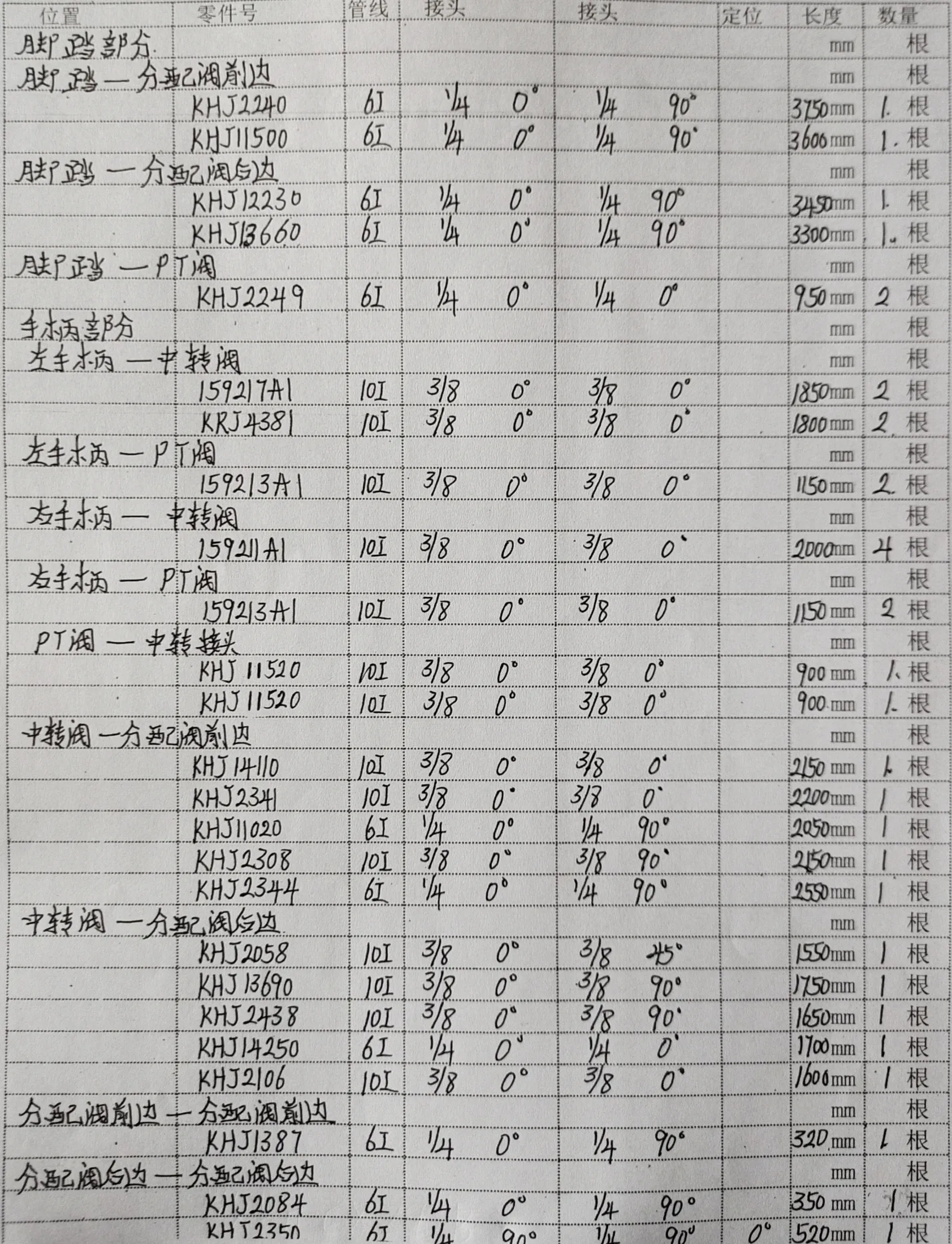

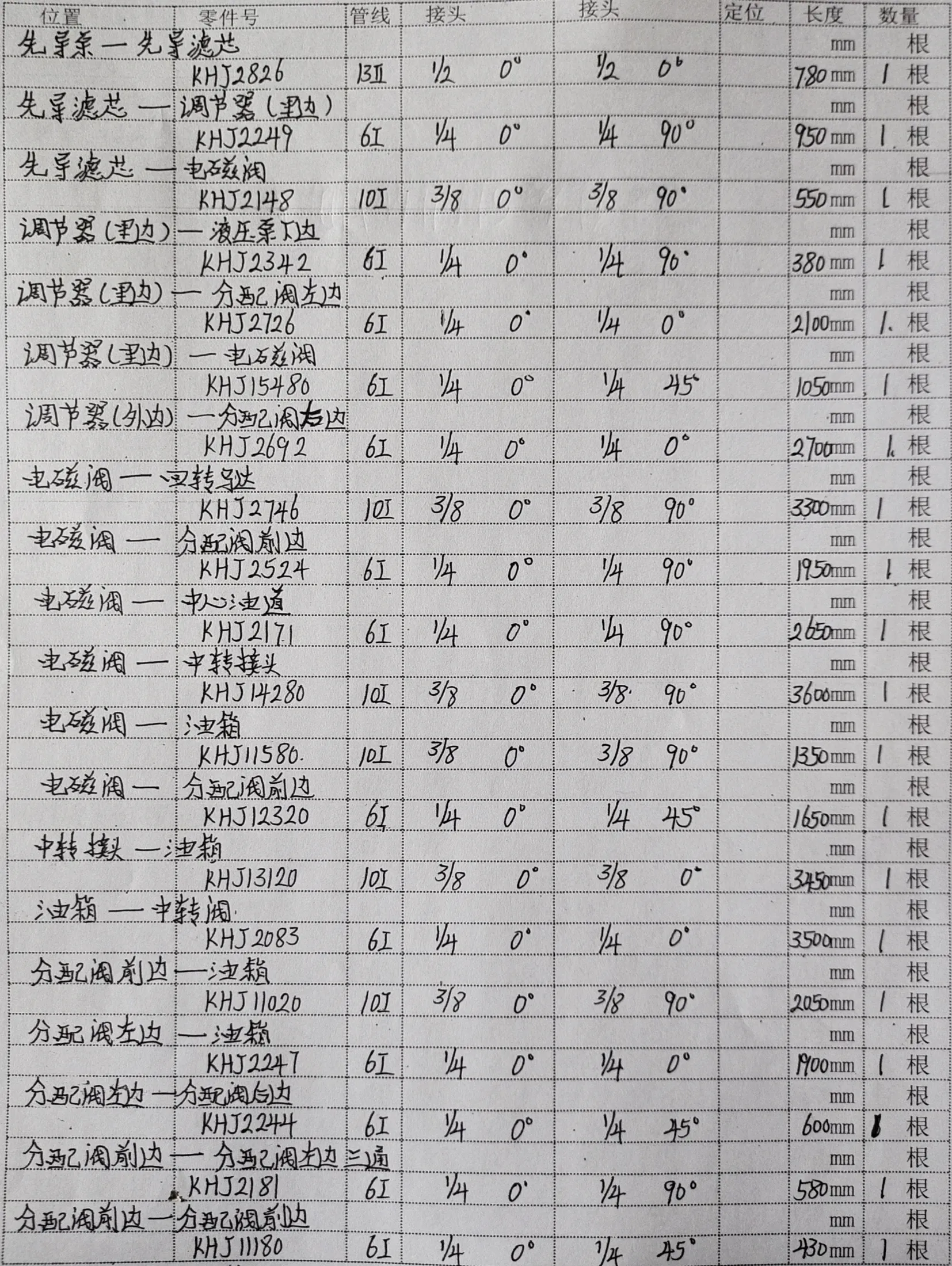

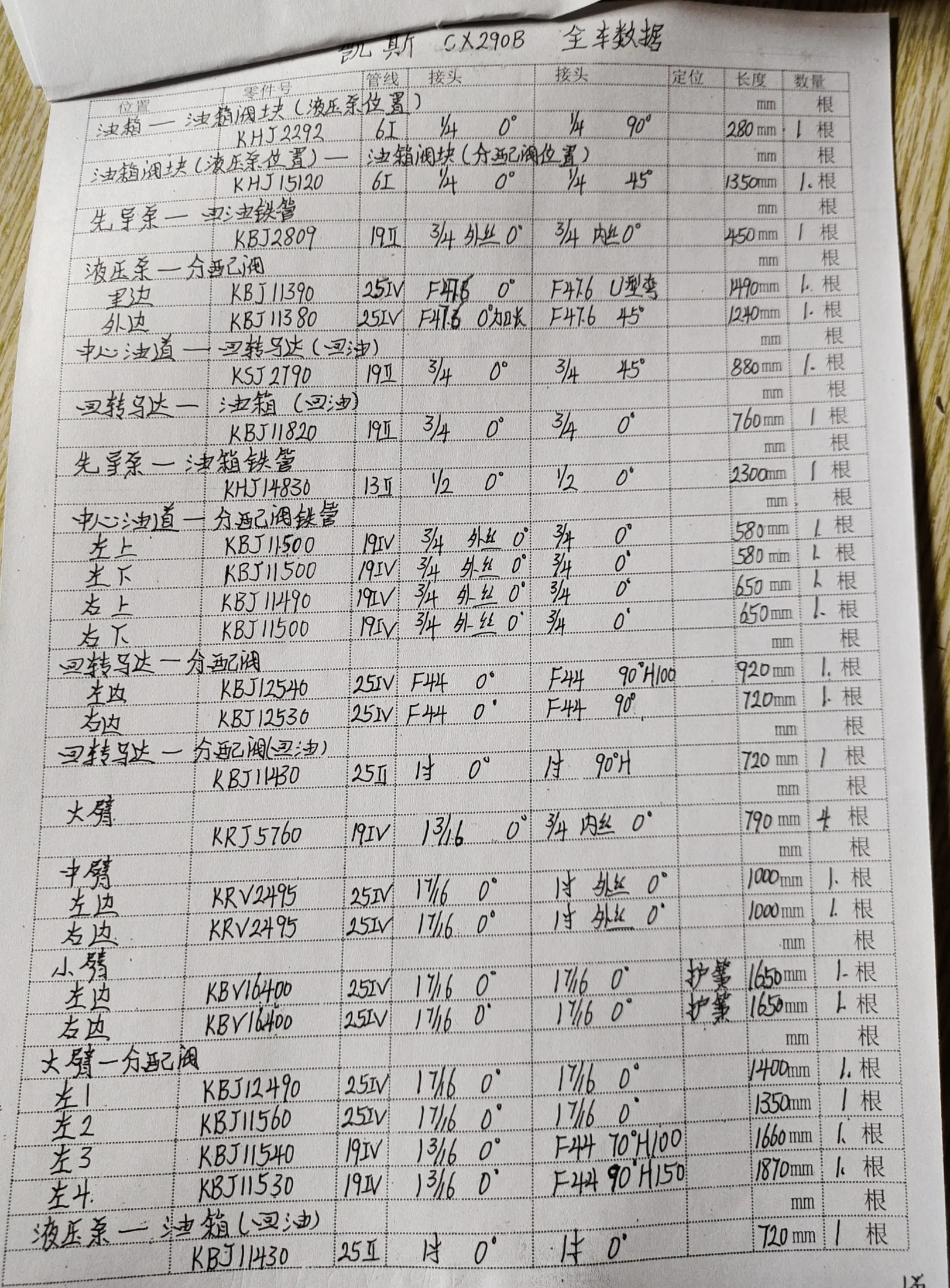

Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ13690 | 1,750 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ11520 | 900 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ2084 | 350 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ2438 | 1,650 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ2344 | 2,550 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ1387 | 320 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KBJ12530 | 720 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KBJ11540 | 1,660 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2746 | 3,300 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2083 | 3,500 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ2058 | 1,550 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2342 | 380 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ12230 | 3,450 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2148 | 550 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ14280 | 3,600 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KHJ11520 | 900 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KBJ11530 | 1,870 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KRJ5760 | 790 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2524 | 1,950 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2692 | 2,700 mm | High | Published |
View sanitized source page — Handwritten field sheet 2 of 4
View sanitized source page — Handwritten field sheet 4 of 4
View sanitized source page — Handwritten field sheet 1 of 4
View sanitized source page — Handwritten field sheet 3 of 4
Shareable individual records
Hose Length and Fitting List
- Length
- 1,550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 720 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- Light-series flangeChinese source: 法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 3,500 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 3,450 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,600 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,660 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 70°法兰-轻型
- Length
- 900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 320 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 790 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹平面密封
- Length
- 550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,300 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,870 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 2,700 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,750 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,650 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
