- Length
- 1,350 mm
- Specification
- DN19;1SN-12;10.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
Hydraulic line repair data
Case CX300B Hose Length & Fitting Data
Case CX300B has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 2 of 5 | Part number length exact | 157851A1 | 2,850 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KRH10330 | 1,350 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 159213A1 | 1,150 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ12230 | 3,450 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ15480 | 1,050 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KRJ4381 | 1,800 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | KTA1166 | 2,400 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2247 | 1,900 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2084 | 350 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2342 | 380 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2438 | 1,650 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | KNJ3011 | 2,500 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | KHJ2344 | 2,550 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2181 | 580 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KSJ2790 | 880 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2826 | 780 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | KHJ2106 | 1,600 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | KHJ2524 | 1,950 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | KHJ14830 | 2,300 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | KHJ2341 | 2,200 mm | High | Published |

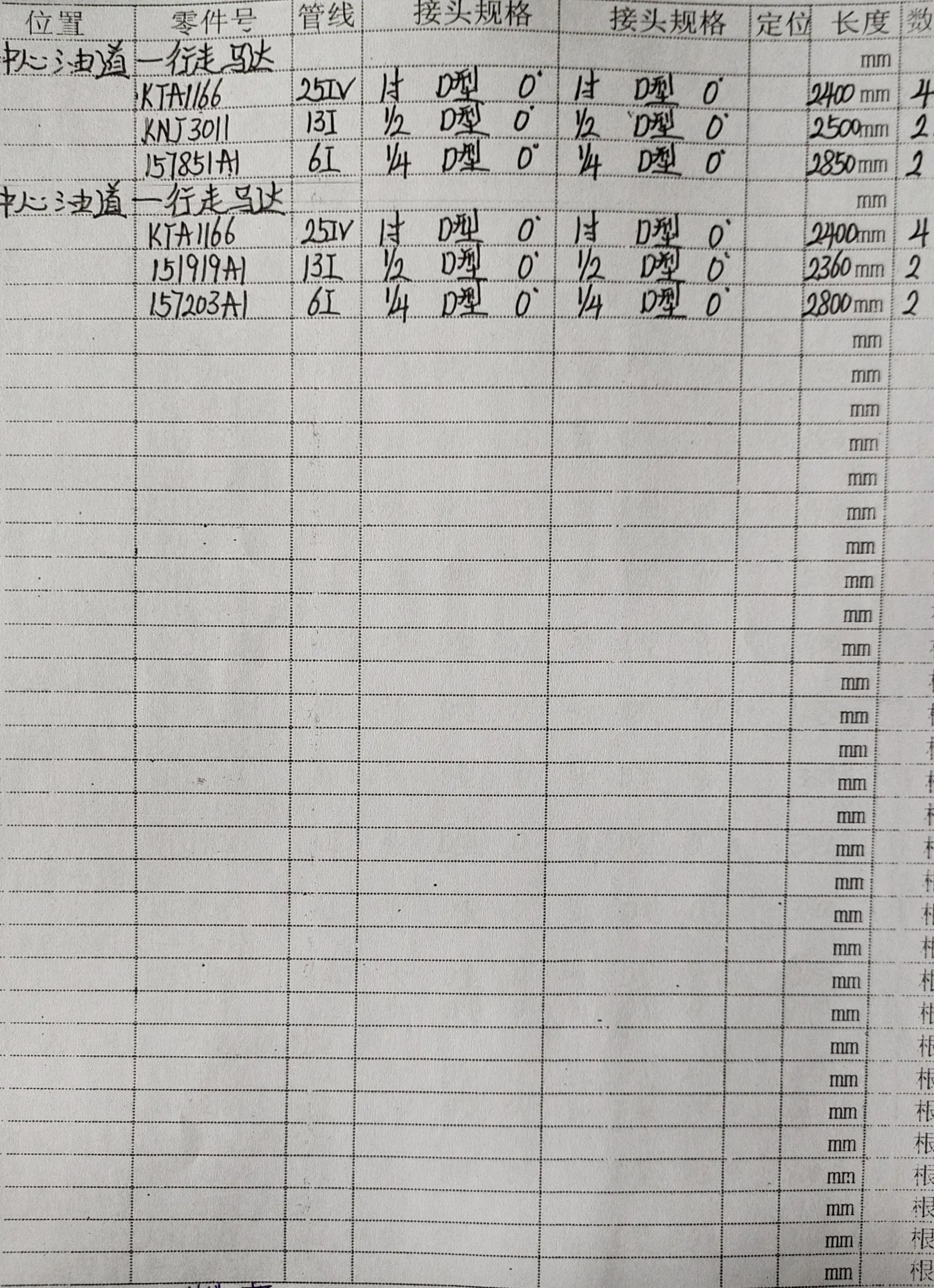

View sanitized source page — Handwritten field sheet 2 of 5

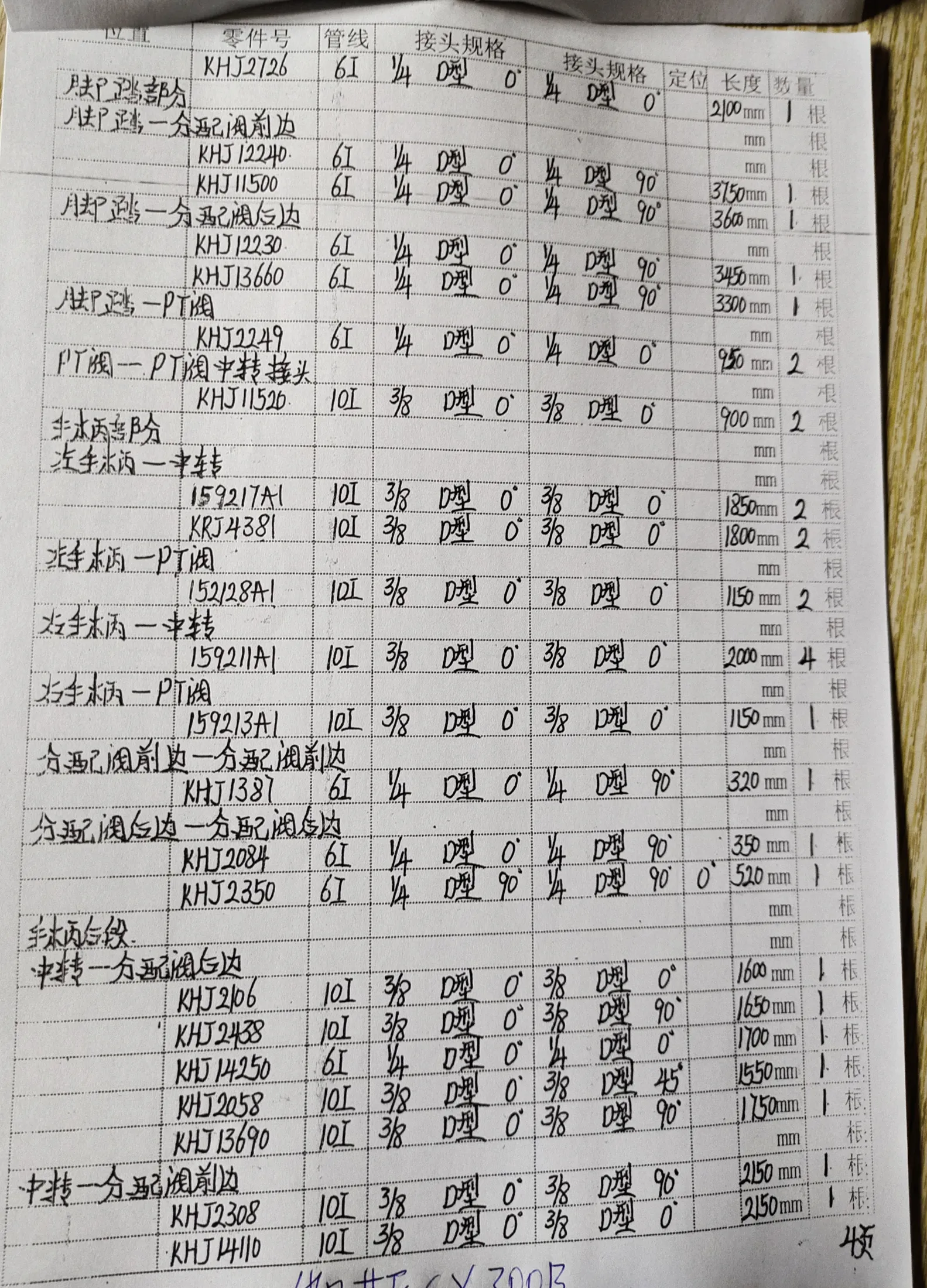

View sanitized source page — Handwritten field sheet 1 of 5

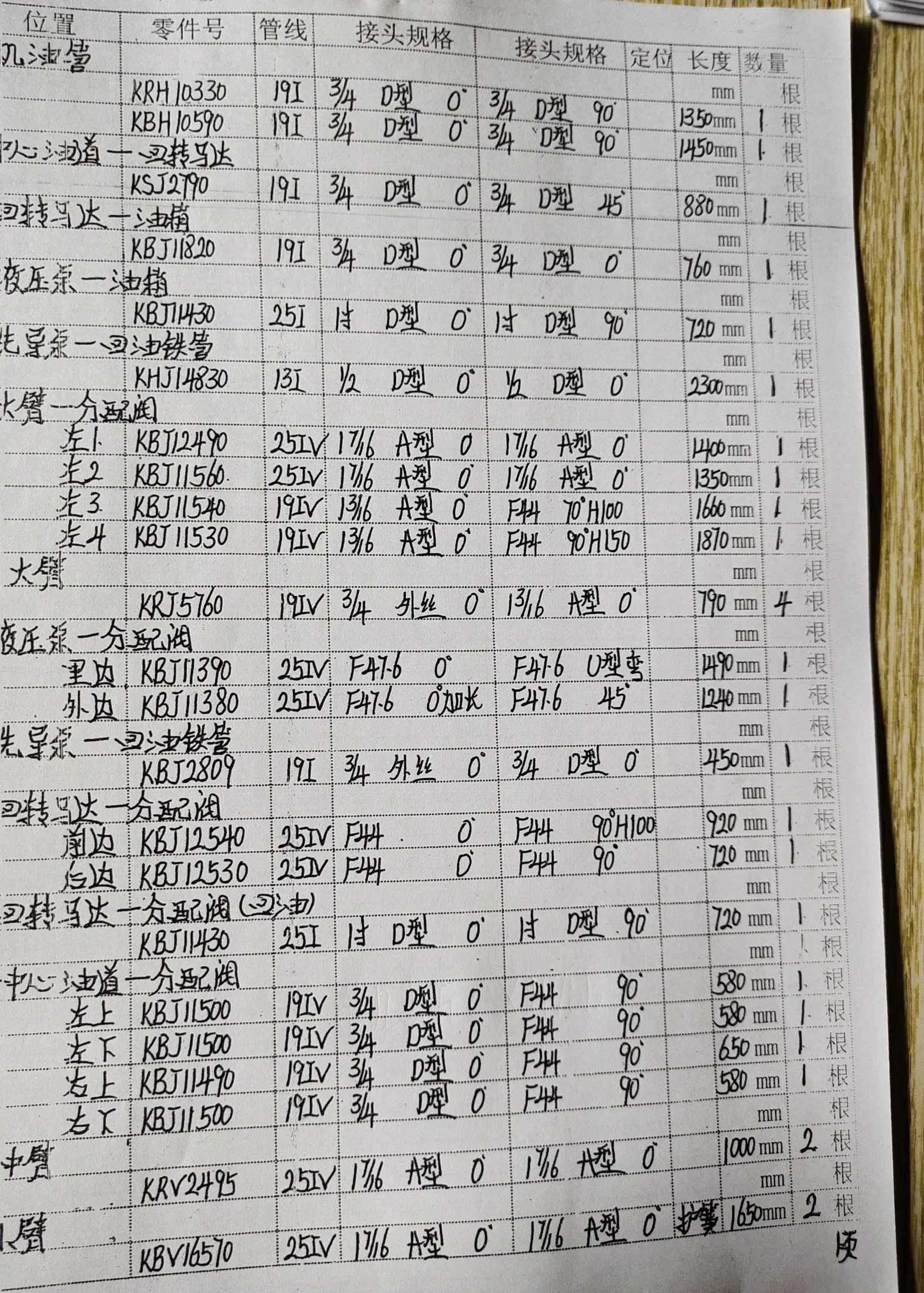

View sanitized source page — Handwritten field sheet 4 of 5

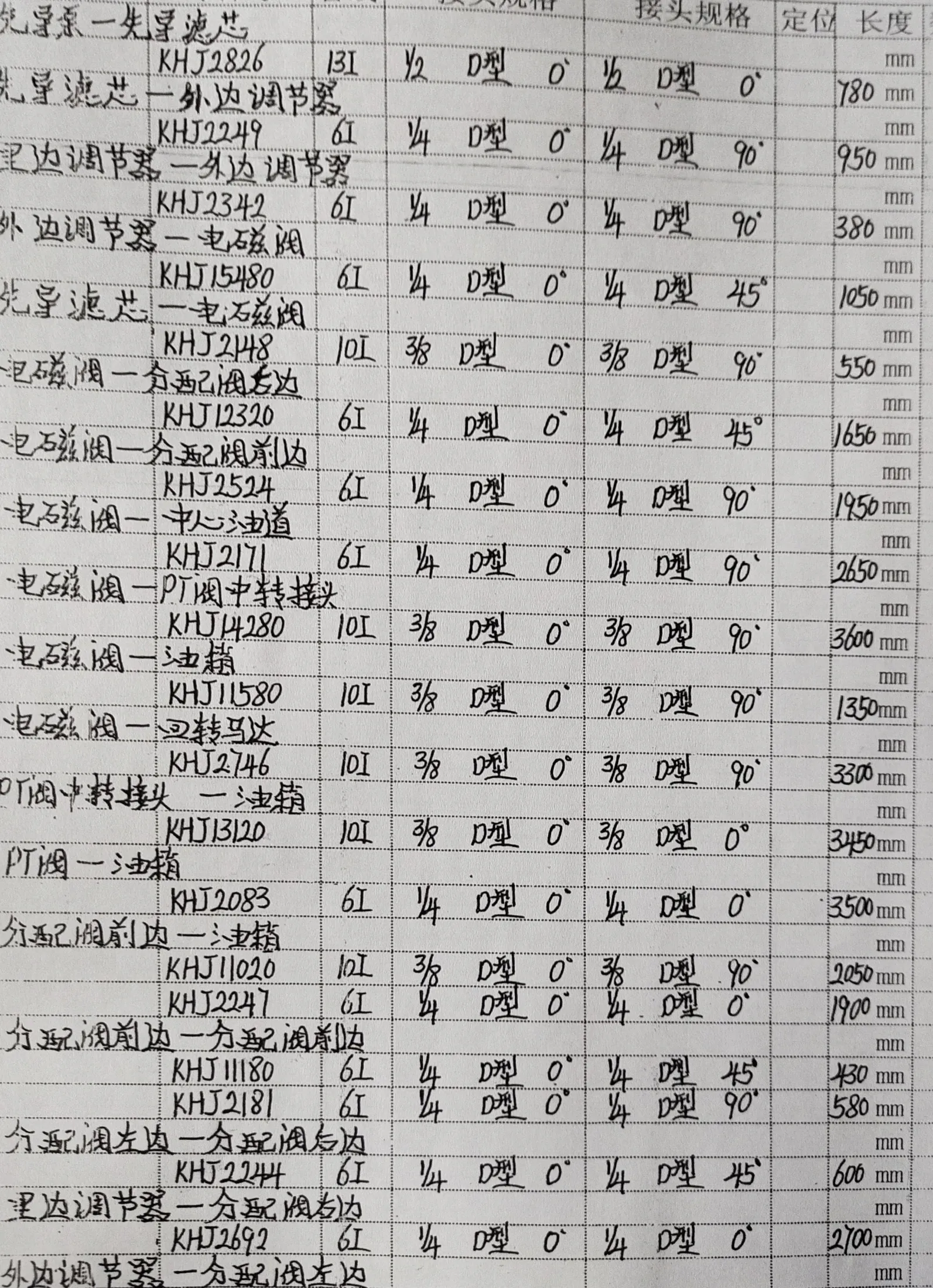

View sanitized source page — Handwritten field sheet 3 of 5

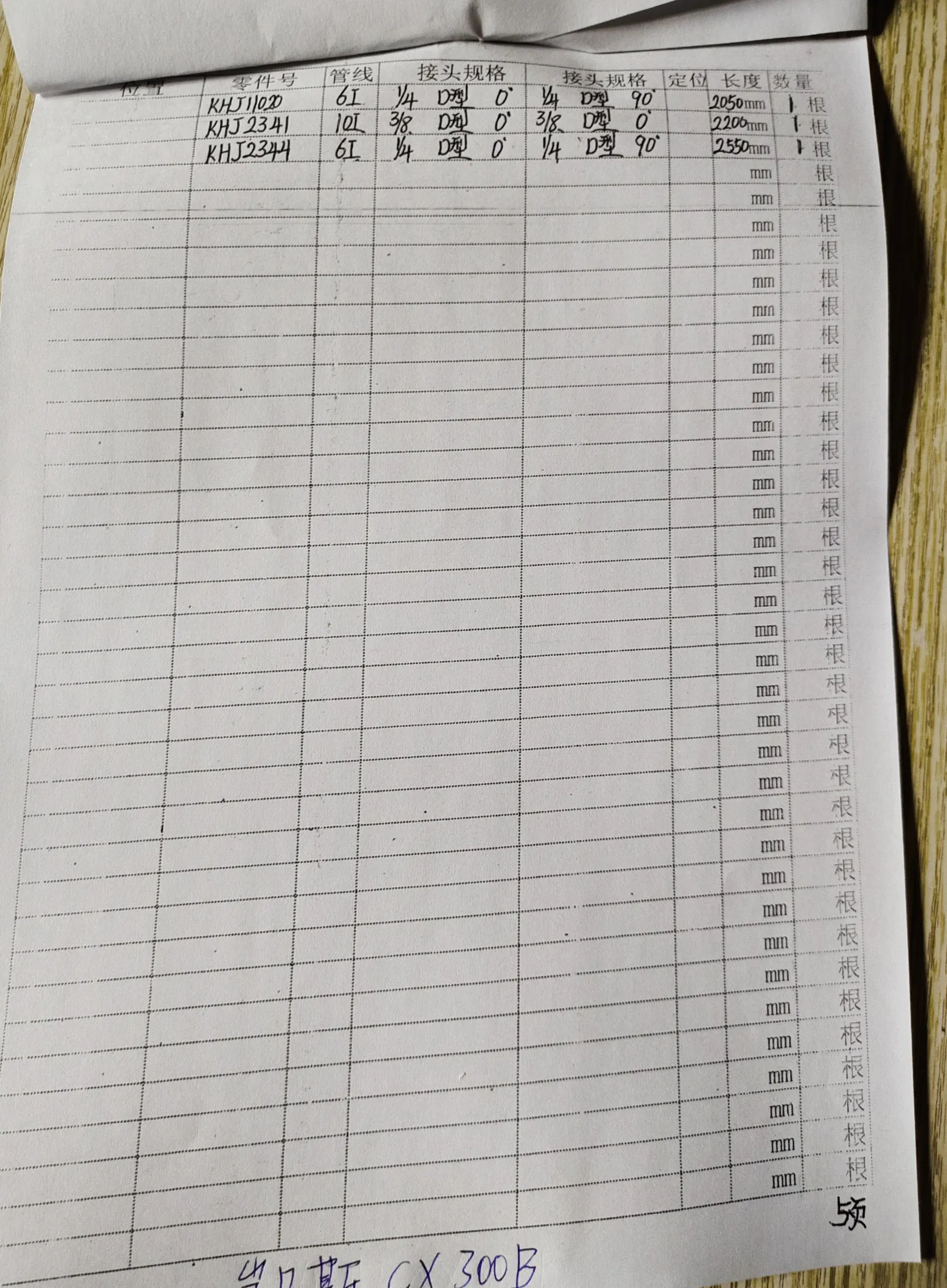

View sanitized source page — Handwritten field sheet 5 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 3,450 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 780 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,150 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
Diagram Pipe No. 14
KHJ14830
Installation route: Hydraulic pump → return steel line (hydraulic tank)Chinese source: 液压泵~回油铁管(液压油箱)
- Length
- 2,300 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,650 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 880 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 2,500 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,900 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,400 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 580 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,600 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,800 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,050 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 1,950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
