Hydraulic line repair data
Case CX360B Hose Length & Fitting Data
Case CX360B has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12650 | 680 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KTJ1641 | 1,700 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | 159044A1 | 1,700 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | 159355A1 | 380 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2044 | 350 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ18980 | 2,350 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KMJ1894 | 3,200 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KHJ2394 | 550 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ2342 | 380 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ2826 | 780 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KRJ4970 | 3,800 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12660 | 620 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ2084 | 350 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KAJ2189 | 2,200 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ19000 | 3,950 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ1766 | 3,200 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ2350 | 520 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12390 | 1,330 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ11500 | 3,600 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ16140 | 800 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | 152767A1 | 2,350 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KAJ2759 | 2,200 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KEJ0396 | 1,000 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ13130 | 1,180 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ13750 | 1,580 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ11520 | 900 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12400 | 1,740 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ1233 | 2,150 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12950 | 1,660 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KSJ12400 | 1,740 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ2048 | 750 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | 166180A1 | 2,850 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ2249 | 950 mm | High | Published |

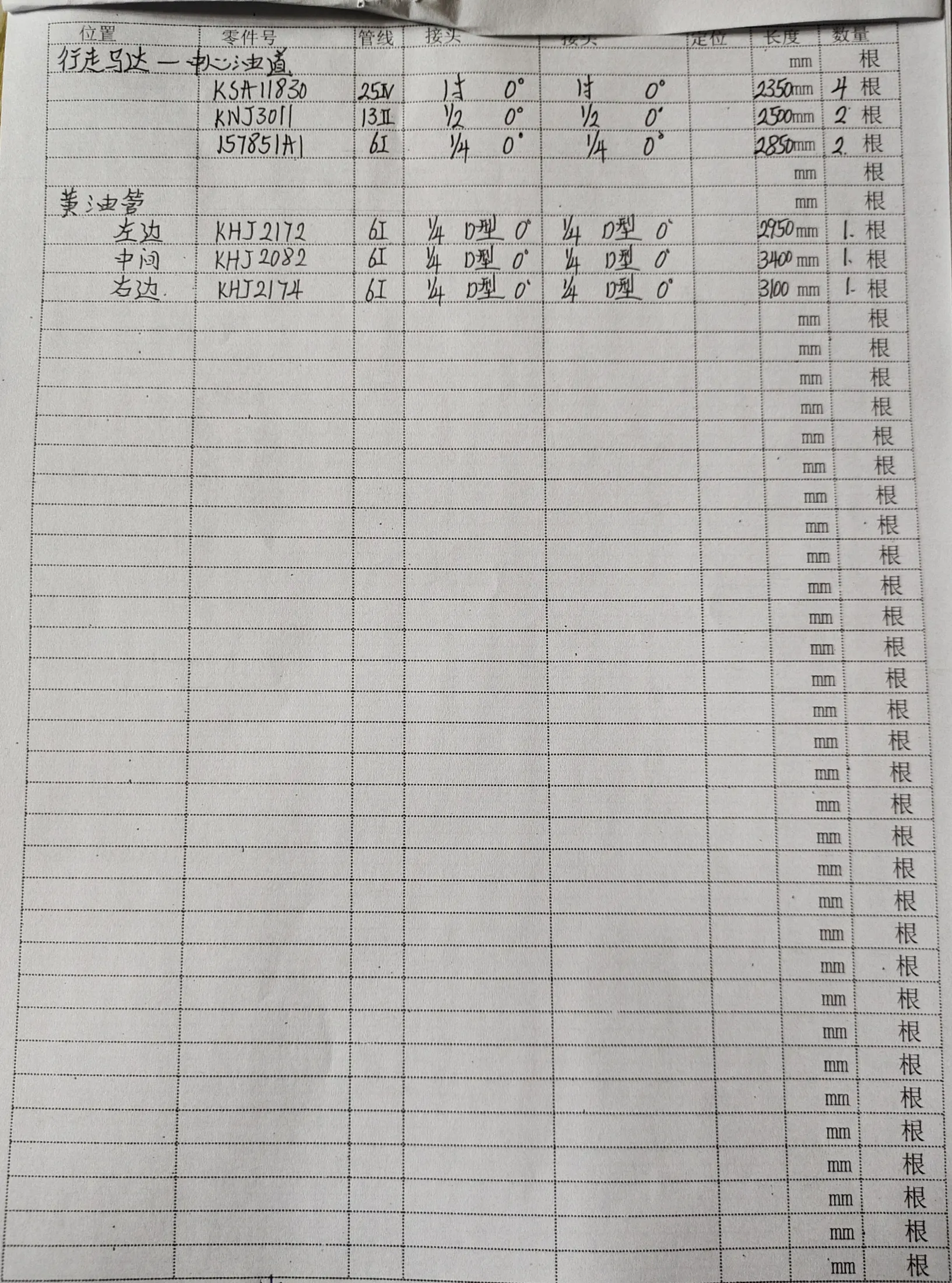

View sanitized source page — Handwritten field sheet 1 of 4

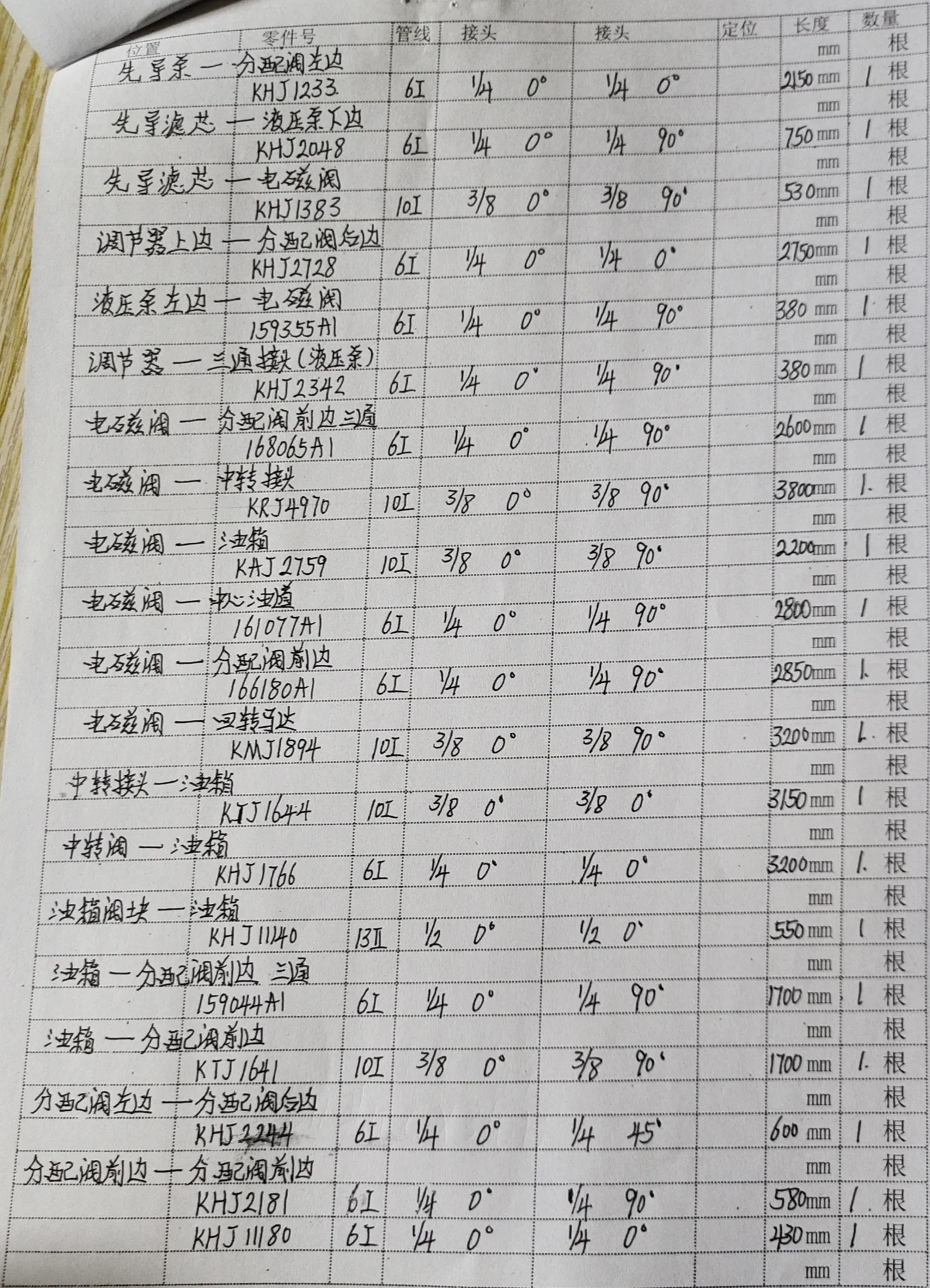

View sanitized source page — Handwritten field sheet 4 of 4

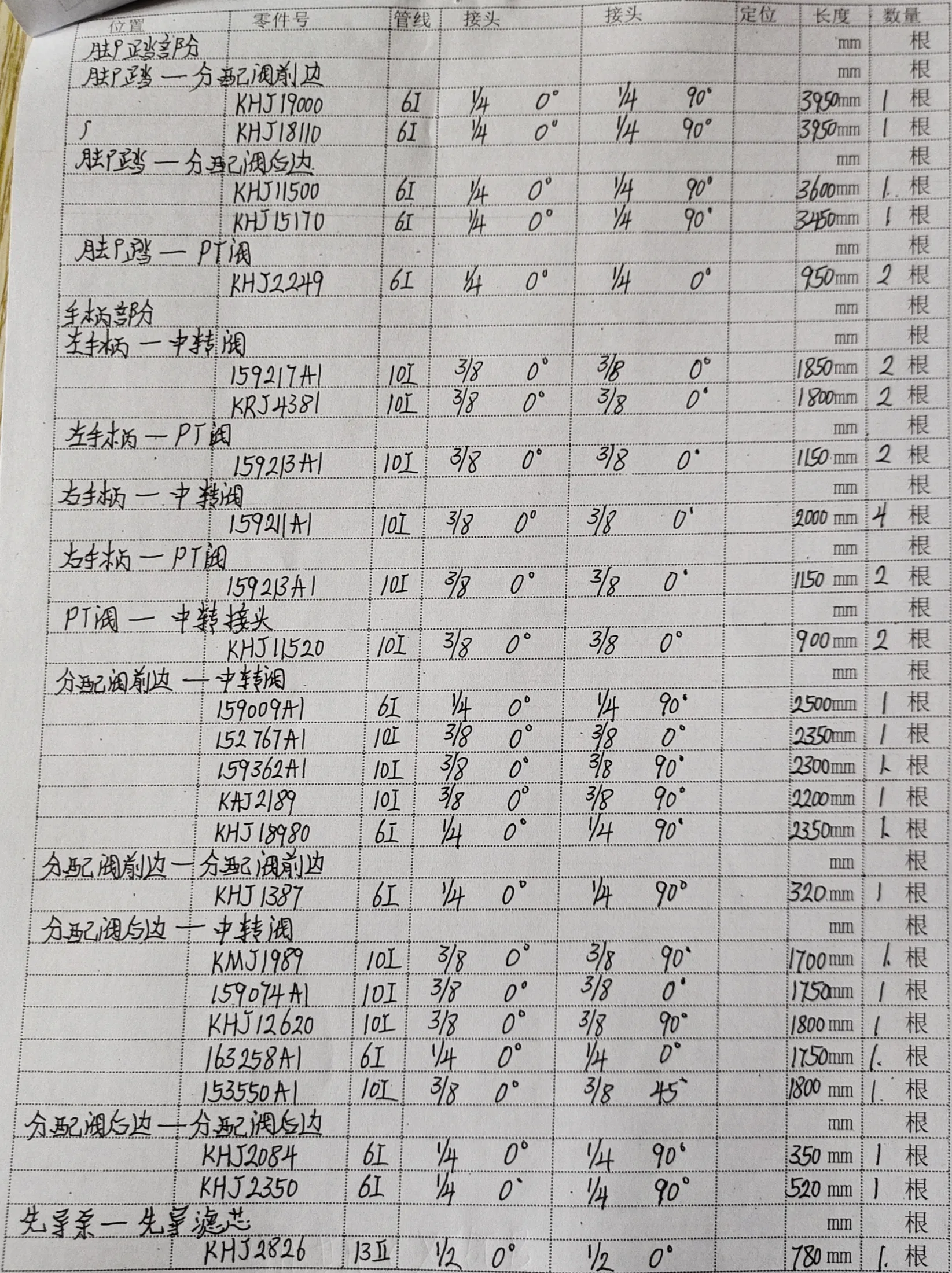

View sanitized source page — Handwritten field sheet 3 of 4

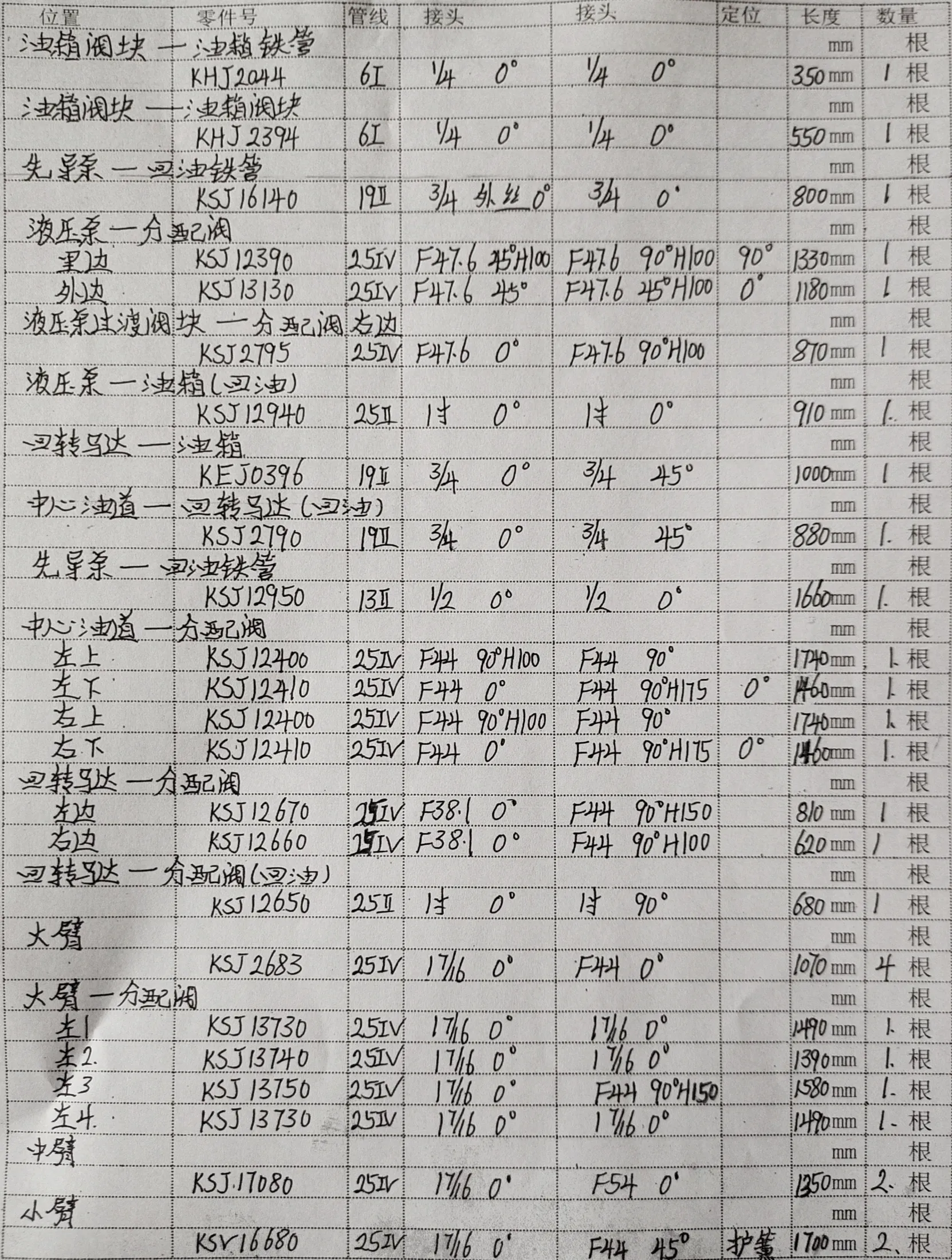

View sanitized source page — Handwritten field sheet 2 of 4
Shareable individual records
Hose Length and Fitting List
- Length
- 620 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- Light-series flangeChinese source: 法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 3,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,580 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,330 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 45° heavy-series flangeChinese source: 45°法兰-重型
- Right fitting
- 90° heavy-series flangeChinese source: 90°法兰-重型
- Length
- 1,180 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 45° heavy-series flangeChinese source: 45°法兰-重型
- Right fitting
- 45° heavy-series flangeChinese source: 45°法兰-重型
- Length
- 3,200 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 520 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,150 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,700 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 680 mm
- Specification
- DN25;2SN-16;16.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,600 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 750 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,000 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 380 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 780 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,700 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,660 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 800 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- 英制外螺纹平面密封
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,740 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 2,350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 2,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 3,800 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
