Case CX470B Hose Length & Fitting Data
Case CX470B has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|

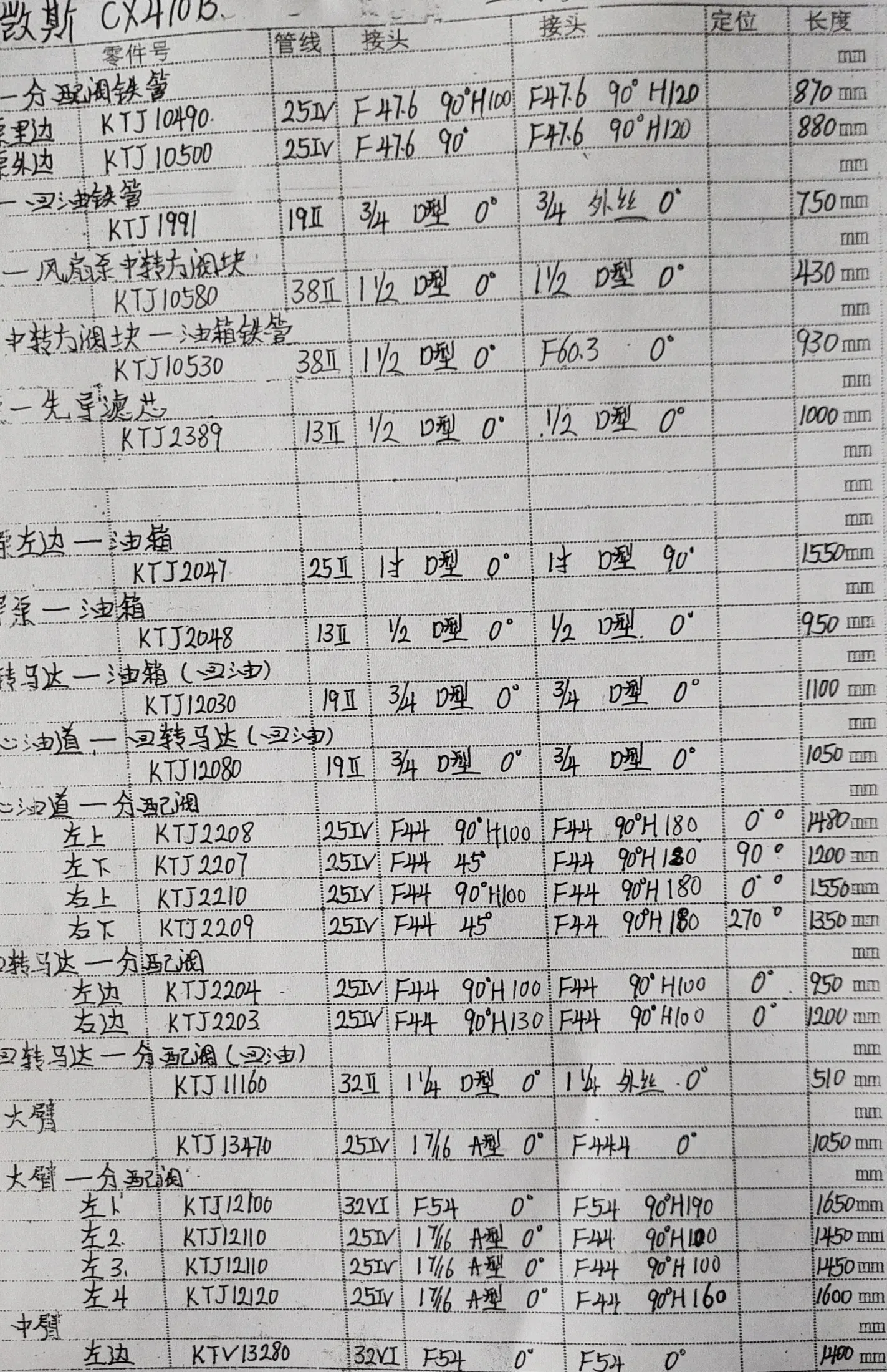

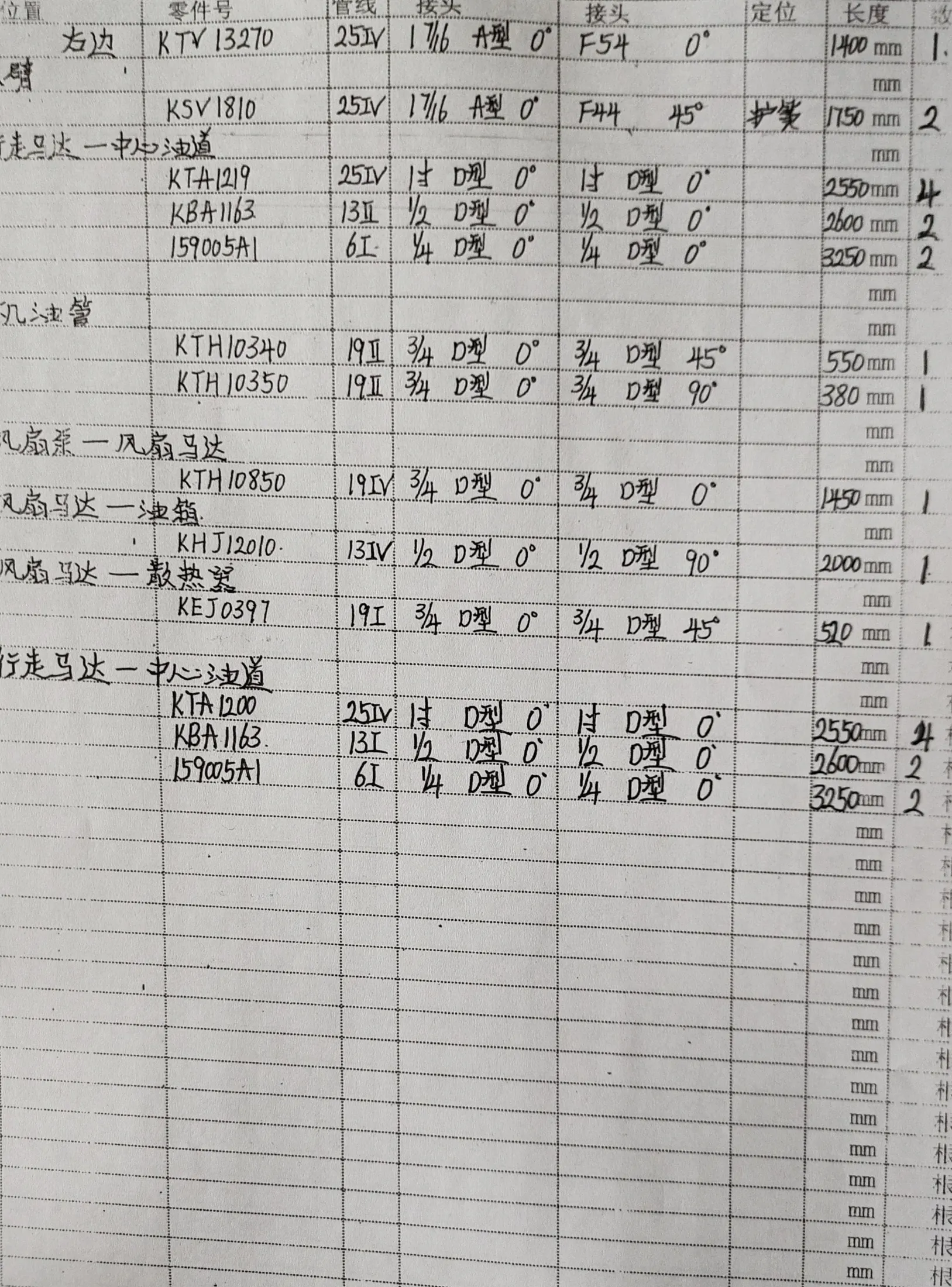

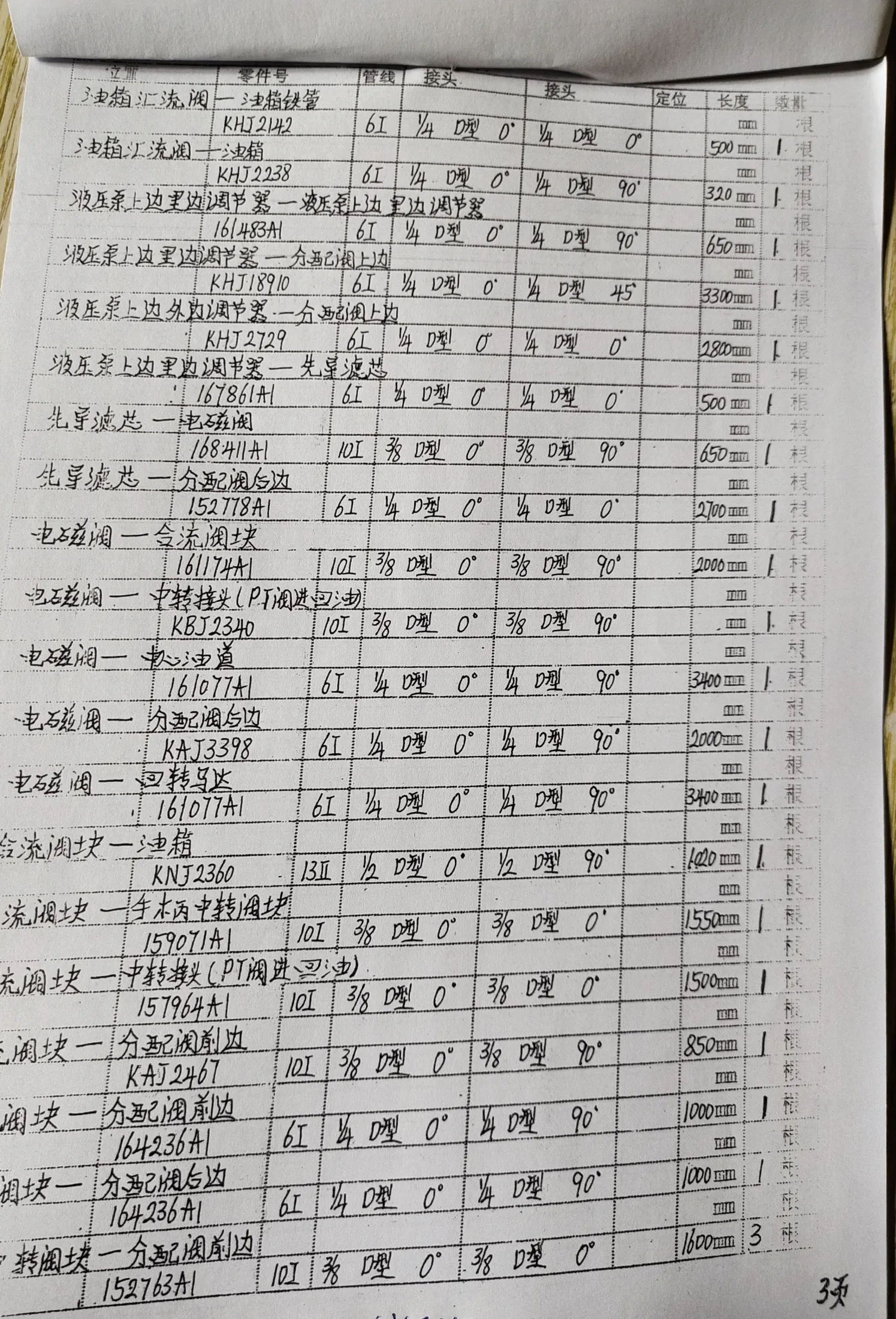

| Handwritten field sheet 1 of 4 | Part number length exact | KTJ2207 | 1,200 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KTJ2210 | 1,550 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KTH10850 | 1,450 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KTJ2204 | 950 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KEJ0397 | 520 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KTA1219 | 2,550 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ16300 | 3,650 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KNJ2360 | 1,020 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | 159005A1 | 3,250 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | 157964A1 | 1,500 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | KHJ11520 | 900 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KAJ2467 | 850 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | KHJ18910 | 3,300 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | 167861A1 | 500 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | 159211A1 | 2,000 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KTV13270 | 1,400 mm | High | Published |
| Handwritten field sheet 3 of 4 | Part number length exact | 159071A1 | 1,550 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KTJ10500 | 880 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KTJ12030 | 1,100 mm | High | Published |
| Handwritten field sheet 1 of 4 | Part number length exact | KTJ12080 | 1,050 mm | High | Published |
| Handwritten field sheet 4 of 4 | Part number length exact | 159074A1 | 1,850 mm | High | Published |
| Handwritten field sheet 2 of 4 | Part number length exact | KBA1163 | 2,600 mm | High | Published |
View sanitized source page — Handwritten field sheet 1 of 4
View sanitized source page — Handwritten field sheet 2 of 4
View sanitized source page — Handwritten field sheet 4 of 4
View sanitized source page — Handwritten field sheet 3 of 4
Shareable individual records
Hose Length and Fitting List
- Length
- 1,500 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,550 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,550 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 2,000 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,100 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 3,250 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 500 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,850 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 2,600 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 850 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,400 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeChinese source: 法兰-重型
- Length
- 900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 520 mm
- Specification
- DN19;1SN-12;10.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 3,300 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatChinese source: 45°英制内螺纹60°外锥
- Length
- 1,200 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 45°法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 880 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 90° heavy-series flangeChinese source: 90°法兰-重型
- Right fitting
- 90° heavy-series flangeChinese source: 90°法兰-重型
- Length
- 1,020 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 1,450 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 1,050 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 3,650 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 950 mm
- Specification
- DN25;4SP-16;32.5MPa
- Left fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
