- Length
- 1,300 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
Hydraulic line repair data
Caterpillar CAT®312C Hose Length & Fitting Data
Caterpillar CAT®312C has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 3 of 6 | Part number length exact | 176-4557 | 1,170 mm | High | Published |
| Handwritten field sheet 1 of 6 | Part number length exact | 187-7173 | 780 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 7Y-4193 | 2,500 mm | High | Published |
| Handwritten field sheet 4 of 6 | Part number length exact | 087-6583 | 2,530 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 4I-0769 | 2,850 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 176-4561 | 1,170 mm | High | Published |
| Handwritten field sheet 4 of 6 | Part number length exact | 4I-0772 | 3,550 mm | High | Published |
| Handwritten field sheet 1 of 6 | Part number length exact | 199-1689 | 960 mm | High | Published |
| Handwritten field sheet 2 of 6 | Part number length exact | 128-9166 | 540 mm | High | Published |
| Handwritten field sheet 1 of 6 | Part number length exact | 173-4739 | 980 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 176-4558 | 1,230 mm | High | Published |
| Handwritten field sheet 5 of 6 | Part number length exact | 087-4411 | 450 mm | High | Published |
| Handwritten field sheet 5 of 6 | Part number length exact | 194-0325 | 340 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 176-4561 | 1,170 mm | High | Published |
| Handwritten field sheet 3 of 6 | Part number length exact | 4I-0800 | 1,300 mm | High | Published |
| Handwritten field sheet 1 of 6 | Part number length exact | 179-7461 | 1,200 mm | High | Published |

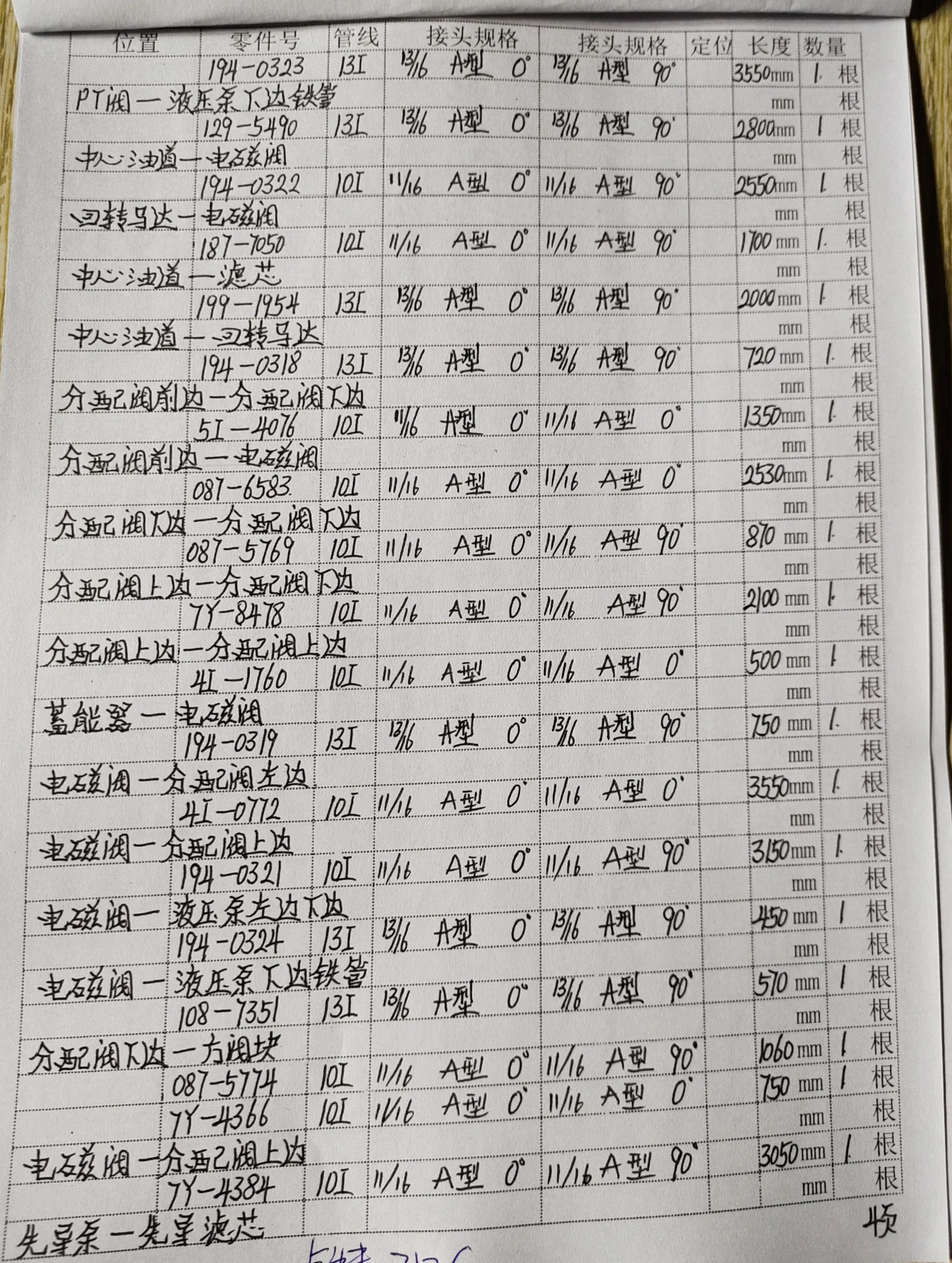

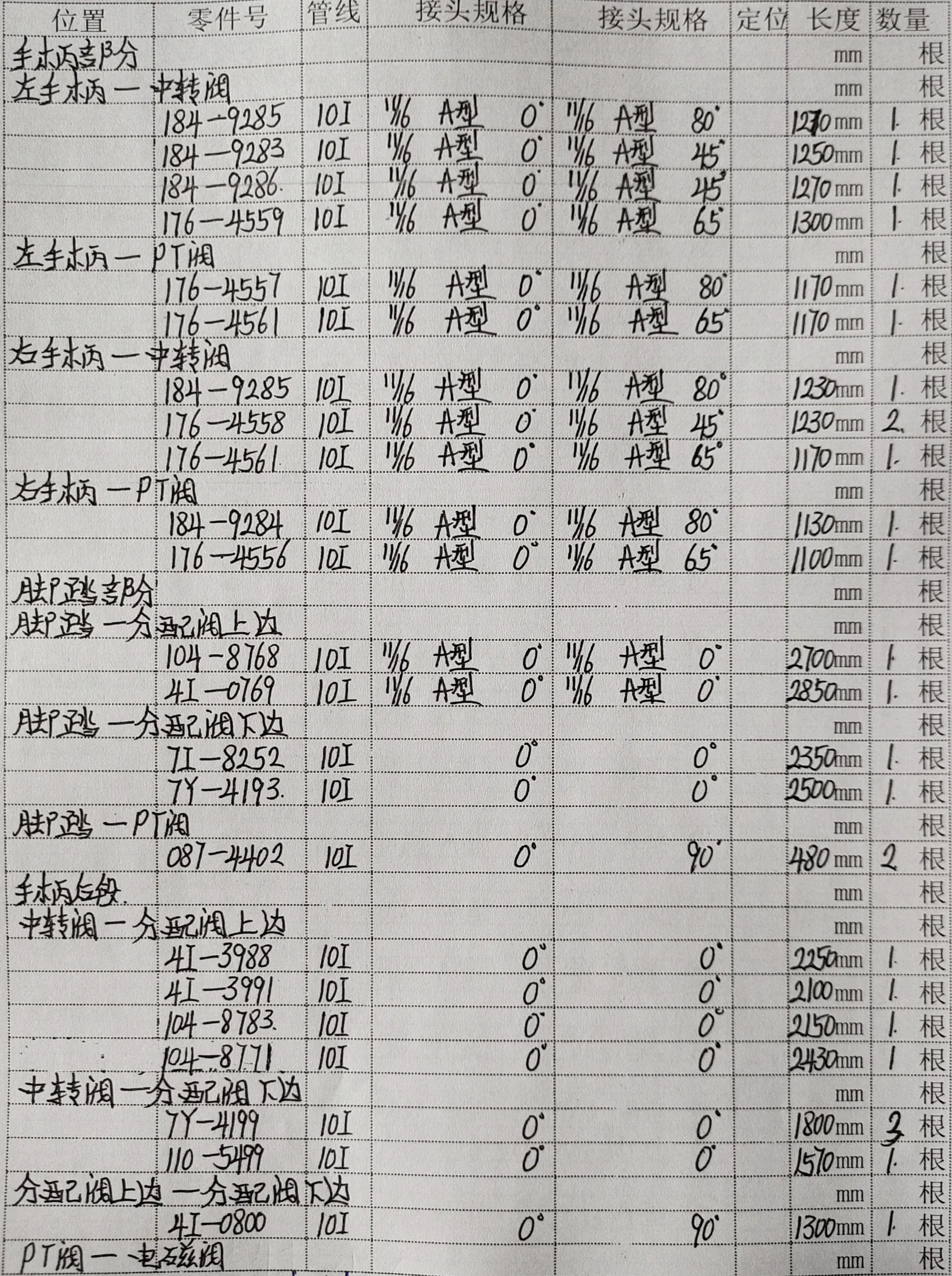

View sanitized source page — Handwritten field sheet 3 of 6

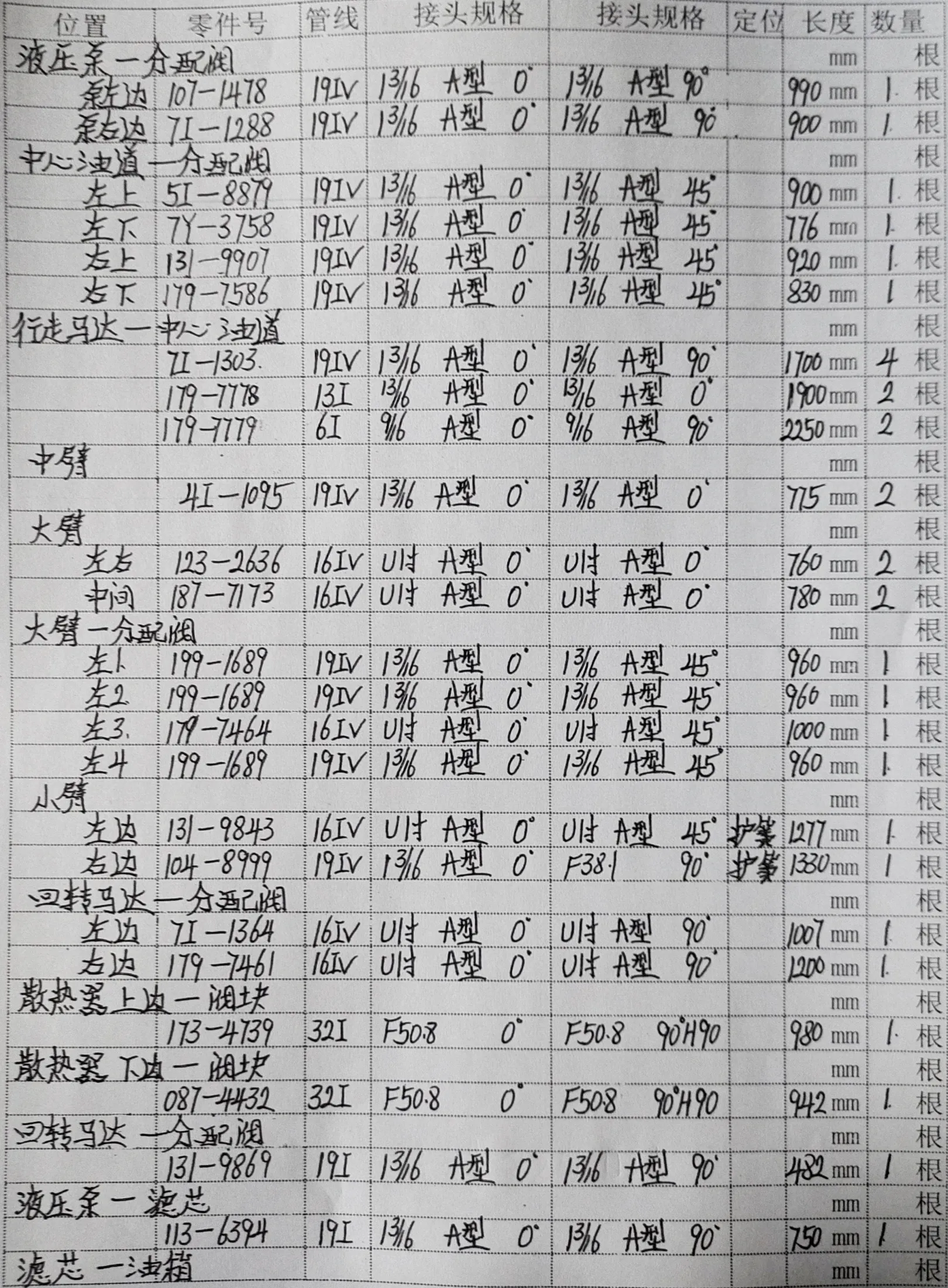

View sanitized source page — Handwritten field sheet 1 of 6

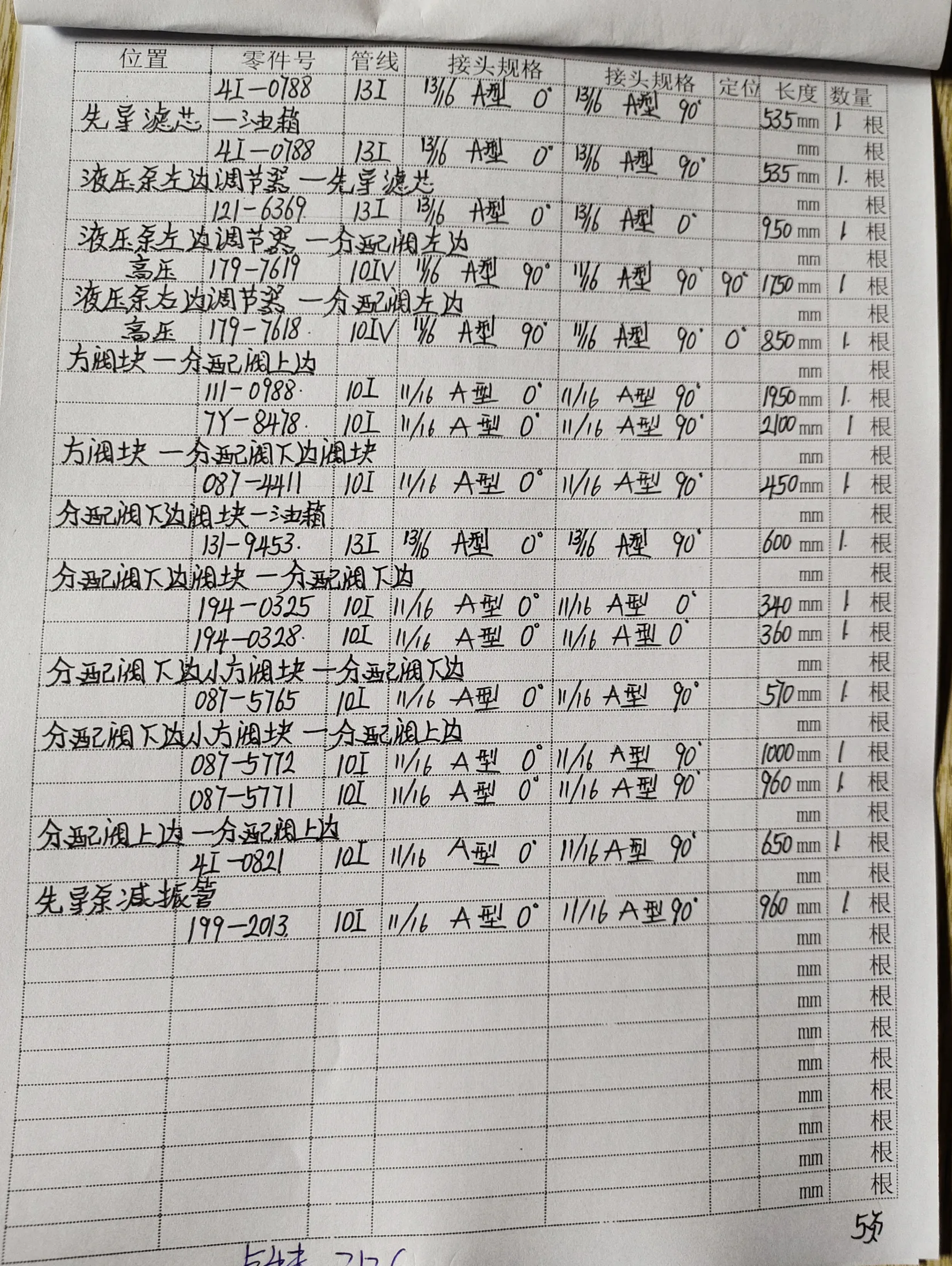

View sanitized source page — Handwritten field sheet 4 of 6

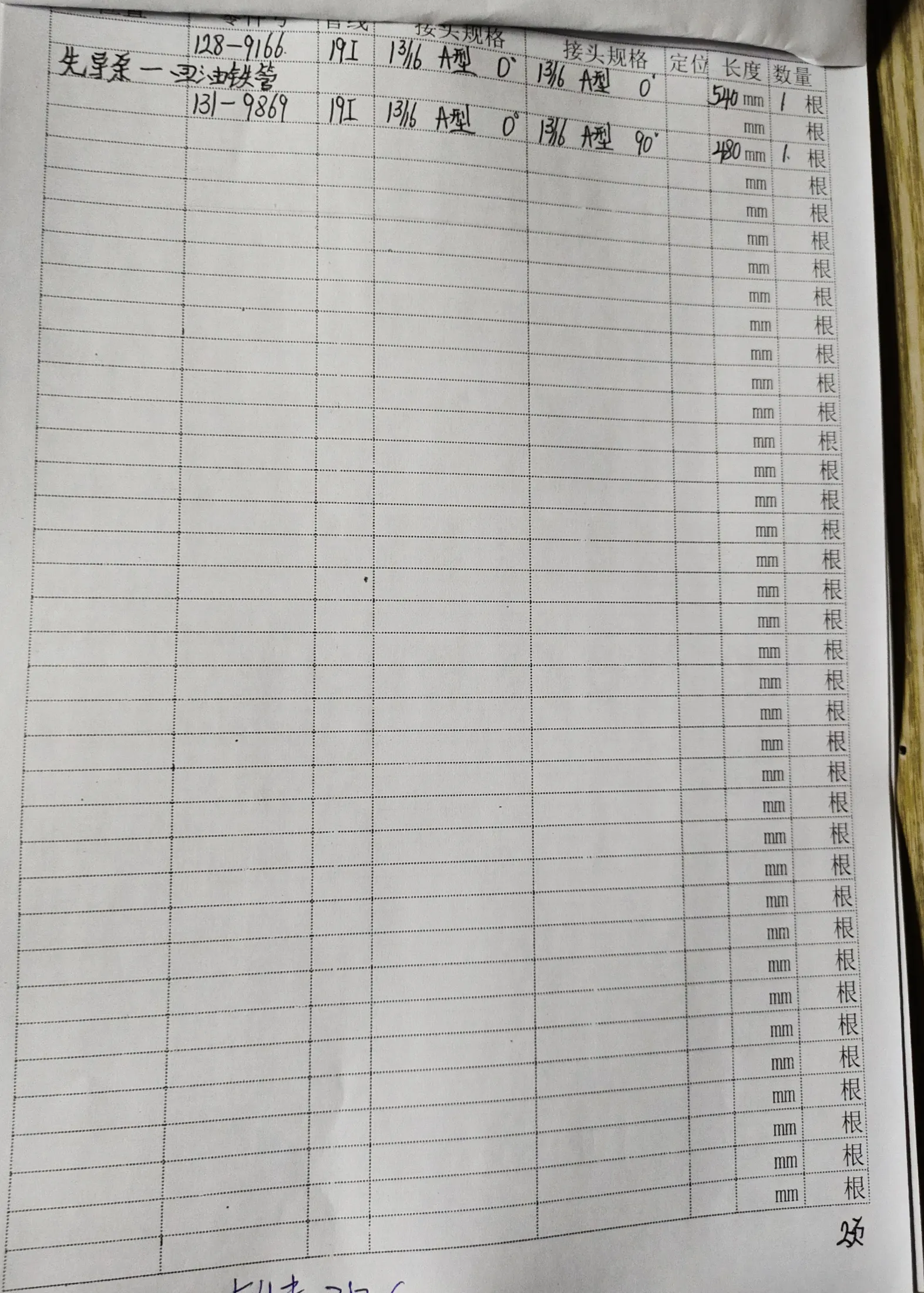

View sanitized source page — Handwritten field sheet 2 of 6
View sanitized source page — Handwritten field sheet 5 of 6

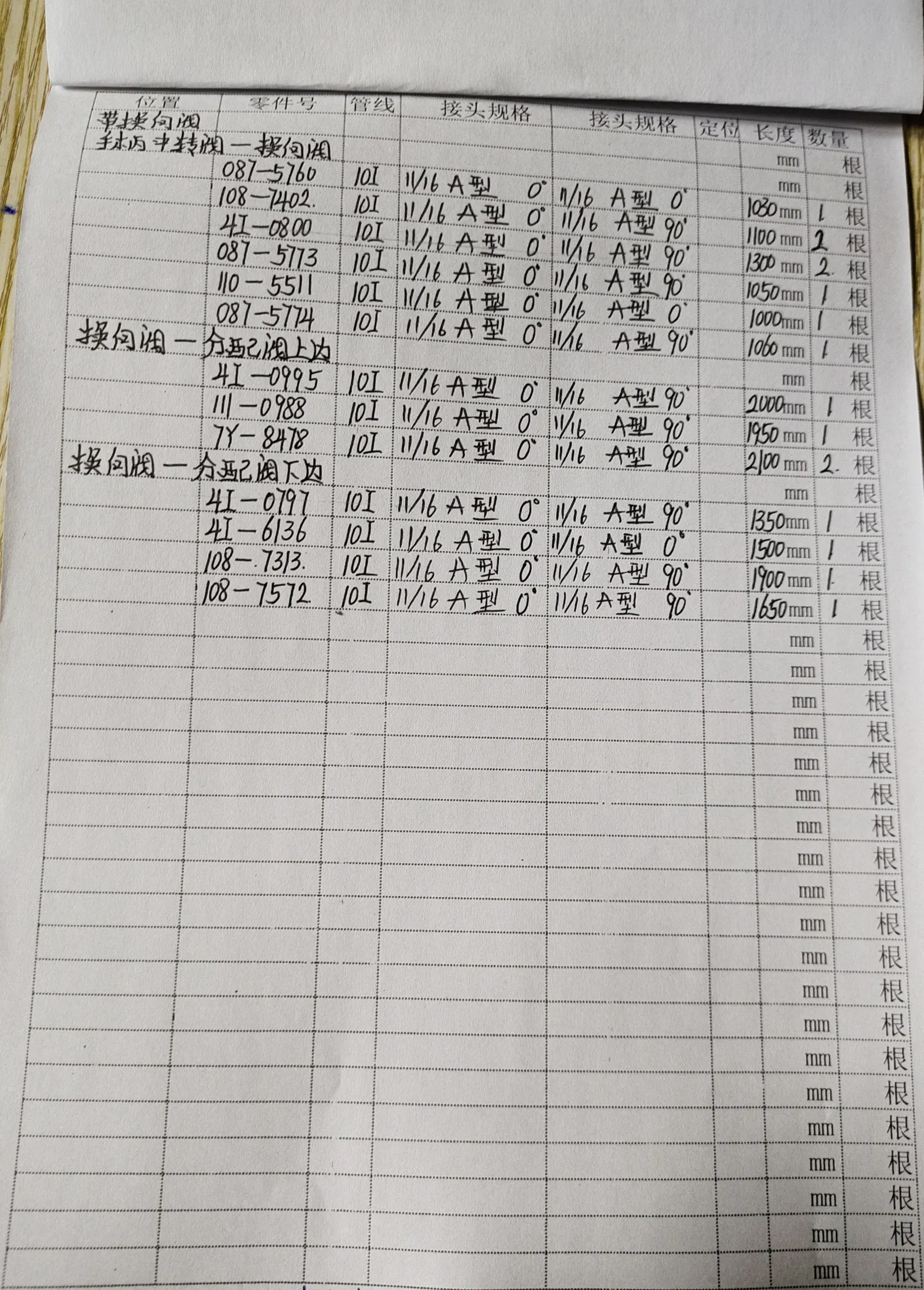

View sanitized source page — Handwritten field sheet 6 of 6
Shareable individual records
Hose Length and Fitting List
- Length
- 450 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 340 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 2,530 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 2,850 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 540 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 980 mm
- Specification
- DN32;1SN-20;4.3Mpa
- Left fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Right fitting
- Light-series flangeChinese source: 法兰-轻型
- Length
- 2,500 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 780 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,170 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 80°美制内螺纹平面密封
- Length
- 3,550 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,230 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,170 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 65°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,200 mm
- Specification
- DN16;4SP-10;28Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
