- Length
- 370 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Hydraulic line repair data
Caterpillar CAT®312D Hose Length & Fitting Data
Caterpillar CAT®312D has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 4 of 5 | Part number length exact | 4I-5900 | 900 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 282-7206 | 1,300 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 129-5959 | 3,000 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 292-7183 | 350 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 7Y-5088 | 1,150 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 292-7176 | 960 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 111-6752 | 2,200 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 4I-5933 | 1,600 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 286-6461 | 2,700 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 317-4846 | 3,620 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 184-9420 | 320 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 087-5775 | 1,130 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 319-9966 | 870 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 131-9907 | 920 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 7Y-4199 | 1,800 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 192-6775 | 1,400 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 292-7427 | 1,400 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 199-1689 | 960 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 178-5955 | 610 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 199-1689 | 960 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 292-7424 | 1,280 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 123-2636 | 760 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 108-7375 | 1,800 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 319-9966 | 870 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 325-9033 | 690 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 236-2843 | 1,200 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 5I-8708 | 950 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 199-1914 | 370 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 282-7171 | 880 mm | High | Published |

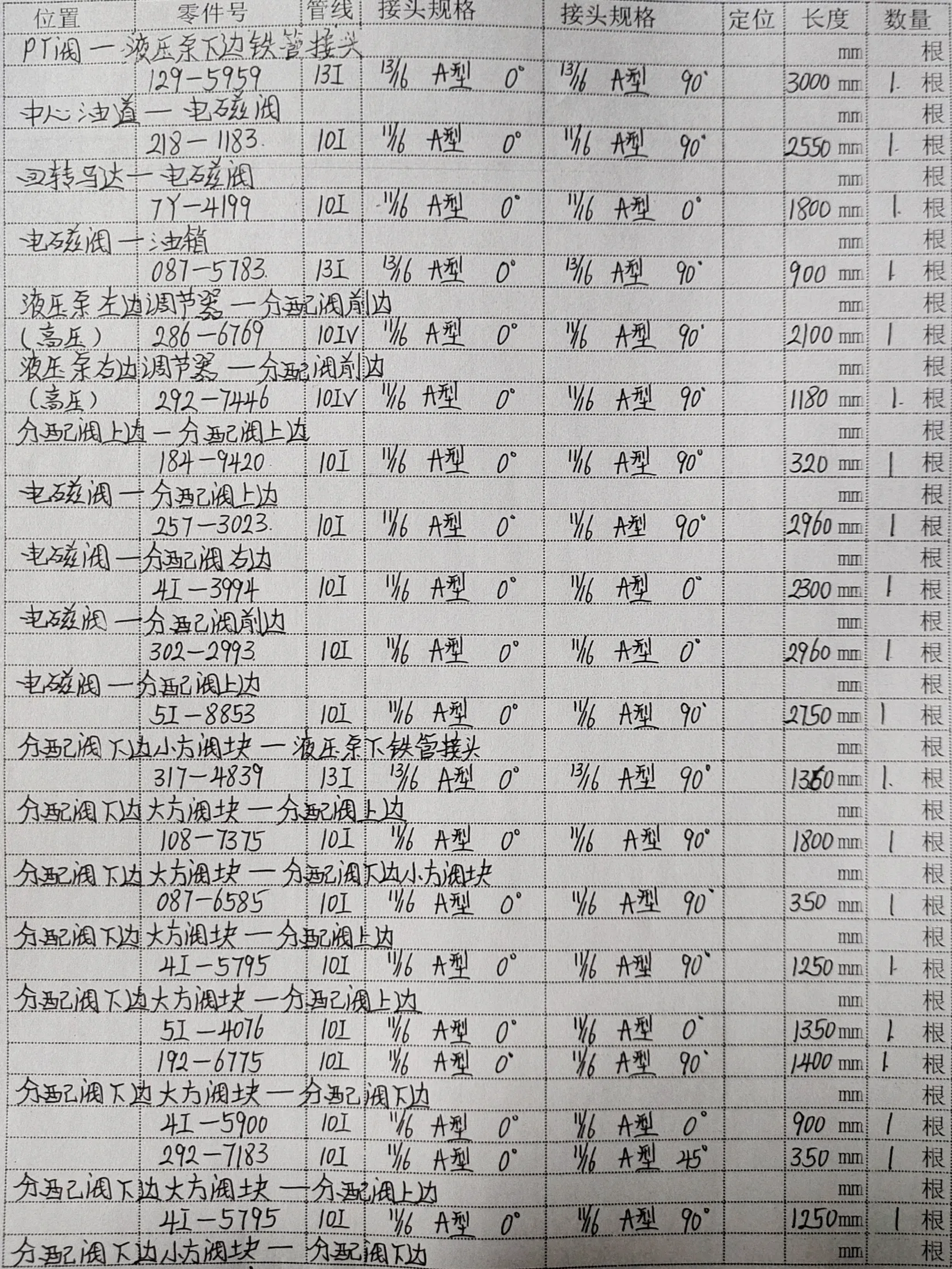

View sanitized source page — Handwritten field sheet 4 of 5

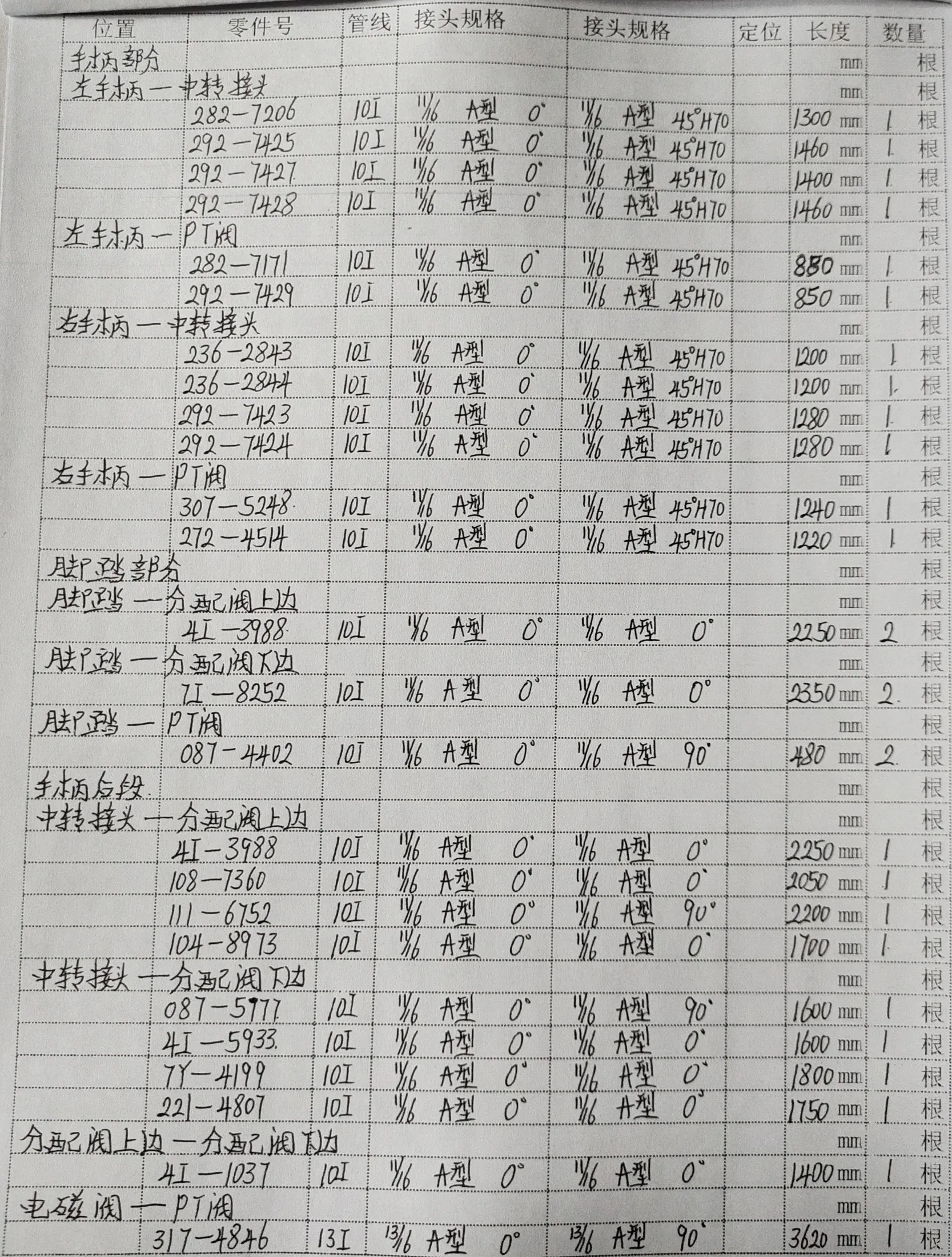

View sanitized source page — Handwritten field sheet 3 of 5

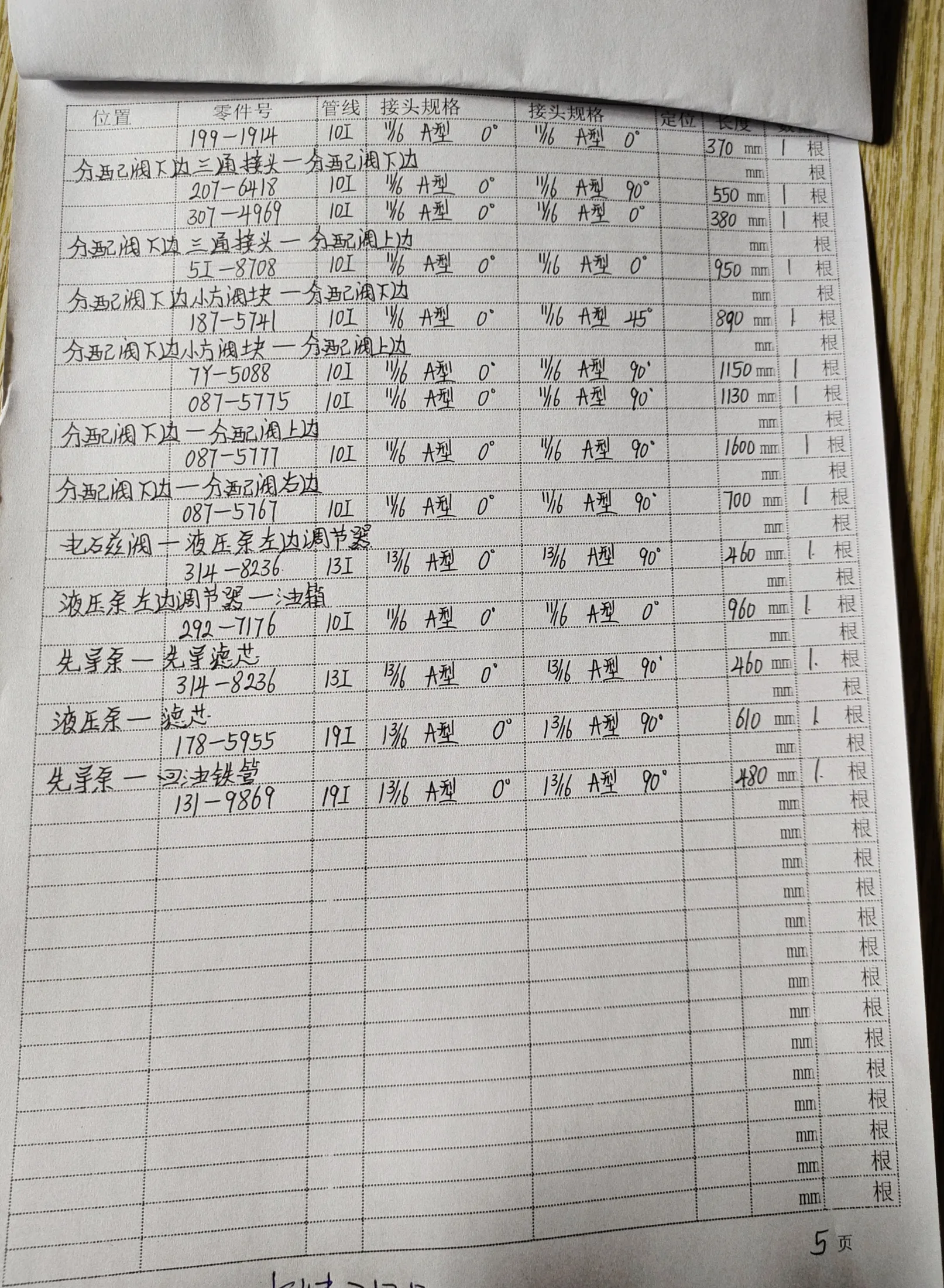

View sanitized source page — Handwritten field sheet 5 of 5

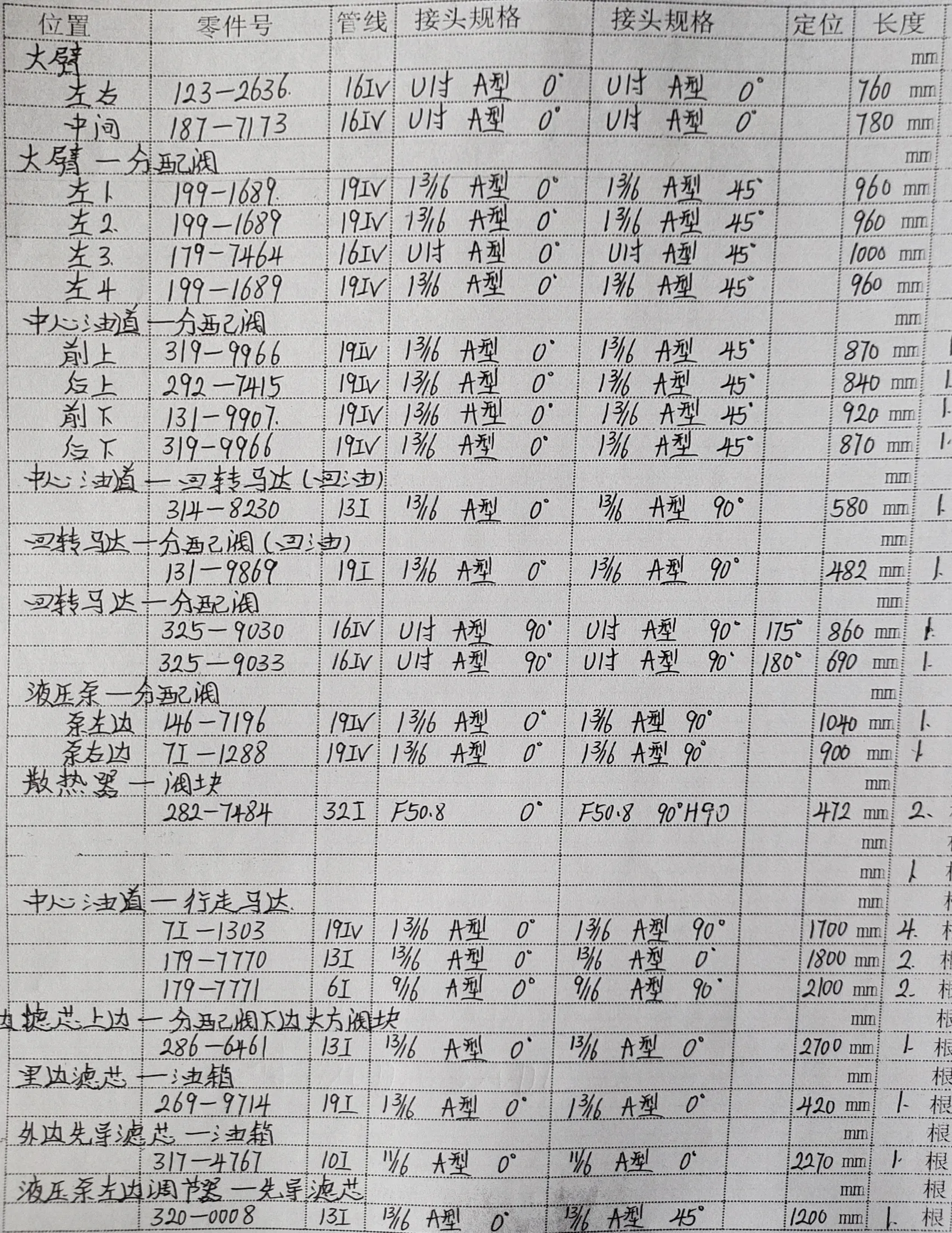

View sanitized source page — Handwritten field sheet 1 of 5

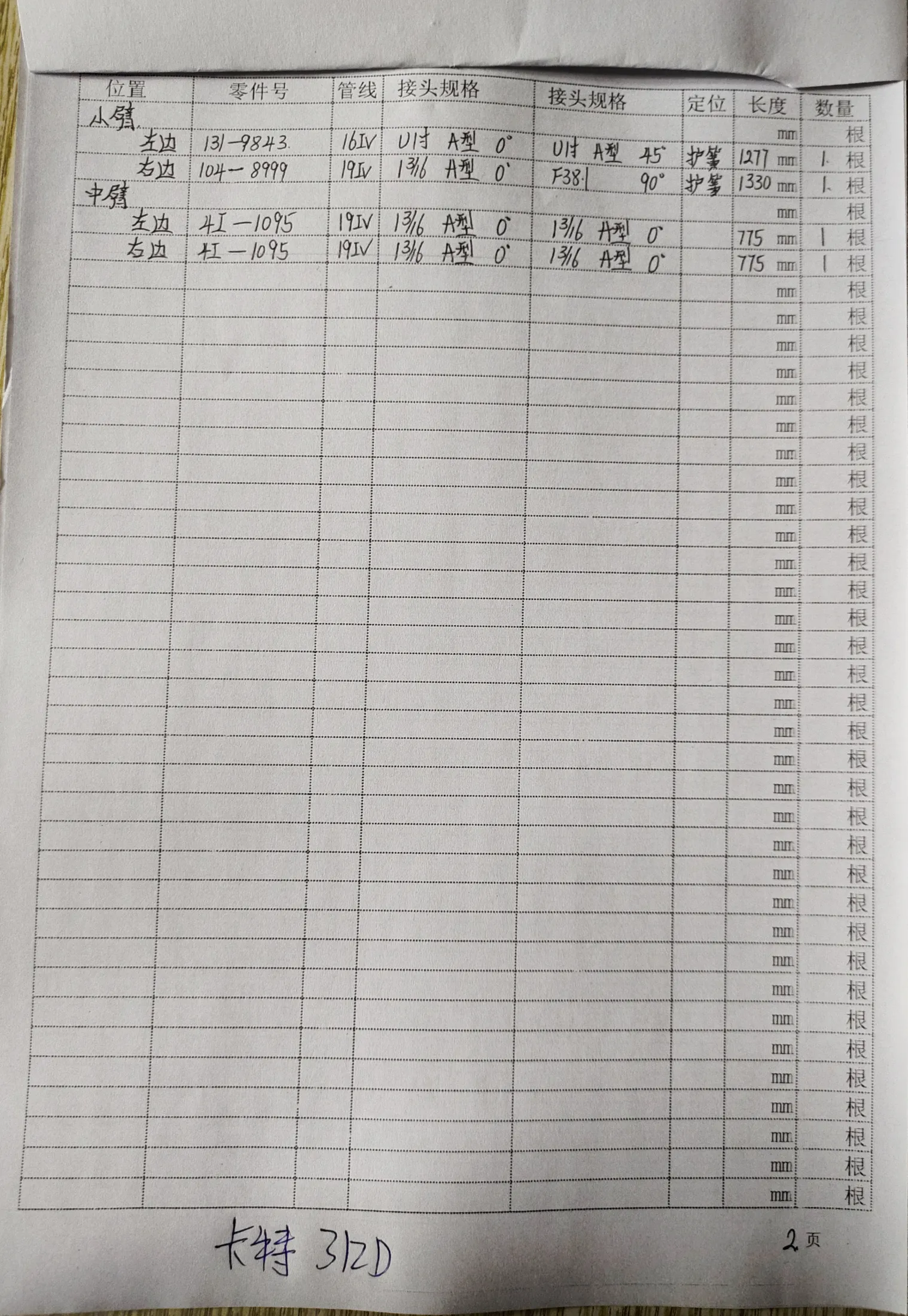

View sanitized source page — Handwritten field sheet 2 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 1,150 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 1,280 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 880 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,400 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,600 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,800 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,130 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 3,620 mm
- Specification
- DN13;1SN-8;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 3,000 mm
- Specification
- DN13;1SN-8;10.4Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,200 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 950 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,800 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 870 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 920 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 2,200 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 760 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 350 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 690 mm
- Specification
- DN16;4SP-10;28Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 610 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 1,400 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,300 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 900 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 2,700 mm
- Specification
- DN13;1SN-8;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 320 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
