Caterpillar CAT®330C Handwritten Hose Source Material

Automatically matched handwritten pages related to the Caterpillar CAT®330C. Image-only material is a relevance aid, not a confirmed hose or manufacturing specification.

Automatically matched corroboration

Independent handwritten source

Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.

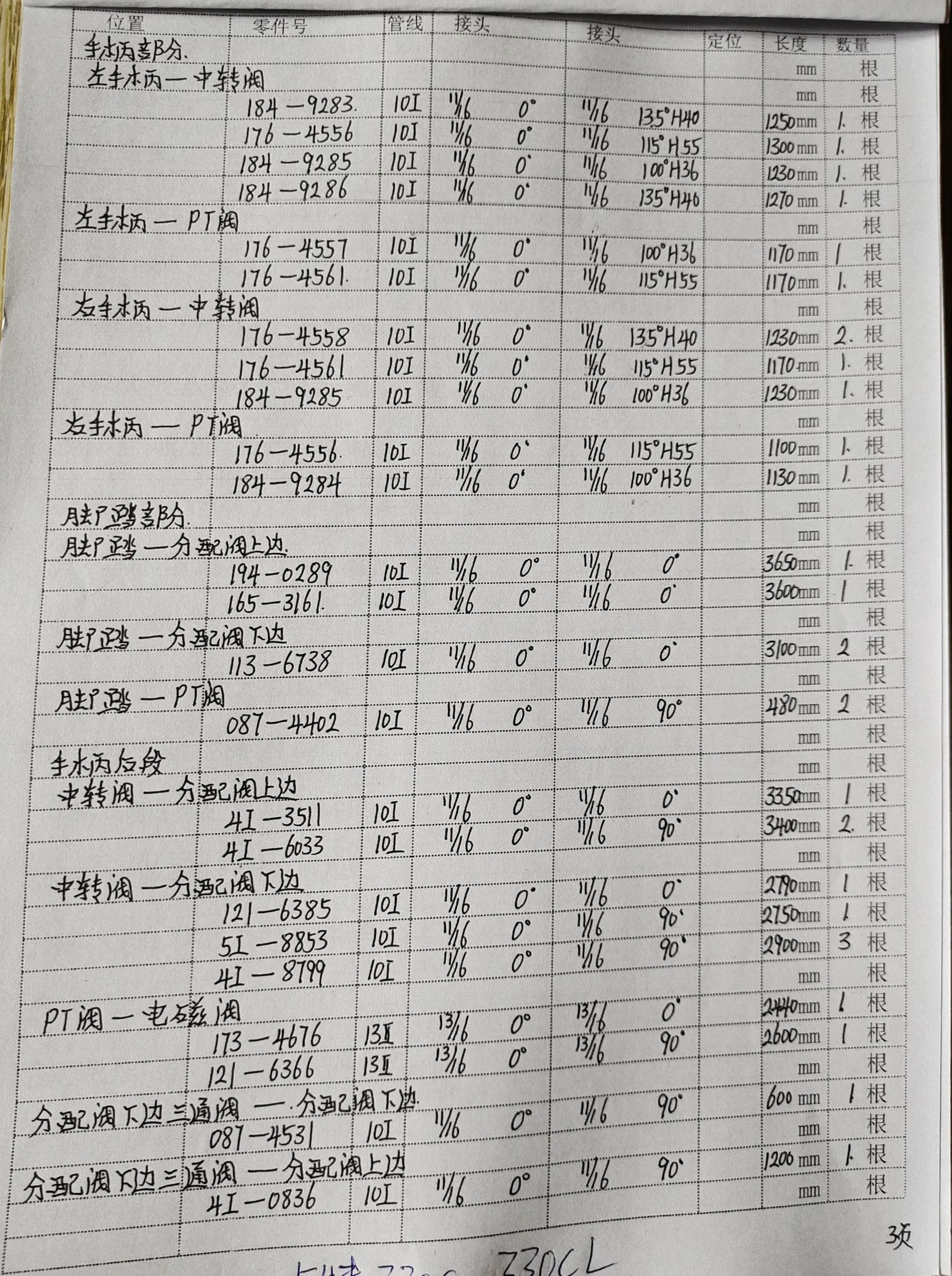

View sanitized source page — Handwritten field sheet 3 of 6Sanitized handwritten source page

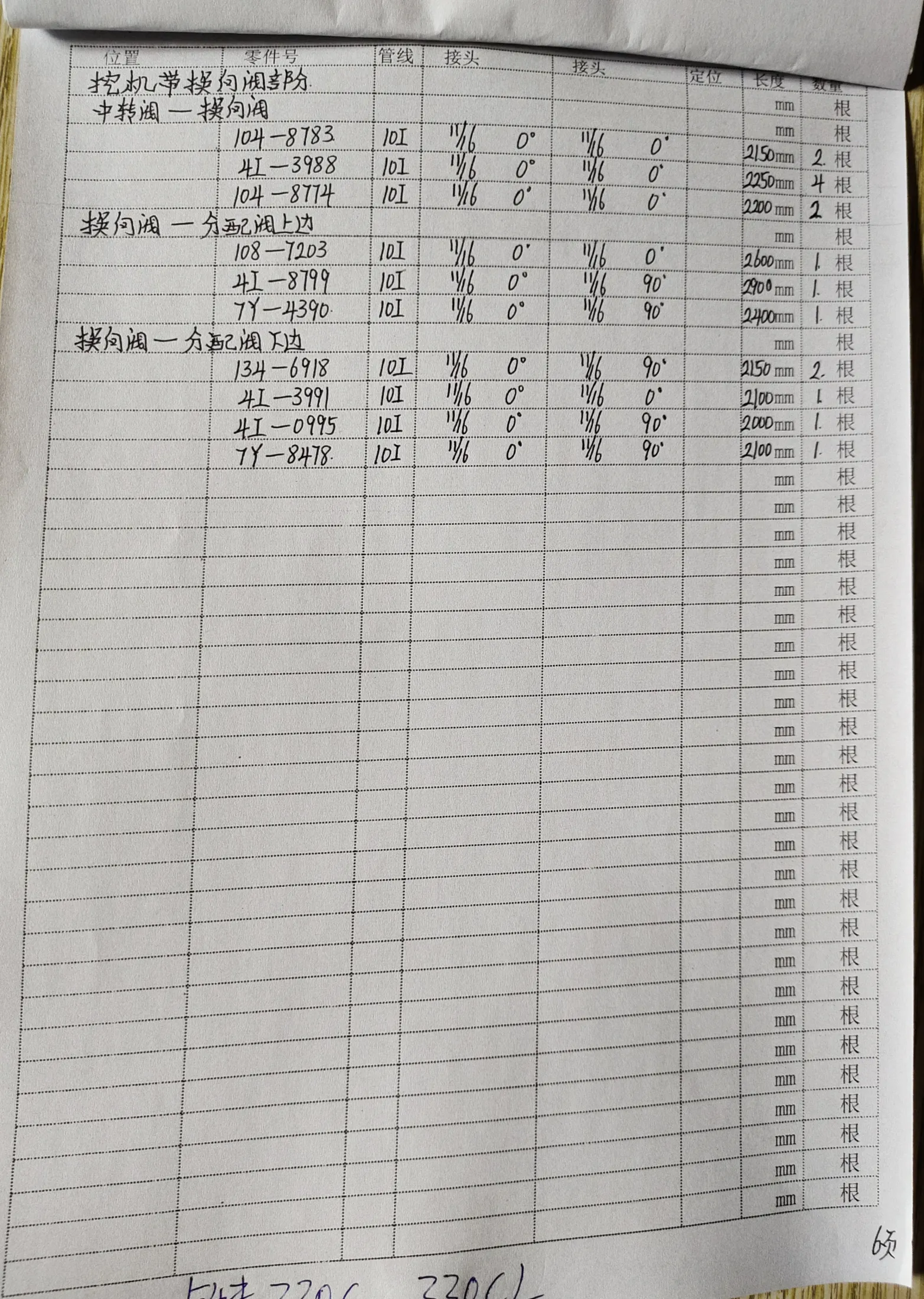

View sanitized source page — Handwritten field sheet 2 of 6Sanitized handwritten source page

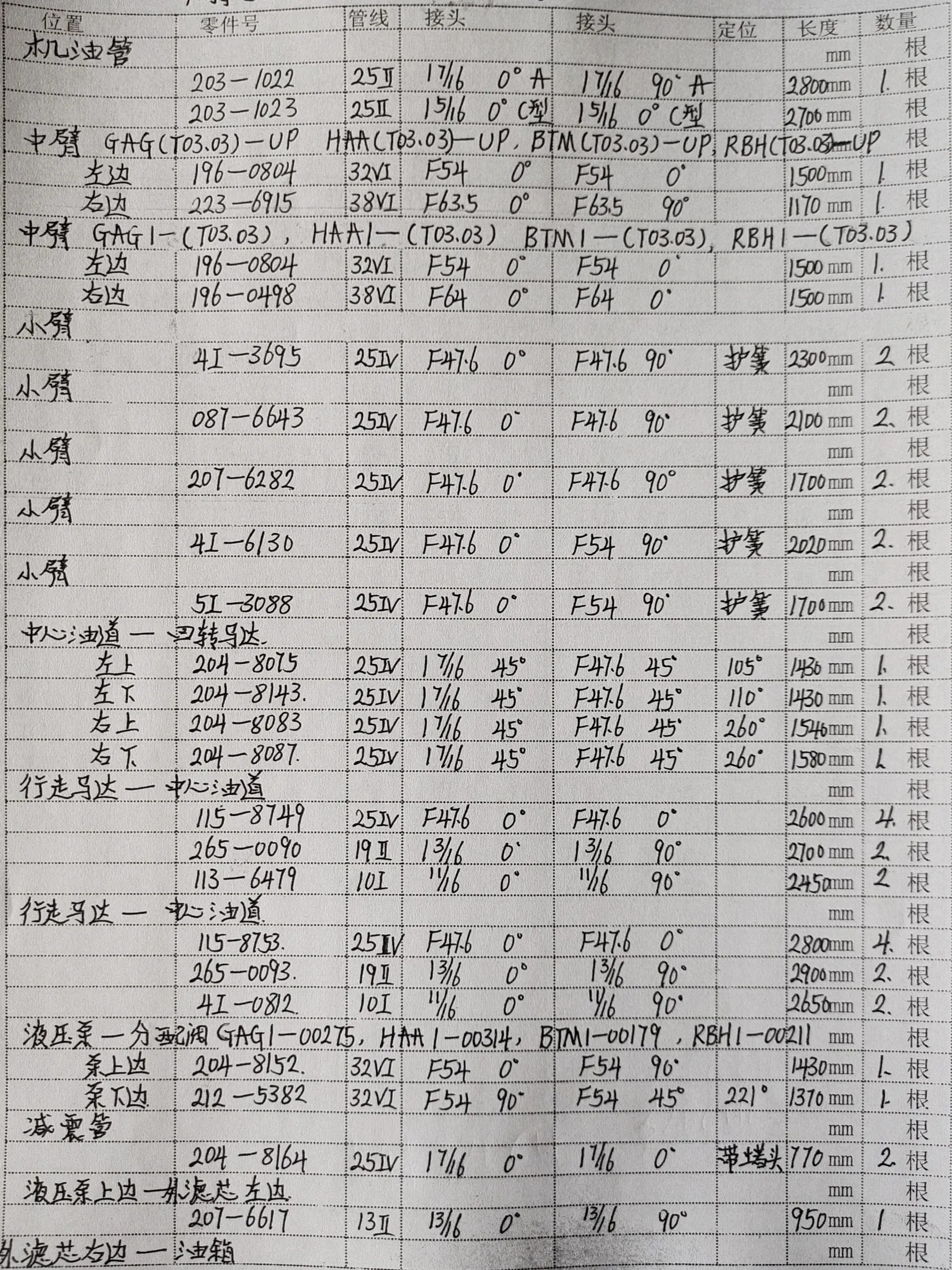

View sanitized source page — Handwritten field sheet 6 of 6Sanitized handwritten source page

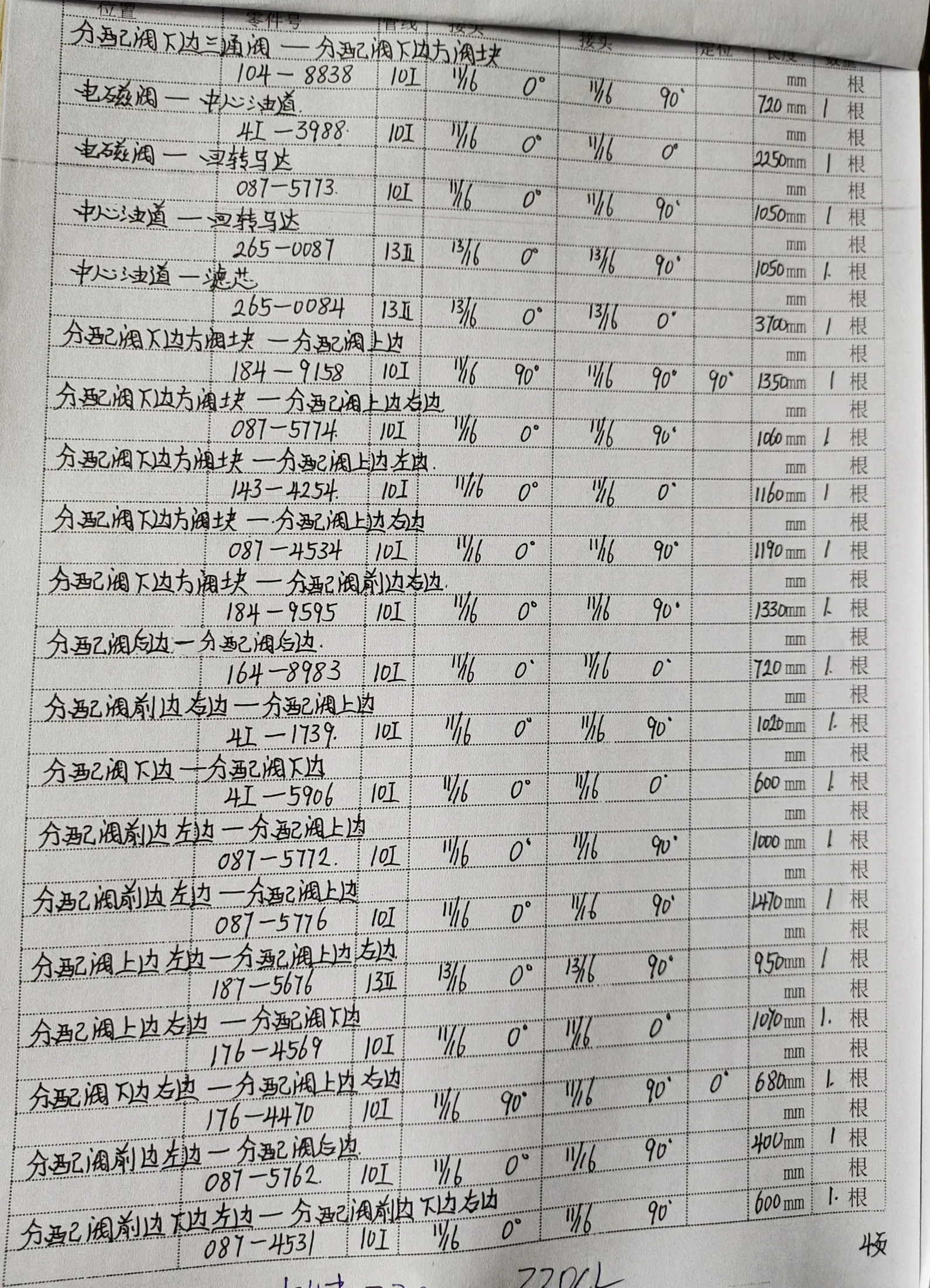

View sanitized source page — Handwritten field sheet 1 of 6Sanitized handwritten source page

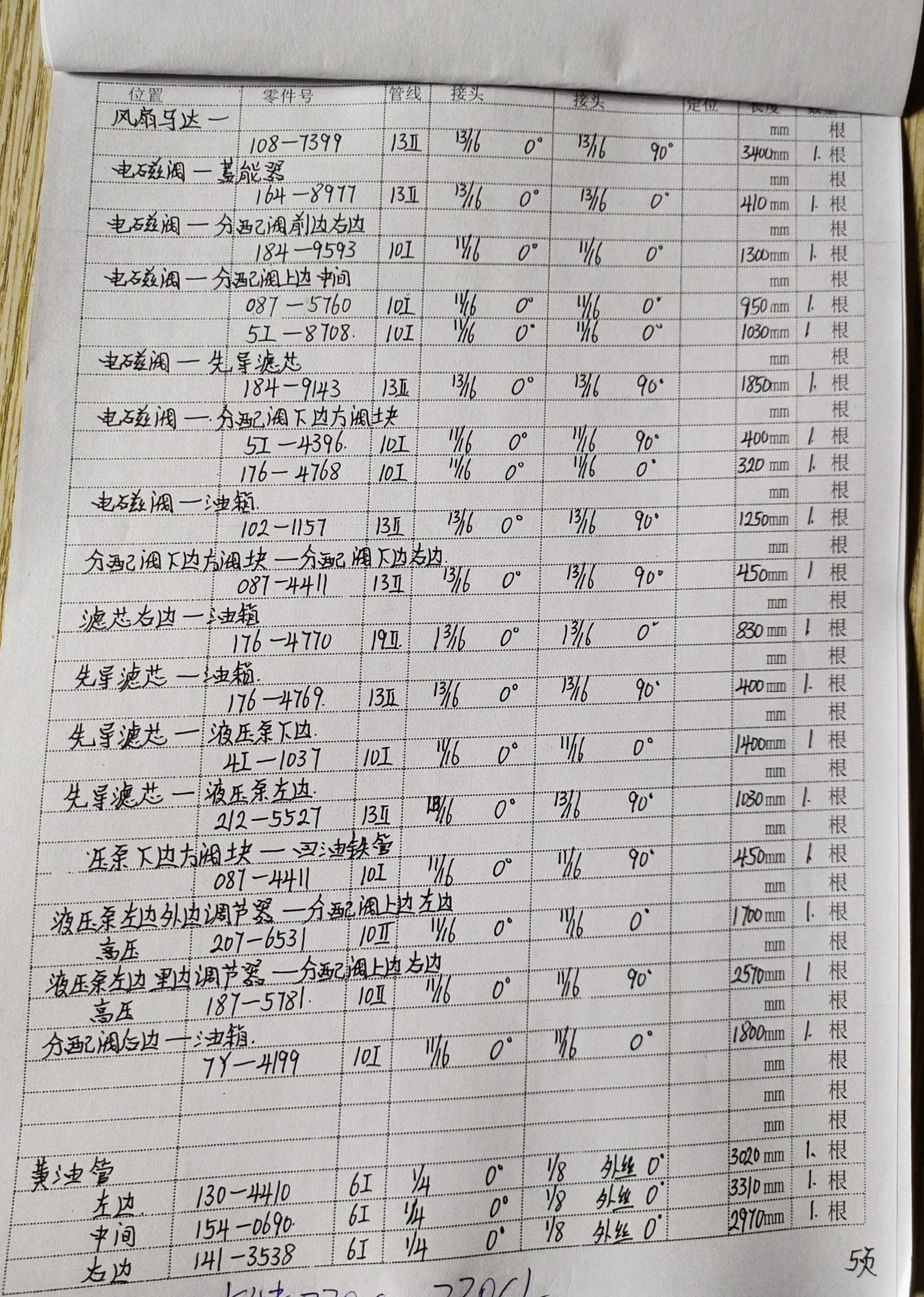

View sanitized source page — Handwritten field sheet 5 of 6Sanitized handwritten source page

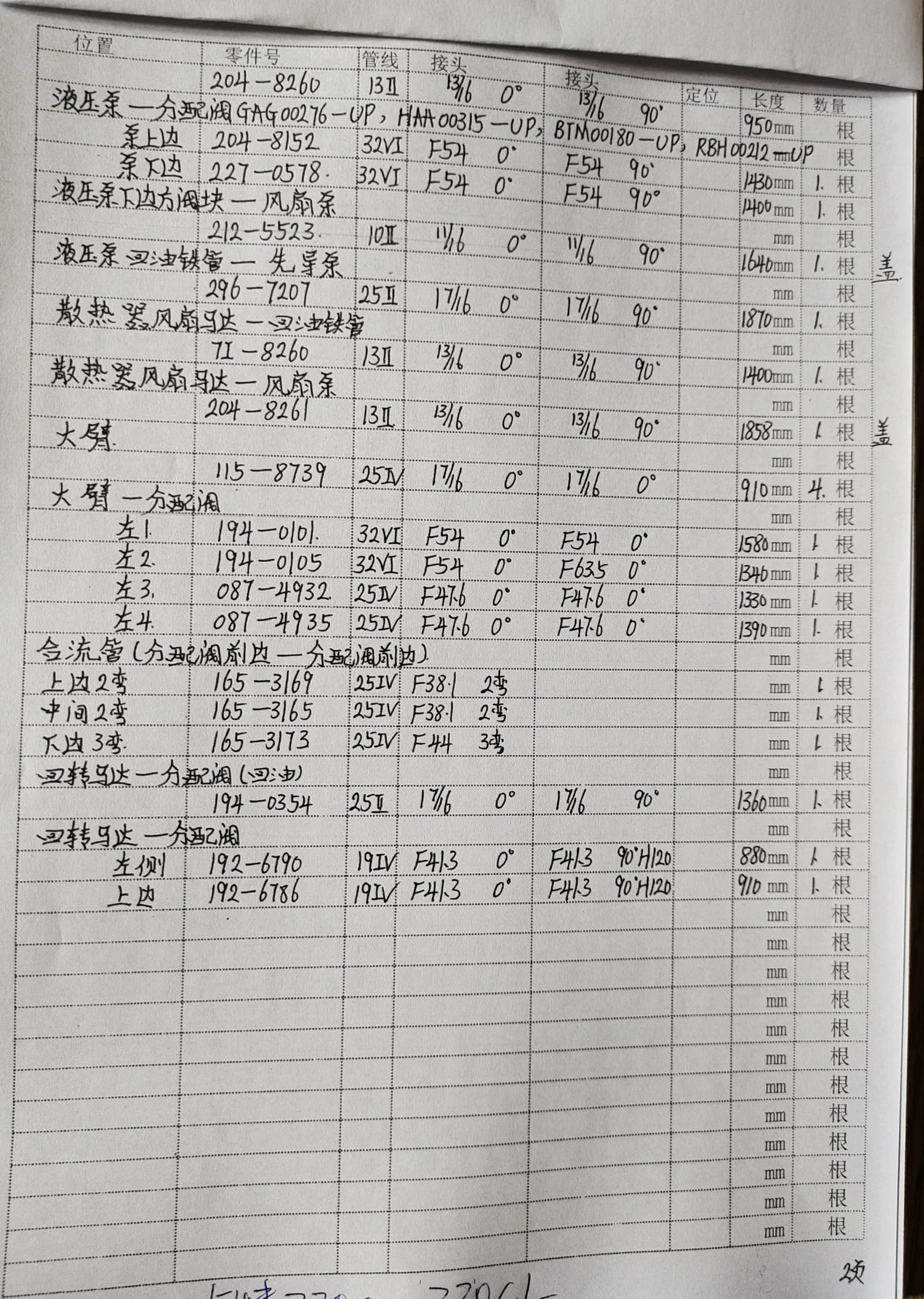

View sanitized source page — Handwritten field sheet 4 of 6Sanitized handwritten source page
