Hydraulic line repair data

Doosan DX150LC Hose Length & Fitting Data

Doosan DX150LC has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.

Published hoses
0 records
Complete repair data
0 records

Automatically matched corroboration

Independent handwritten source

Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.

Published handwritten observations
SourceMatch basisObserved part numberObserved lengthConfidencePublication status
Handwritten field sheet 3 of 4Part number length exactDS2011527400 mmHighPublished
Handwritten field sheet 2 of 4Part number length exactDS2053796880 mmHighPublished
Handwritten field sheet 4 of 4Part number length exactDS2122091775 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS20131516650 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS2023586990 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS2023713940 mmHighPublished
Handwritten field sheet 2 of 4Part number length exactDS2016274800 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS20251941,130 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS2026464720 mmHighPublished
Handwritten field sheet 1 of 4Part number length exactDS2013295750 mmHighPublished
Handwritten field sheet 3 of 4Part number length exactDS21192451,660 mmHighPublished
Handwritten field sheet 2 of 4Part number length exactDS20408621,380 mmHighPublished

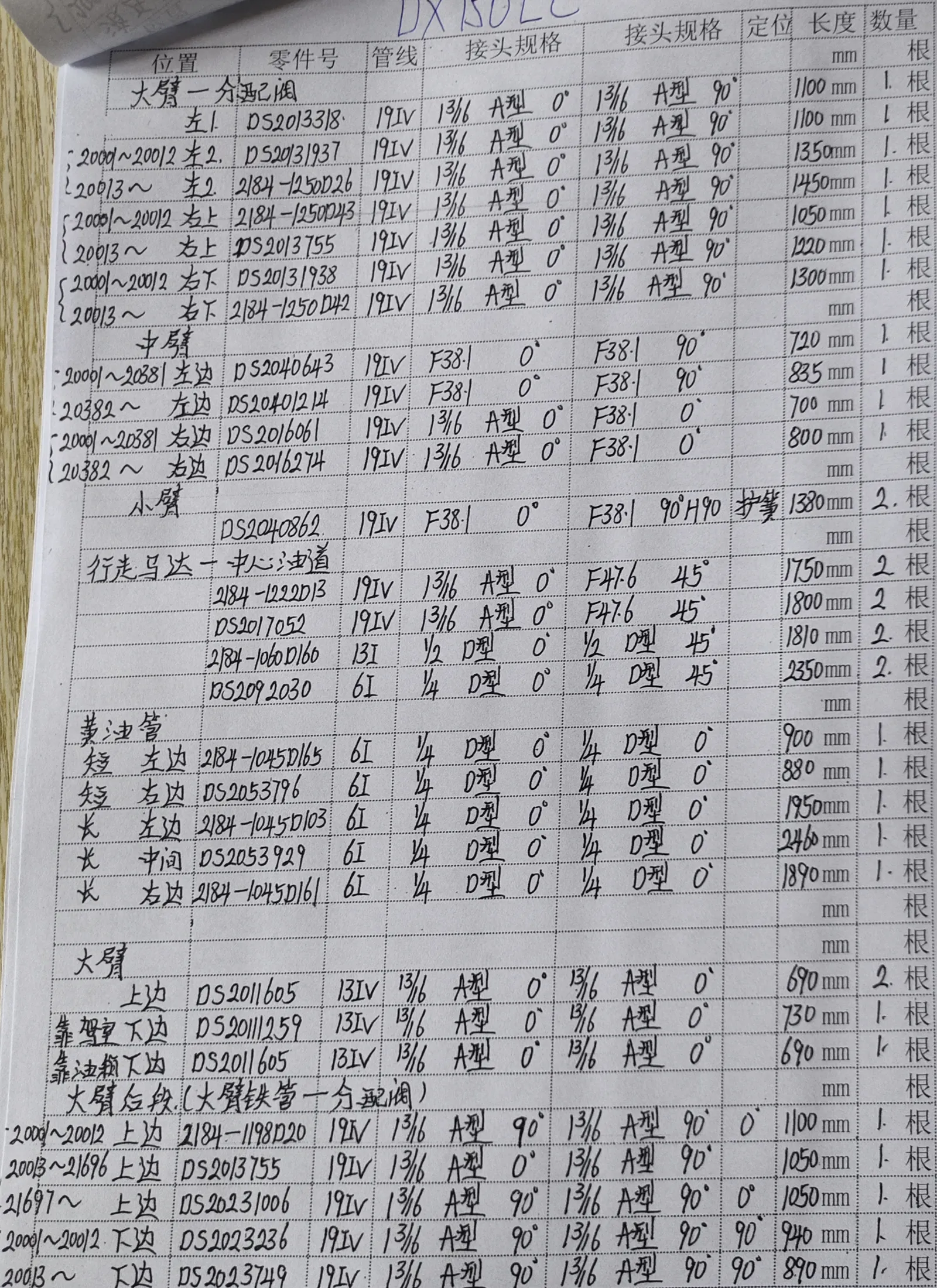

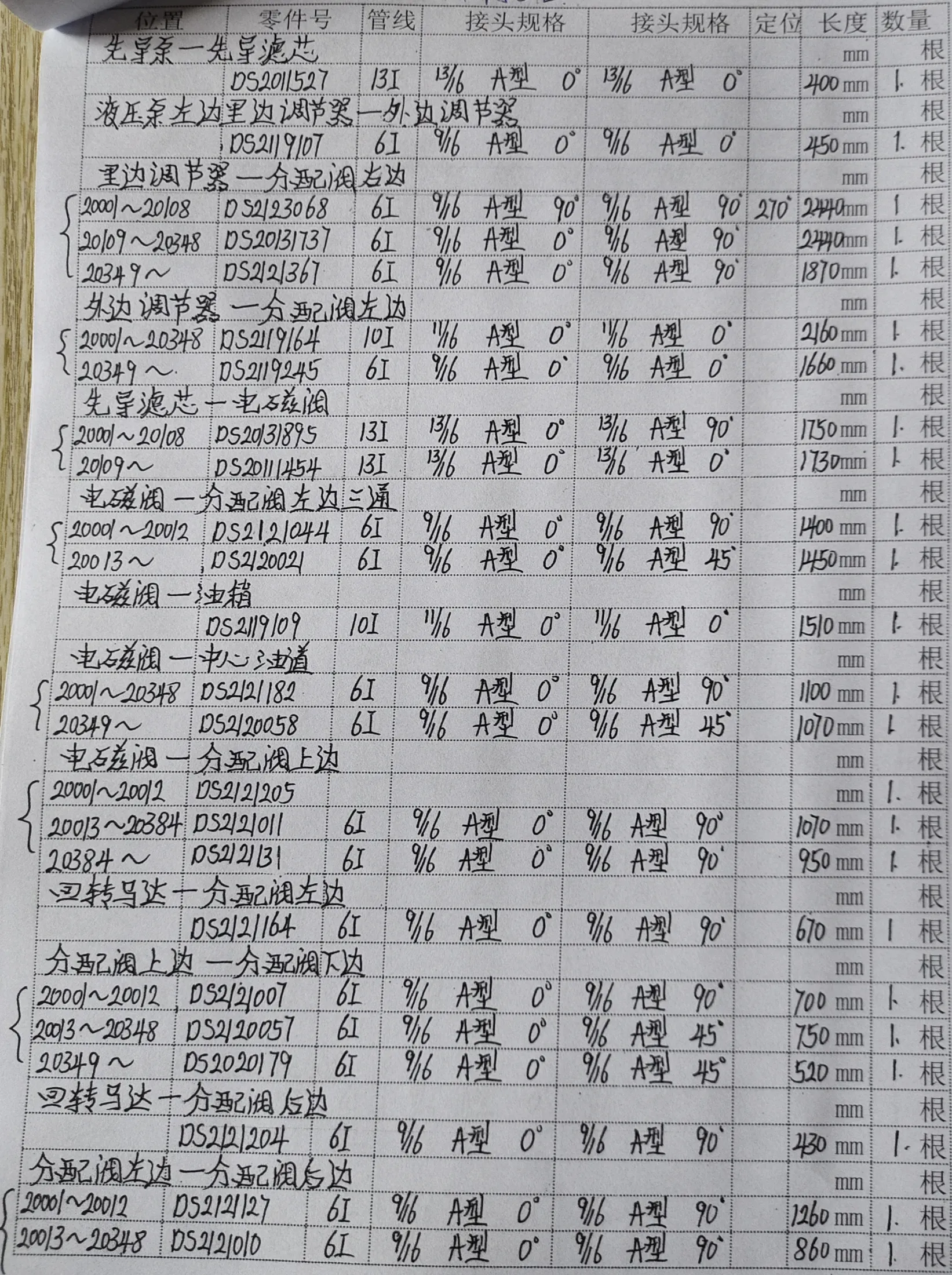

View sanitized source page — Handwritten field sheet 3 of 4Sanitized handwritten source page

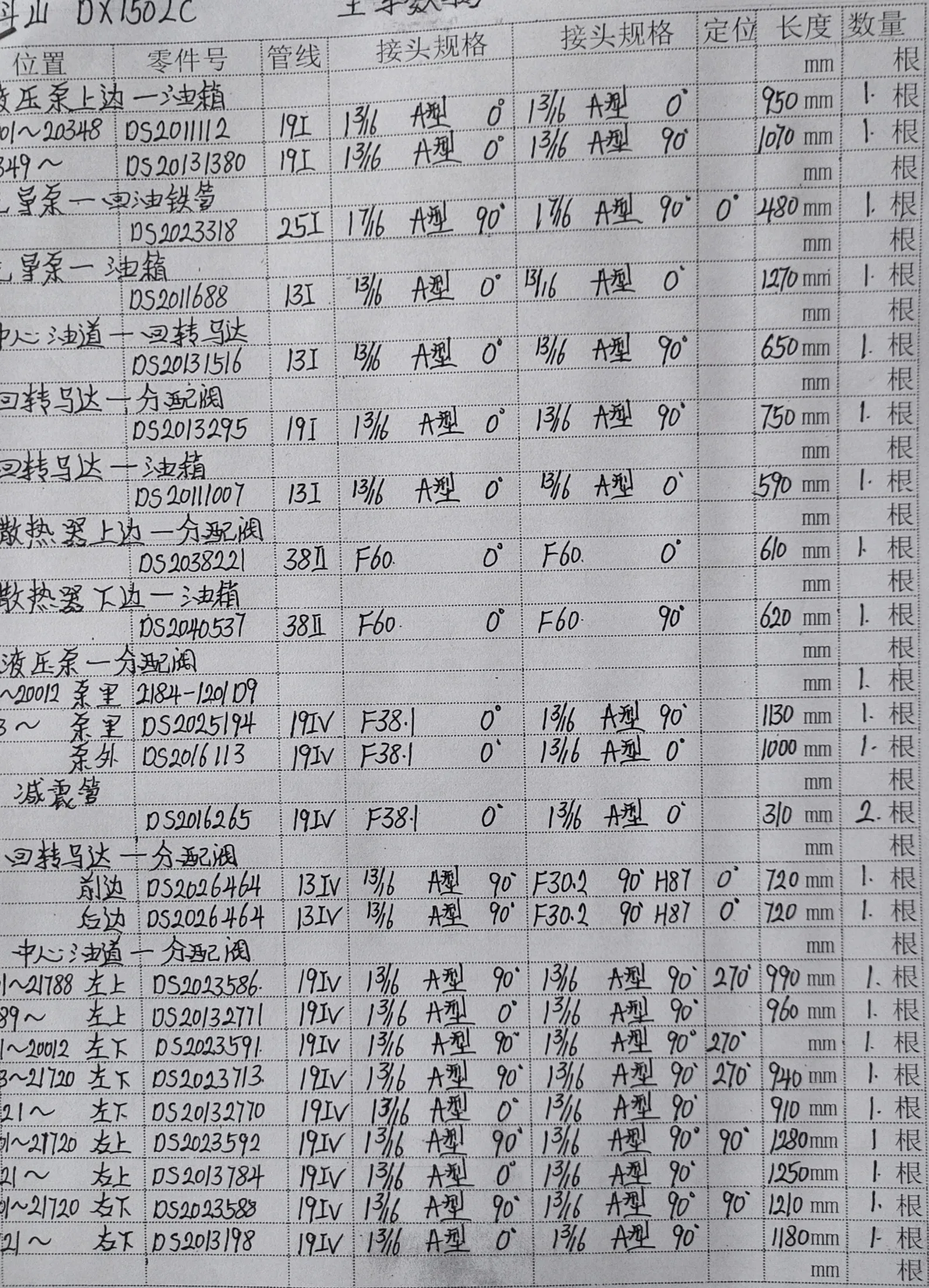

View sanitized source page — Handwritten field sheet 2 of 4Sanitized handwritten source page

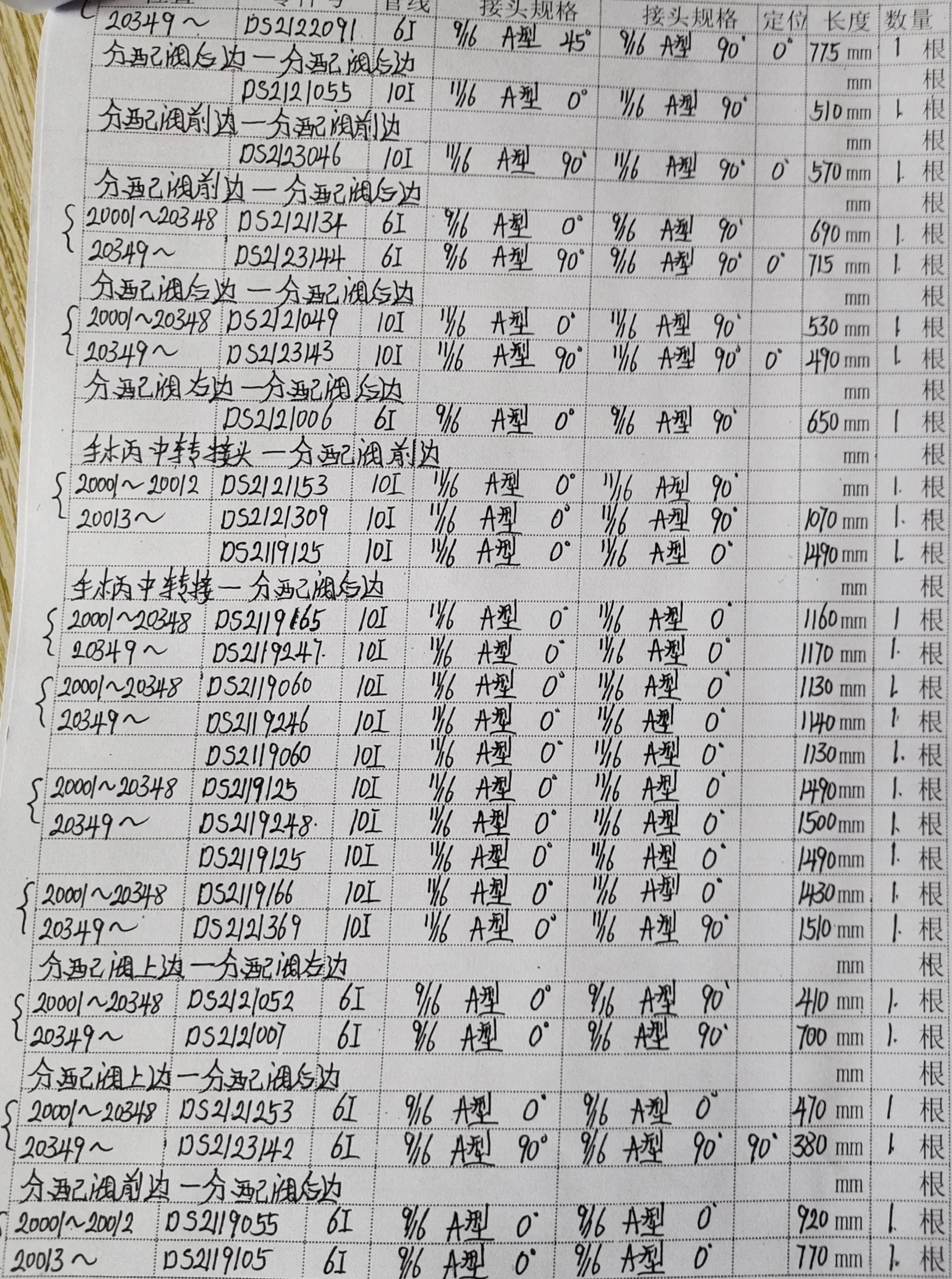

View sanitized source page — Handwritten field sheet 4 of 4Sanitized handwritten source page
View sanitized source page — Handwritten field sheet 1 of 4Sanitized handwritten source page

Shareable individual records

Hose Length and Fitting List

Diagram Pipe No. 50

DS20131516

Installation route: 回转接头G口~回转马达DB口

Length
650 mm
Specification
DN13;1SN-08;16MPa
Left fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Hose record

DS2122091

Installation route: 分配阀左~分配阀后

Length
775 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
45°美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Hose record

DS2040862

Installation route: Bucket cylinderChinese source: 铲斗油缸

Length
1,380 mm
Specification
DN19;4SH-12;42MPa
Left fitting
Light-series flangeChinese source: 法兰-轻型
Right fitting
90° light-series flangeChinese source: 90°法兰-轻型
View full repair specifications

Hose record

DS2026464

Installation route: 分配阀~回转马达

Length
720 mm
Specification
DN13;4SP-08;41.5MPa
Left fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
Right fitting
90° light-series flangeChinese source: 90°法兰-轻型
View full repair specifications

Hose record

DS2023586

Installation route: 回转接头~分配阀

Length
990 mm
Specification
DN19;4SH-12;42MPa
Left fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 11

DS2016274

Installation route: Arm cylinder — rightChinese source: 小臂油缸右

Length
800 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Right fitting
Light-series flangeChinese source: 法兰-轻型
View full repair specifications

Hose record

DS2023713

Installation route: 回转接头~分配阀

Length
940 mm
Specification
DN19;4SH-12;42MPa
Left fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 12

DS2025194

Installation route: 液压泵~分配阀P1口

Length
1,130 mm
Specification
DN19;4SH-12;42MPa
Left fitting
Light-series flangeChinese source: 法兰-轻型
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Hose record

DS2119245

Installation route: 液压泵~分配阀左

Length
1,660 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 1

DS2053796

Installation route: 右大臂座销黄油管

Length
880 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
View full repair specifications

Hose record

DS2013295

Installation route: 分配阀~回转马达

Length
750 mm
Specification
DN19;1SN-12;10.5MPa
Left fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
View full repair specifications

Hose record

DS2011527

Installation route: 液压泵~液压油滤清器

Length
400 mm
Specification
DN13;1SN-08;16MPa
Left fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealChinese source: 美制内螺纹平面密封
View full repair specifications
