- Length
- 1,000 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
Hydraulic line repair data
Doosan DX150LC-9C Hose Length & Fitting Data
Doosan DX150LC-9C has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 2 of 5 | Part number length exact | DS2038420 | 1,600 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | DS20531097 | 1,770 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS2065158 | 1,140 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | DS20111207 | 420 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS2120066 | 2,320 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS2012150 | 1,080 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | DS2113002 | 1,750 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS2023692 | 530 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | DS2016252 | 850 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS20132643 | 1,000 mm | High | Published |

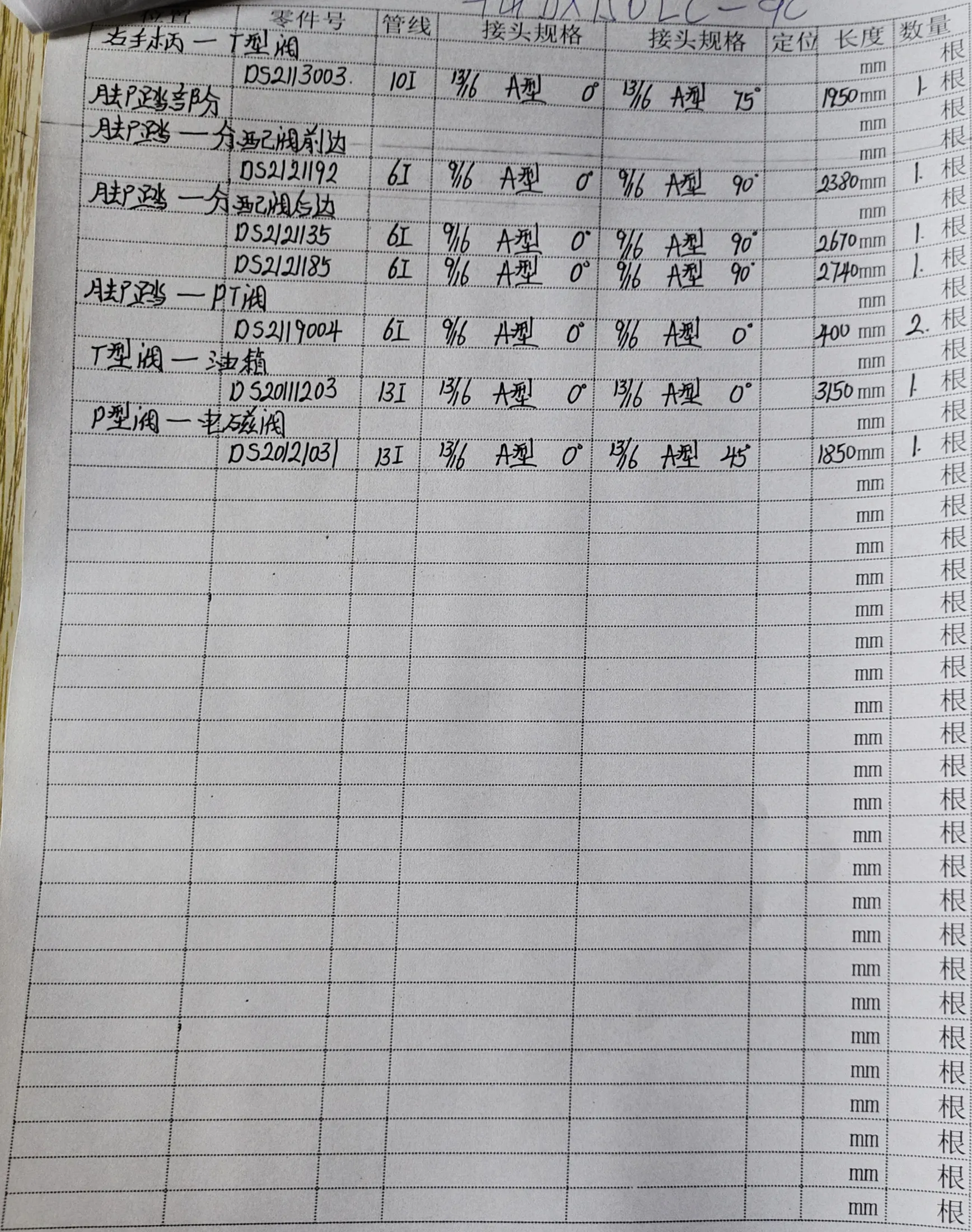

View sanitized source page — Handwritten field sheet 2 of 5

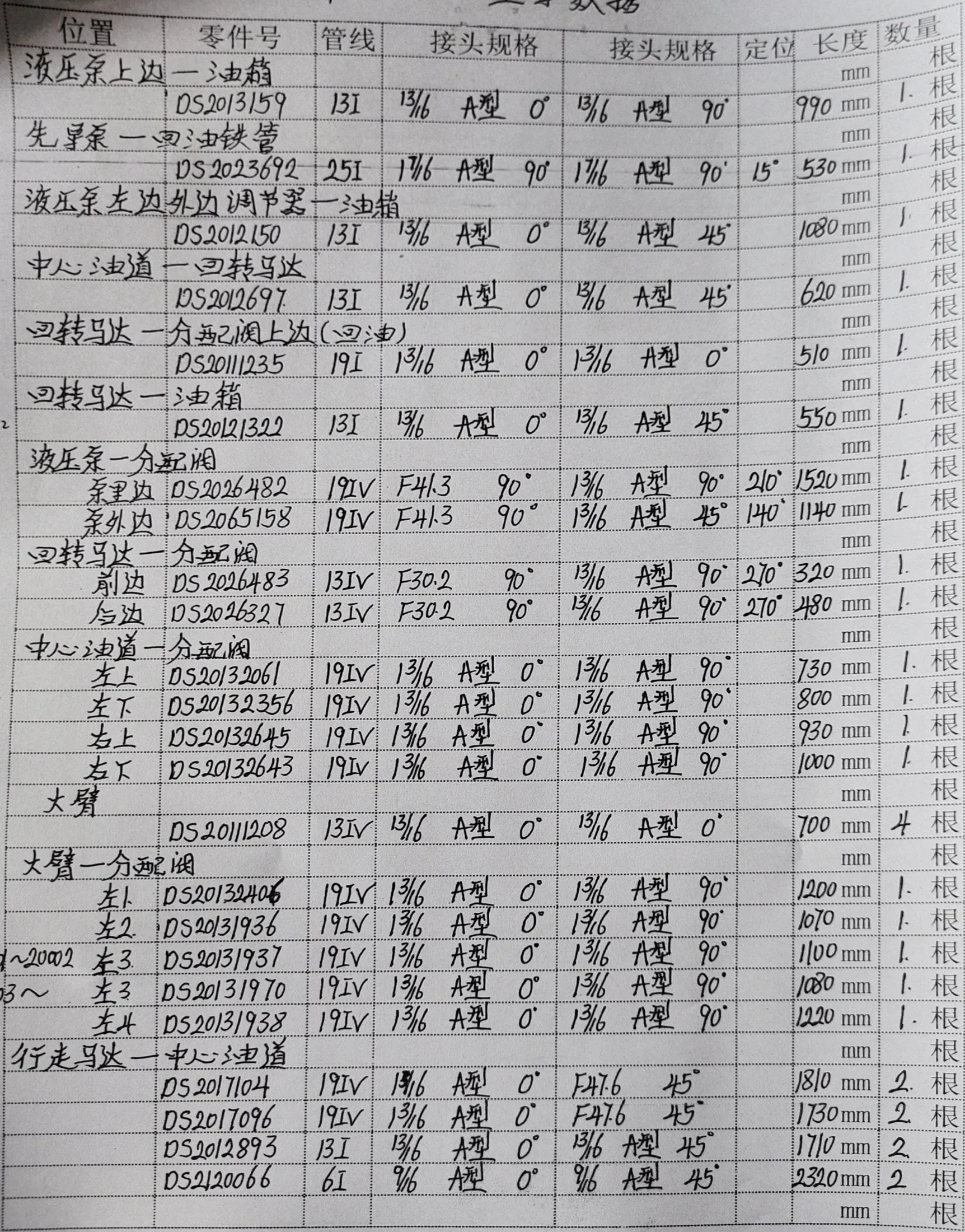

View sanitized source page — Handwritten field sheet 1 of 5

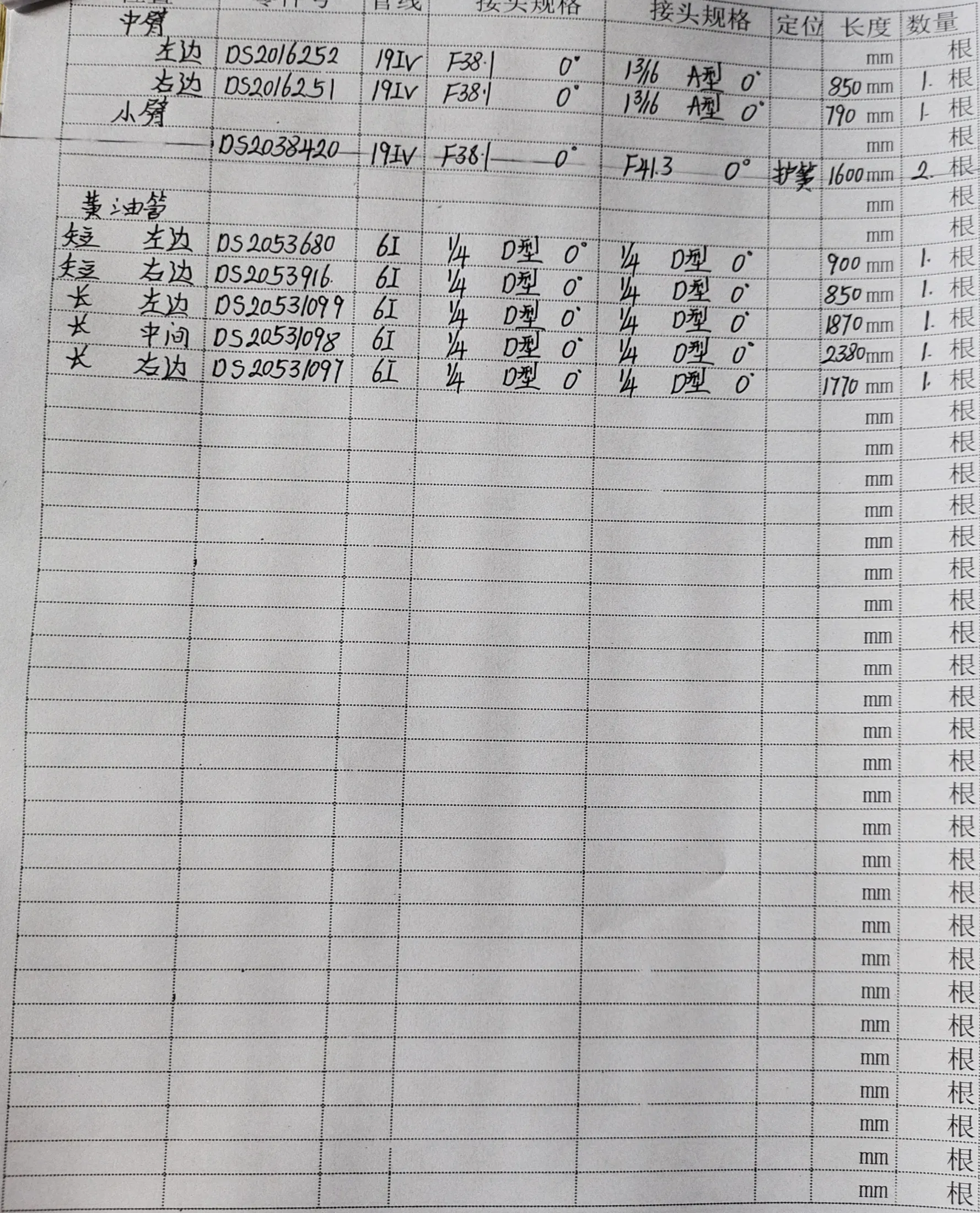

View sanitized source page — Handwritten field sheet 3 of 5

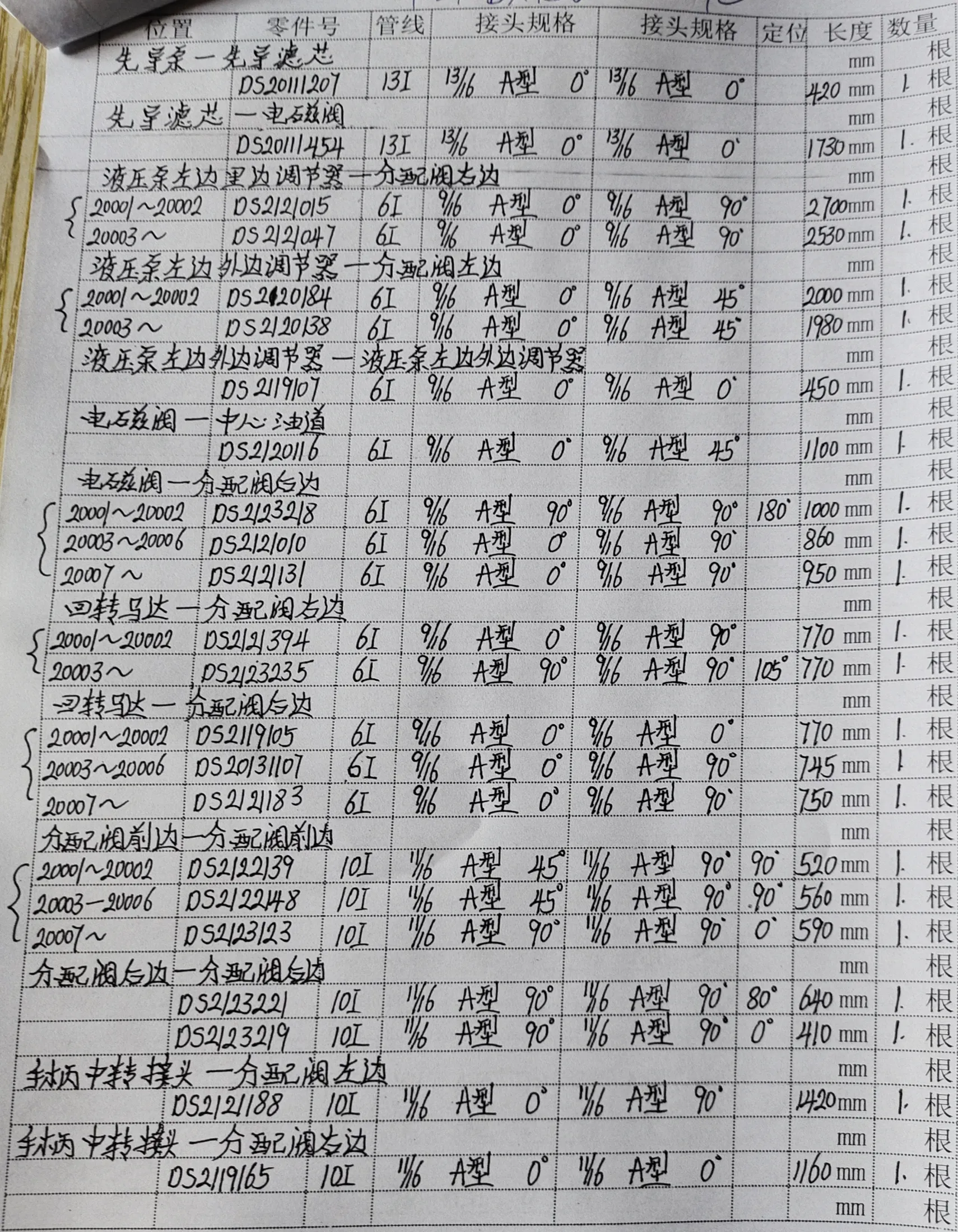

View sanitized source page — Handwritten field sheet 4 of 5

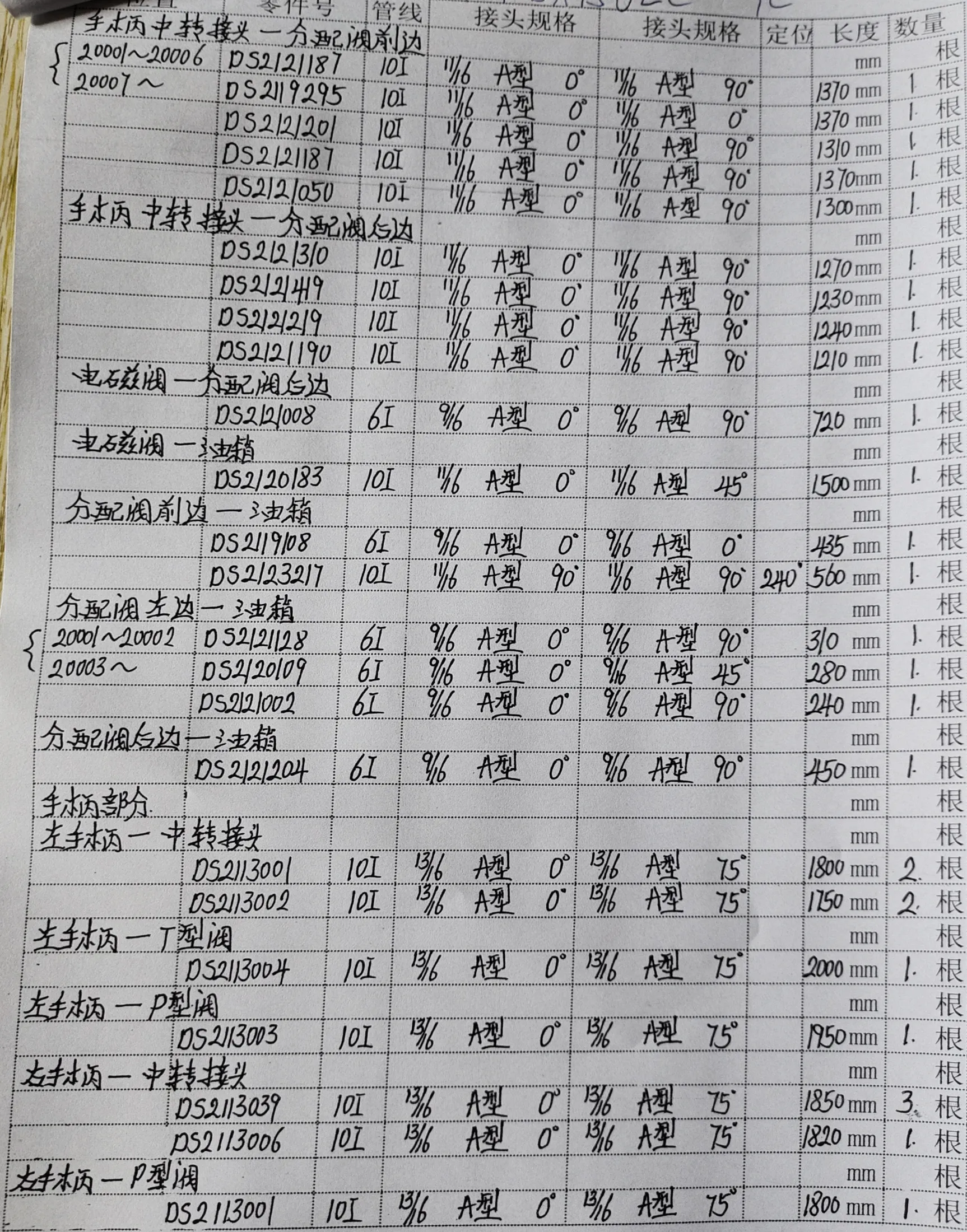

View sanitized source page — Handwritten field sheet 5 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 1,140 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- 90° heavy-series flangeChinese source: 90°法兰-重型
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,080 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 1,770 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 530 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 1,600 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- Light-series flangeChinese source: 法兰-轻型
- Right fitting
- Heavy-series flangeChinese source: 法兰-重型
- Length
- 420 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Length
- 1,750 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 70°美制内螺纹平面密封
- Length
- 850 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- Light-series flangeChinese source: 法兰-轻型
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Diagram Pipe No. 14
DS2120066
Installation route: Swivel joint → travel motorChinese source: 回转接头~行走马达
- Length
- 2,320 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
