- Length
- 1,260 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
Hydraulic line repair data
Doosan DX225LC Hose Length & Fitting Data
Doosan DX225LC has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 4 of 5 | Part number length exact | DS2094004 | 350 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | DS2040380 | 840 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | DS2093030 | 650 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | DS2094055 | 420 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | DS2093184 | 900 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | DS2093090 | 800 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | DS2094049 | 1,260 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | DS2093155 | 950 mm | High | Published |

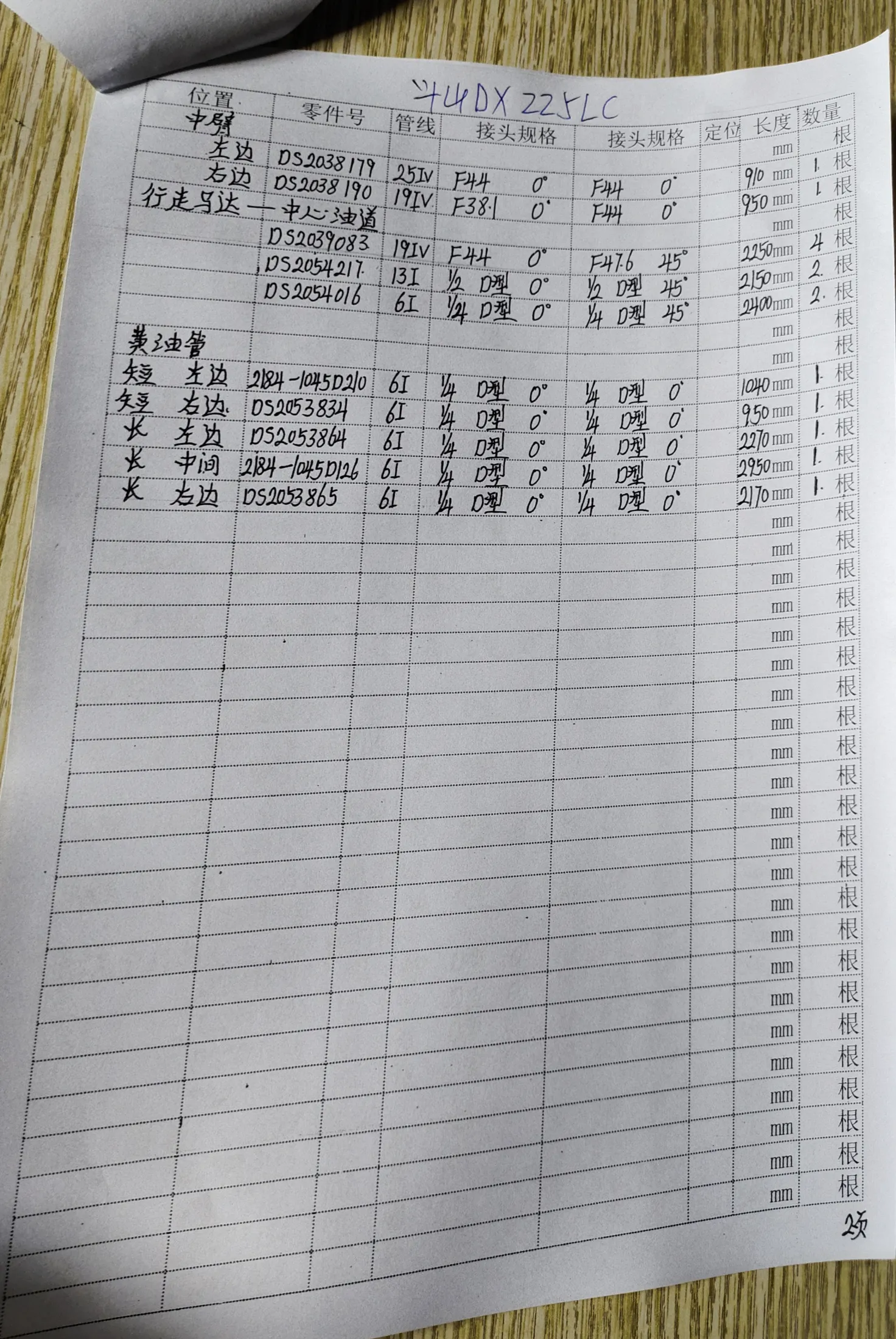

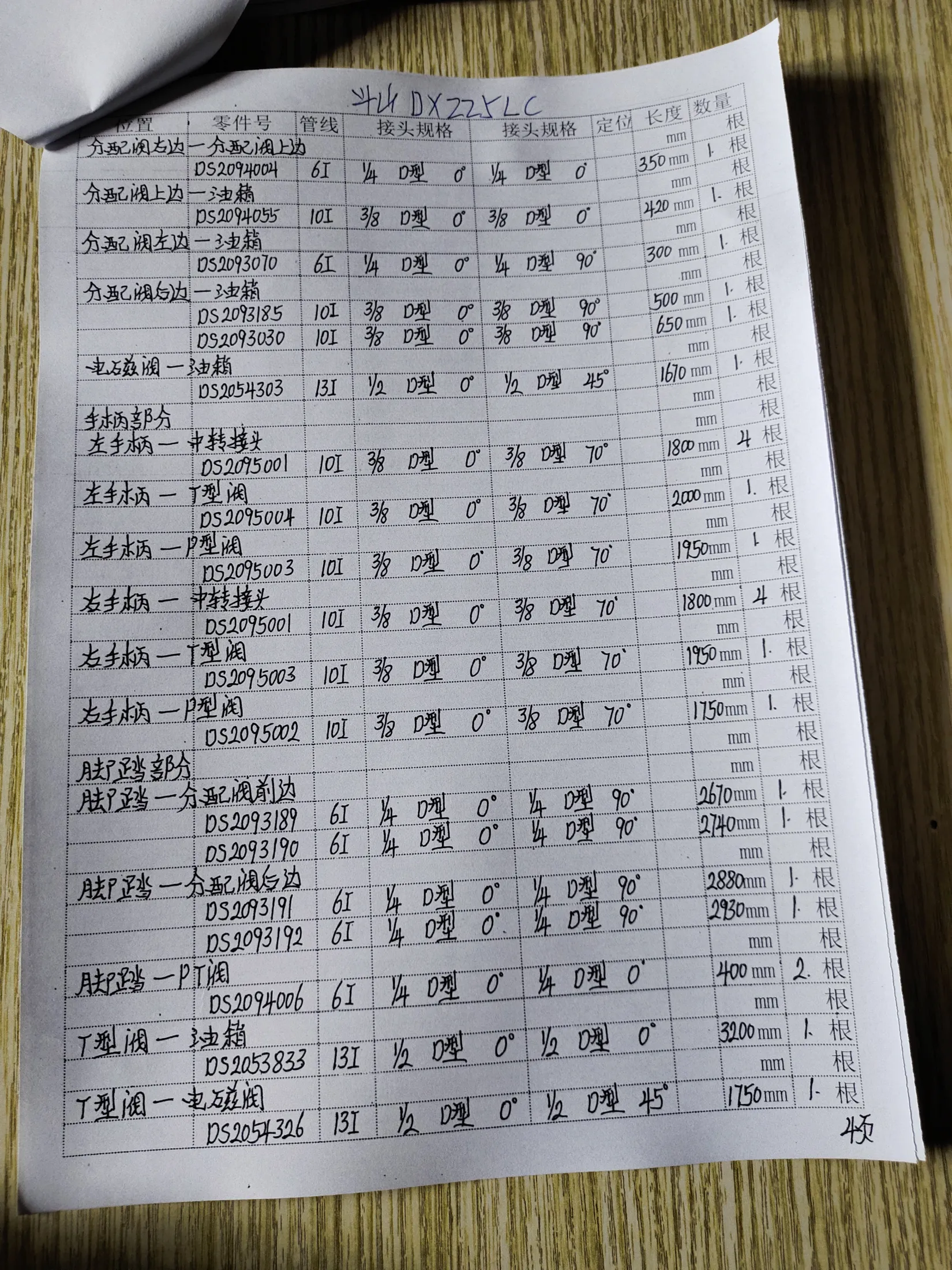

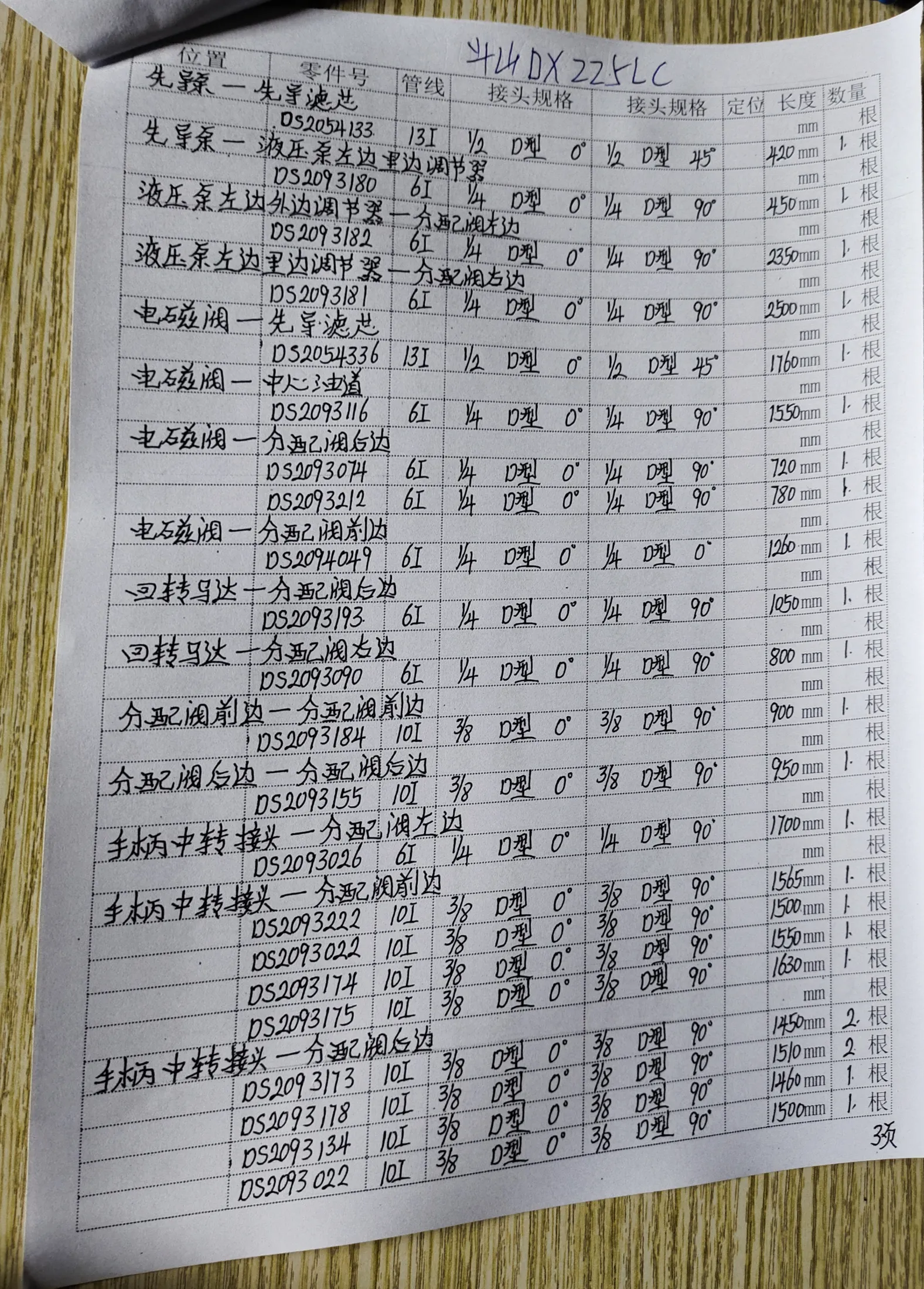

View sanitized source page — Handwritten field sheet 4 of 5
View sanitized source page — Handwritten field sheet 1 of 5

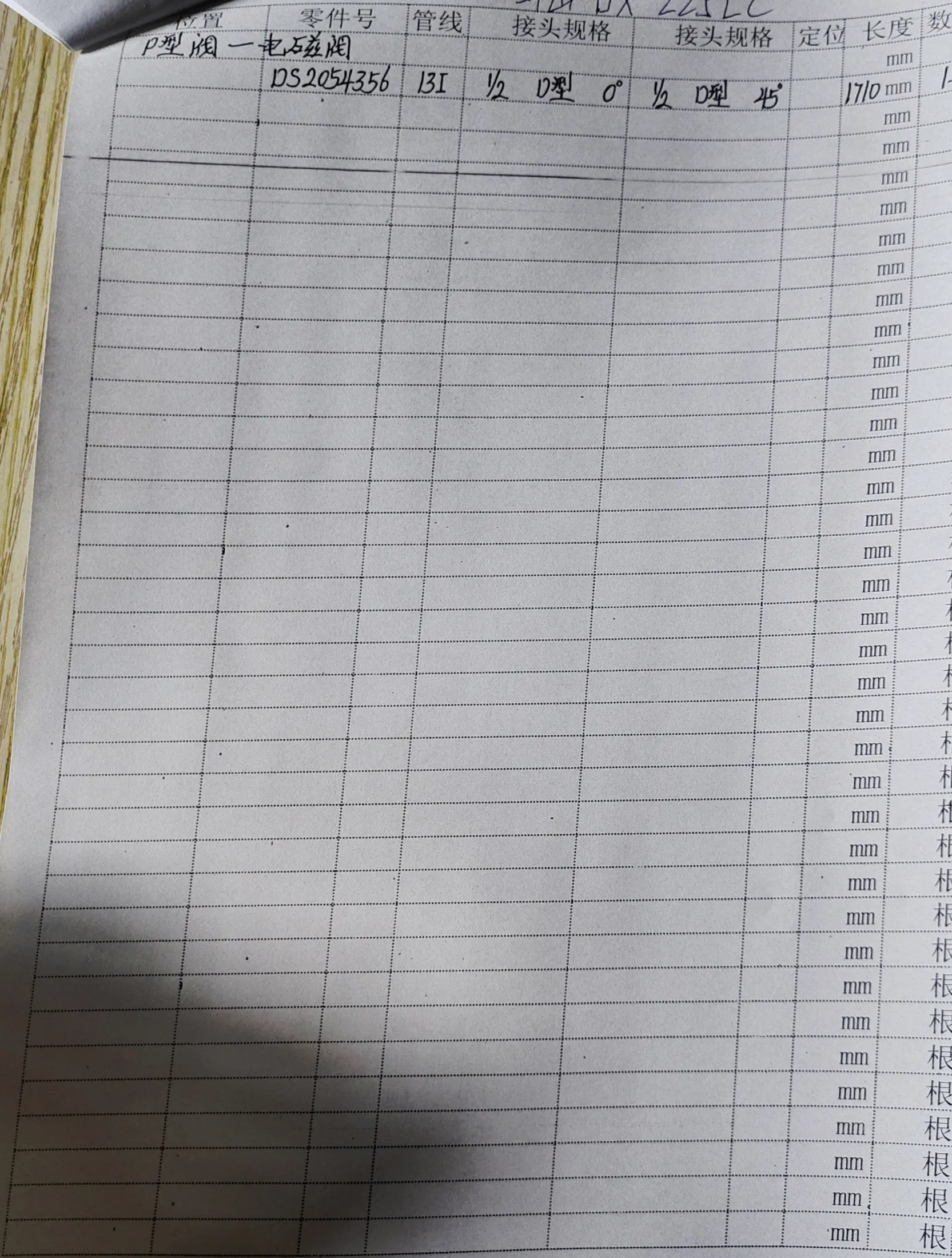

View sanitized source page — Handwritten field sheet 3 of 5

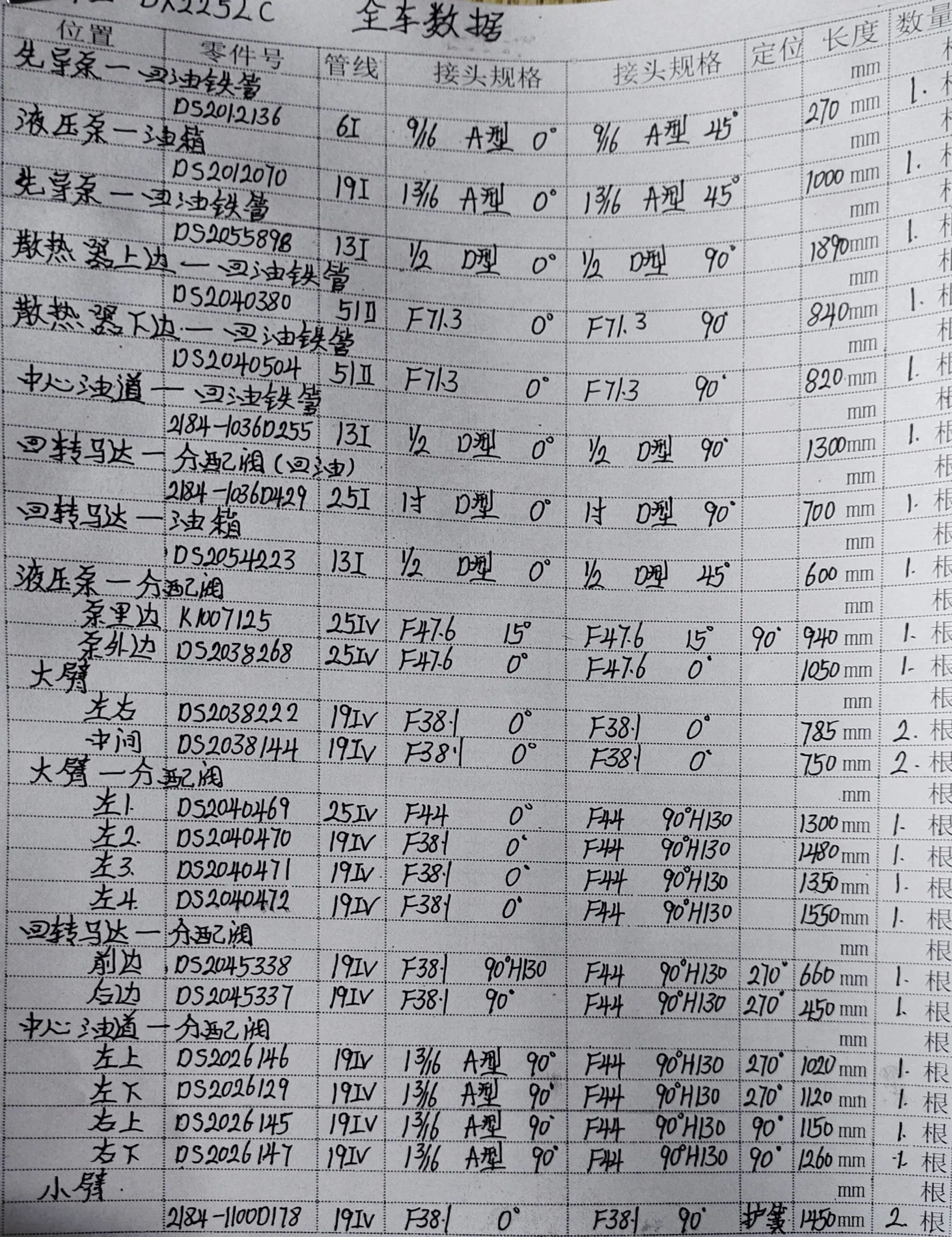

View sanitized source page — Handwritten field sheet 2 of 5
View sanitized source page — Handwritten field sheet 5 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 420 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 950 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 650 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Length
- 840 mm
- Specification
- DN51;2SN-32;8MPa
- Left fitting
- Light-series flangeChinese source: 法兰-轻型
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 800 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatChinese source: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatChinese source: 90°英制内螺纹60°外锥
