- Length
- 880 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
Hydraulic line repair data
Hitachi ZX210LC-5G Hose Length & Fitting Data
Hitachi ZX210LC-5G has published hose-length and fitting references plus independent handwritten part-number/length matches. Handwritten evidence is corroboration only; verify the route, both fittings, and every repair dimension before fabrication.
- Published hoses
- 0 records
- Complete repair data
- 0 records
Automatically matched corroboration
Independent handwritten source
Automatically matched handwritten observations and related source pages can help cross-check a model, part number, or length. Image-only pages indicate related material, not a confirmed manufacturing specification.
| Source | Match basis | Observed part number | Observed length | Confidence | Publication status |
|---|---|---|---|---|---|
| Handwritten field sheet 3 of 5 | Part number length exact | 4648912 | 950 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 4427357 | 250 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 4643029 | 550 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | 4450505 | 2,500 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | 4449378 | 2,400 mm | High | Published |
| Handwritten field sheet 2 of 5 | Part number length exact | 4676587 | 880 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 4644625 | 680 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 4630949 | 560 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 4334456 | 2,150 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 4227045 | 650 mm | High | Published |
| Handwritten field sheet 4 of 5 | Part number length exact | 4707581 | 2,200 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 9268625 | 950 mm | High | Published |
| Handwritten field sheet 1 of 5 | Part number length exact | 4626741 | 950 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 4630952 | 750 mm | High | Published |
| Handwritten field sheet 5 of 5 | Part number length exact | 4213401 | 500 mm | High | Published |
| Handwritten field sheet 3 of 5 | Part number length exact | 4427111 | 700 mm | High | Published |

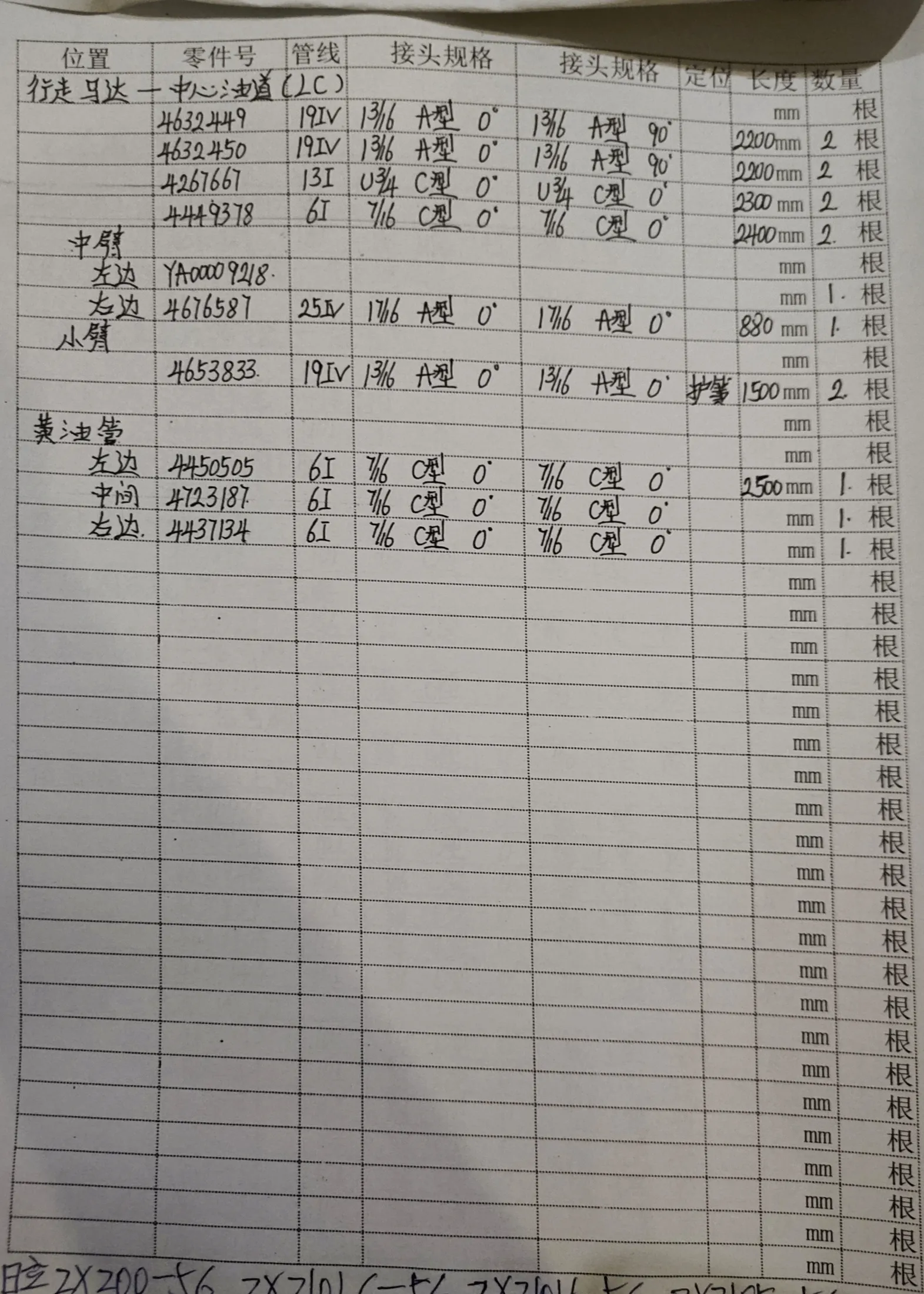

View sanitized source page — Handwritten field sheet 3 of 5

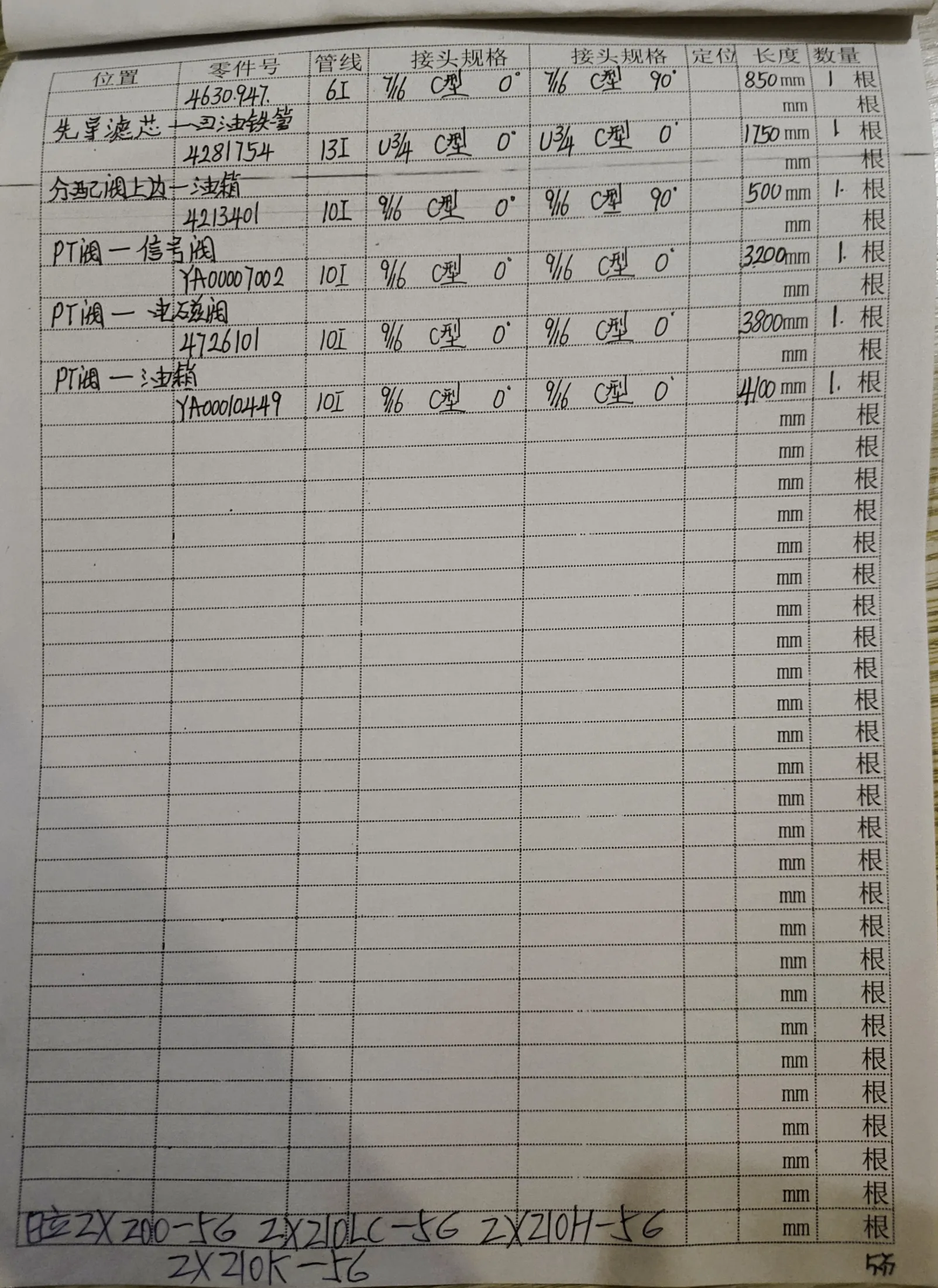

View sanitized source page — Handwritten field sheet 4 of 5

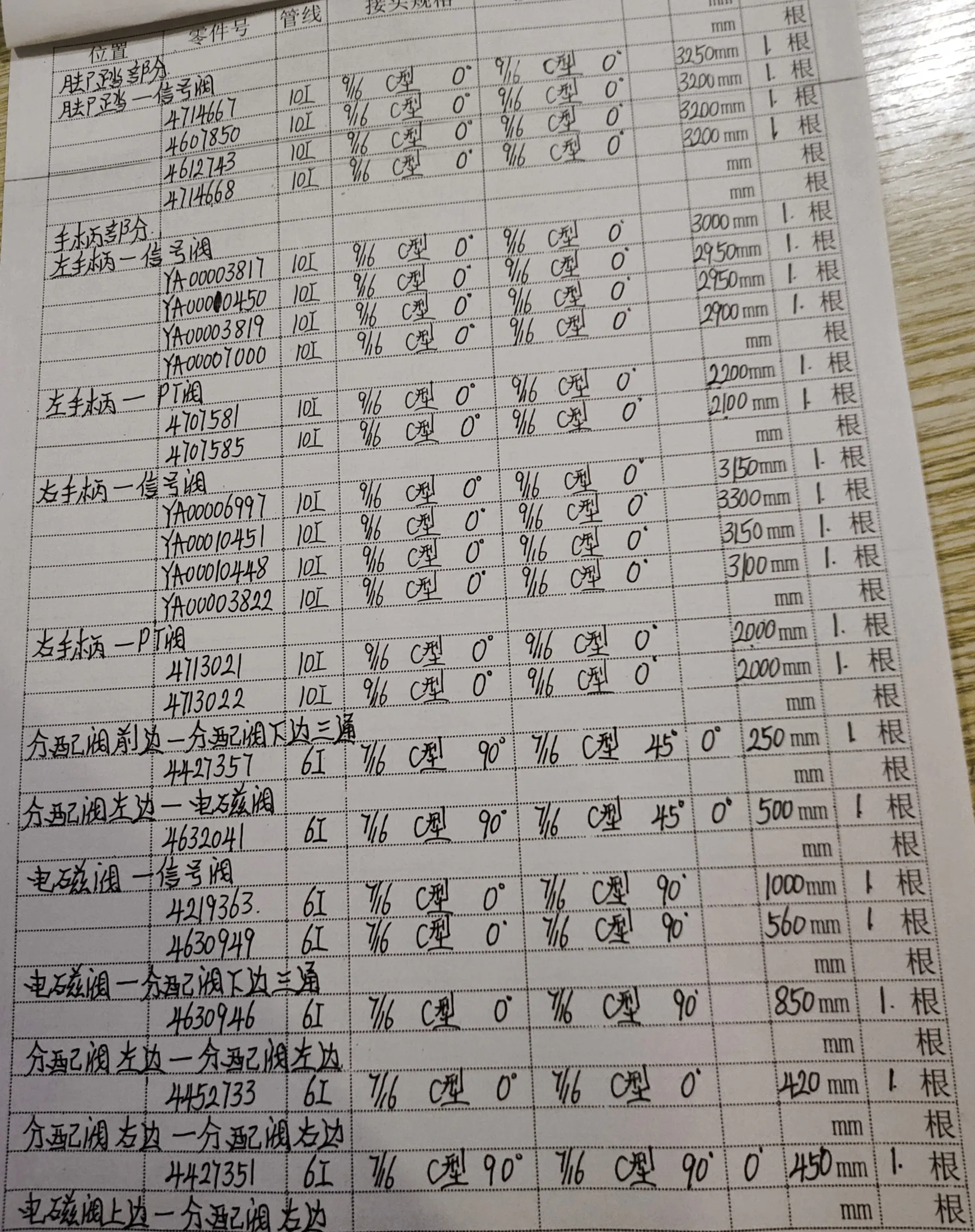

View sanitized source page — Handwritten field sheet 2 of 5

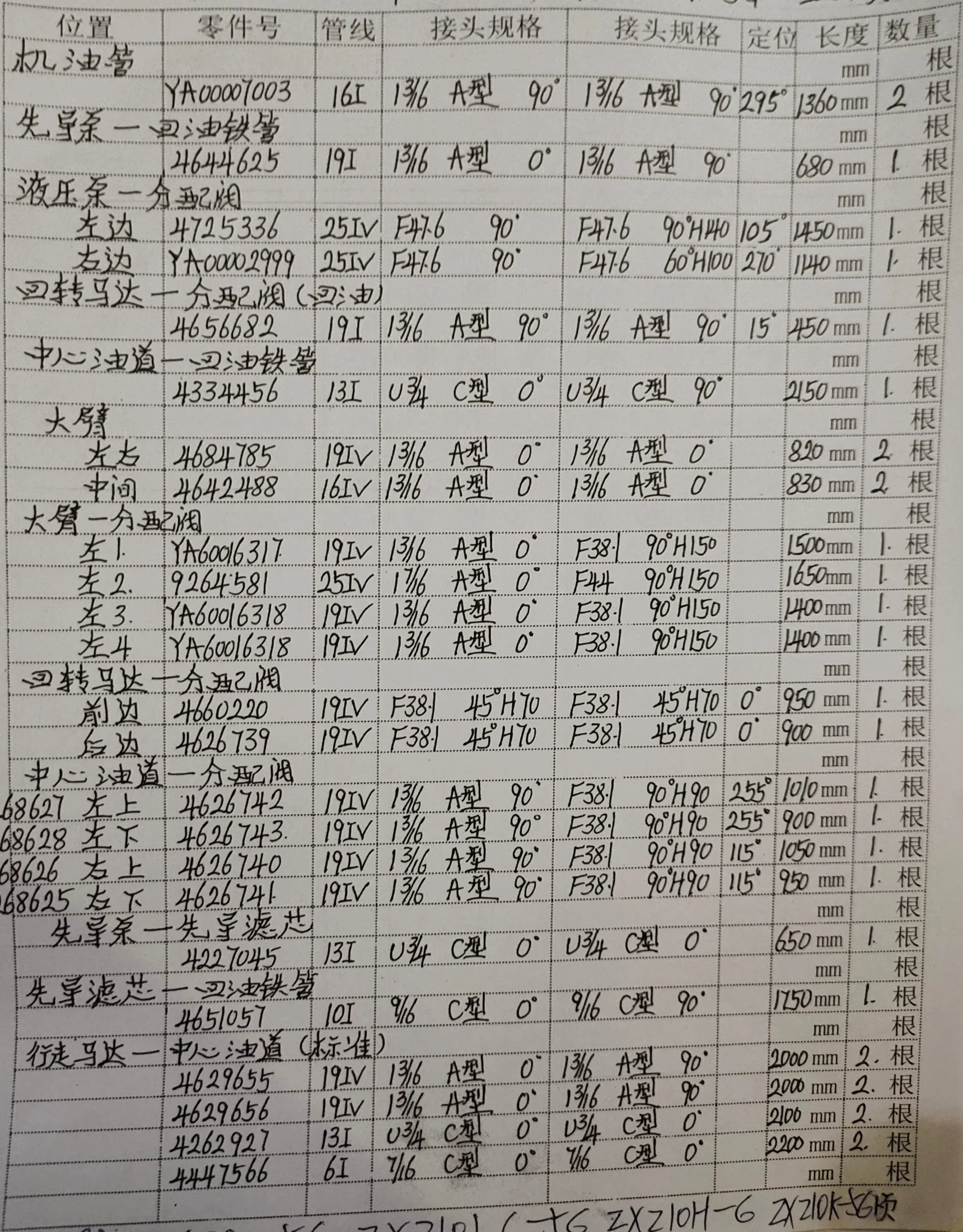

View sanitized source page — Handwritten field sheet 1 of 5

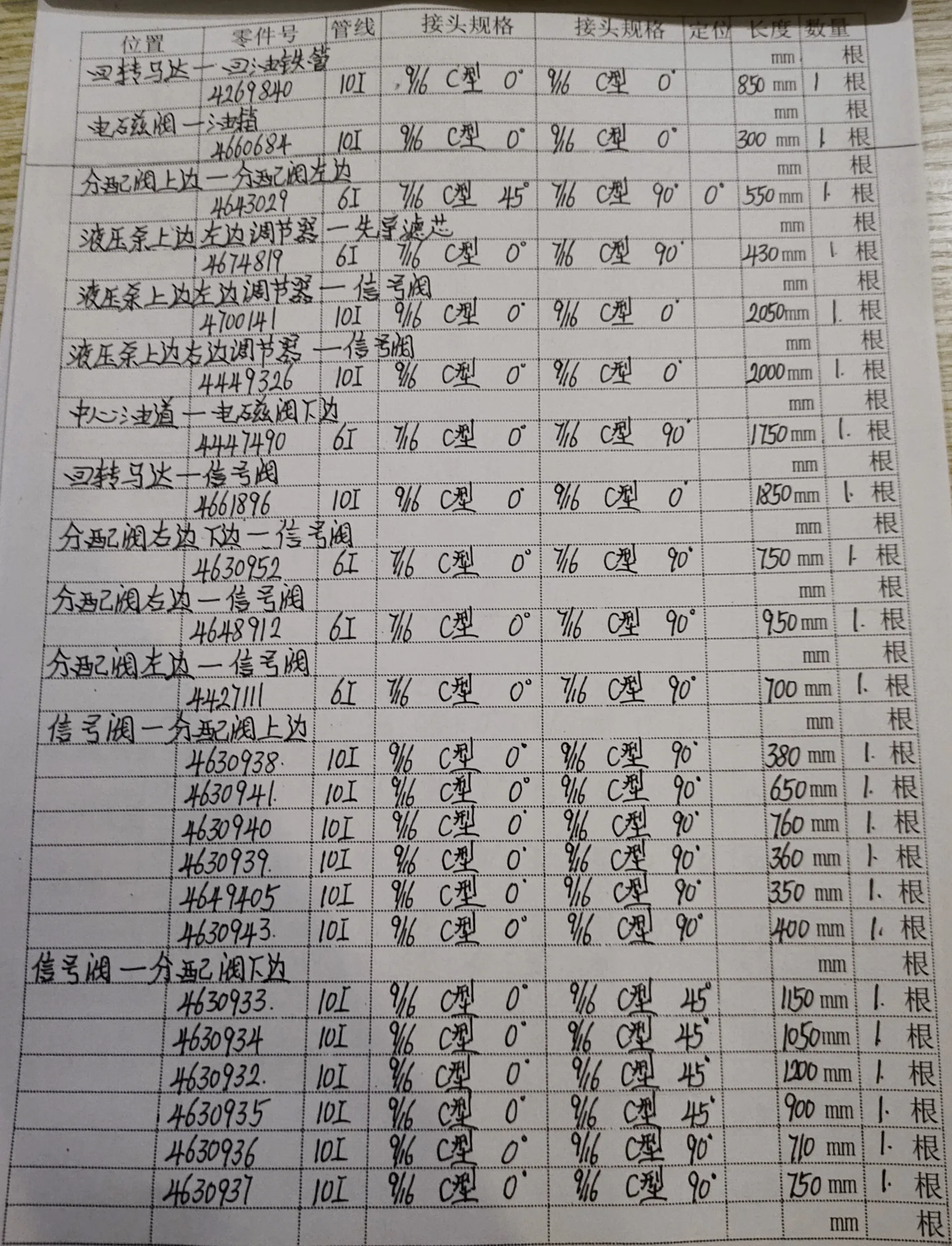

View sanitized source page — Handwritten field sheet 5 of 5
Shareable individual records
Hose Length and Fitting List
- Length
- 2,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 45°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 950 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 950 mm
- Specification
- DN19;4SP-12;28Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Right fitting
- 90° light-series flangeChinese source: 90°法兰-轻型
- Length
- 2,400 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 2,500 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 250 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 45°美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 750 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 2,150 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 650 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 680 mm
- Specification
- DN19;2SN-12;21.5MPa
- Left fitting
- American female thread, flat-face sealChinese source: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealChinese source: 90°美制内螺纹平面密封
- Length
- 560 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 500 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 700 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
