Komatsu PC400-6 Hydraulic Hose Workshop Notes

View technician notebook pages for the Komatsu PC400-6, including hydraulic hose part numbers and recorded lengths. Confirm each hose on the machine before fabrication.

Workshop measurements

Technician notebook

Use these workshop sheets to find a part number or recorded hose length. Confirm the final length and both fittings on the machine before fabrication.

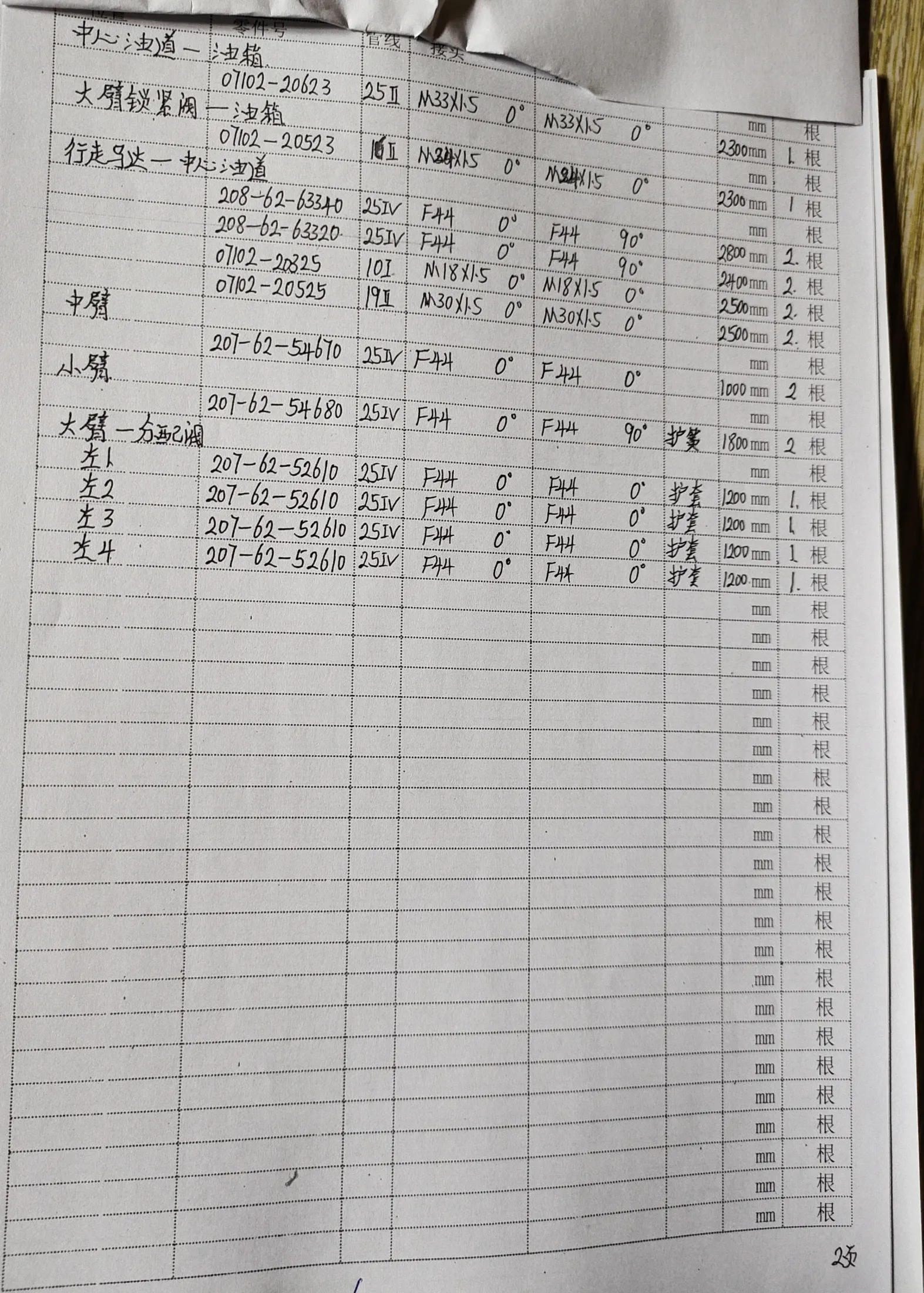

View workshop note — Handwritten field sheet 4 of 4Workshop notebook page

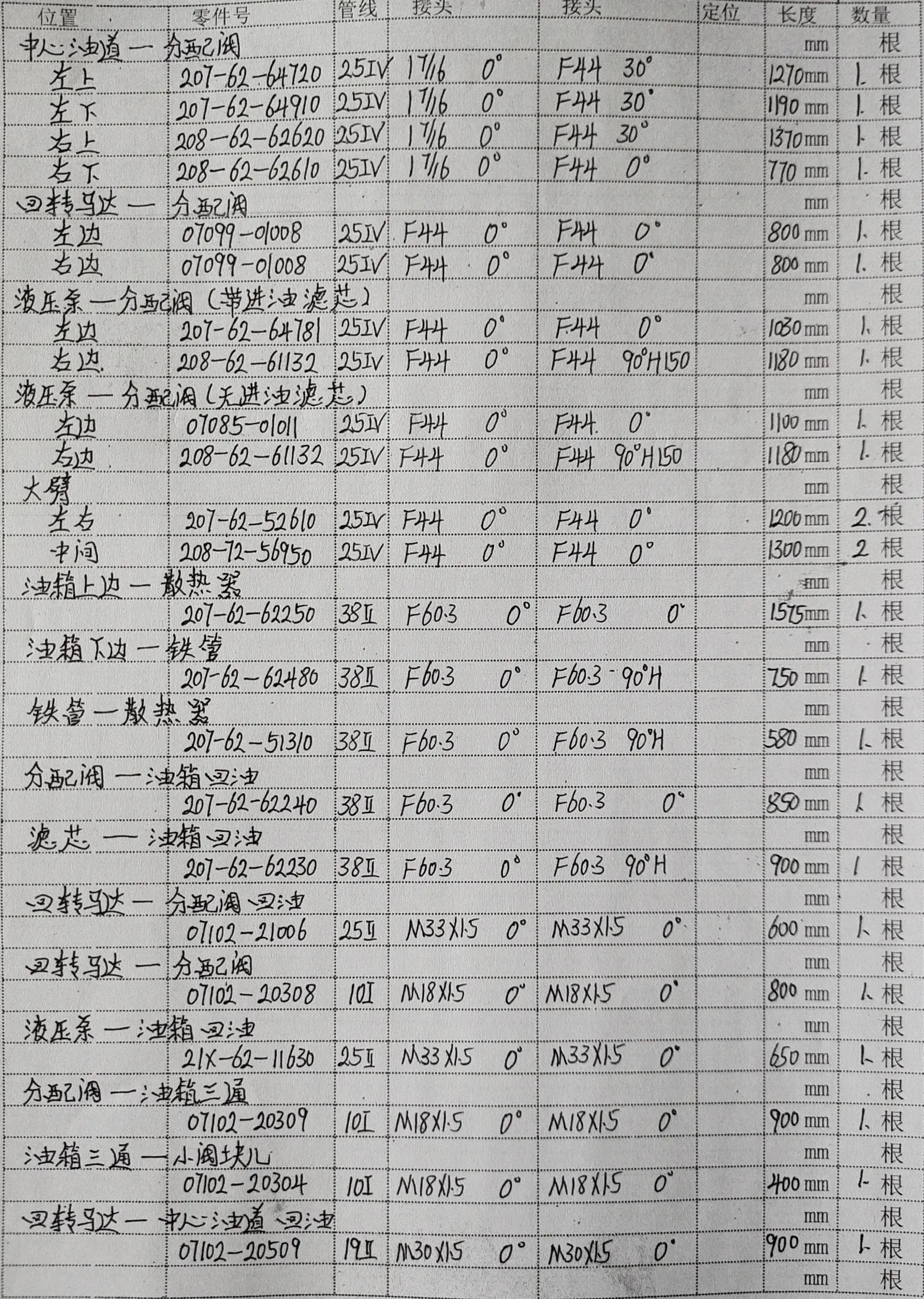

View workshop note — Handwritten field sheet 1 of 4Workshop notebook page

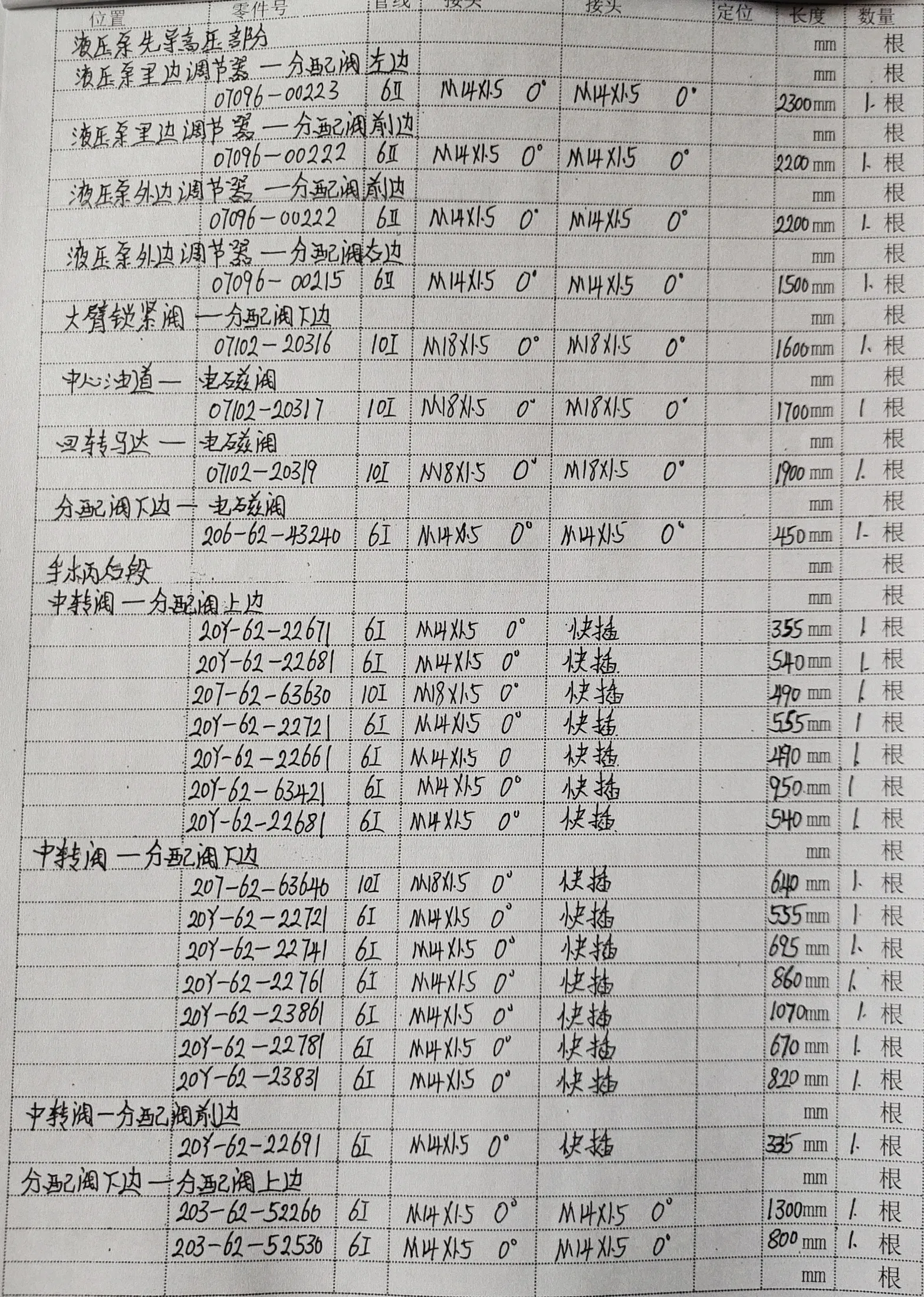

View workshop note — Handwritten field sheet 3 of 4Workshop notebook page

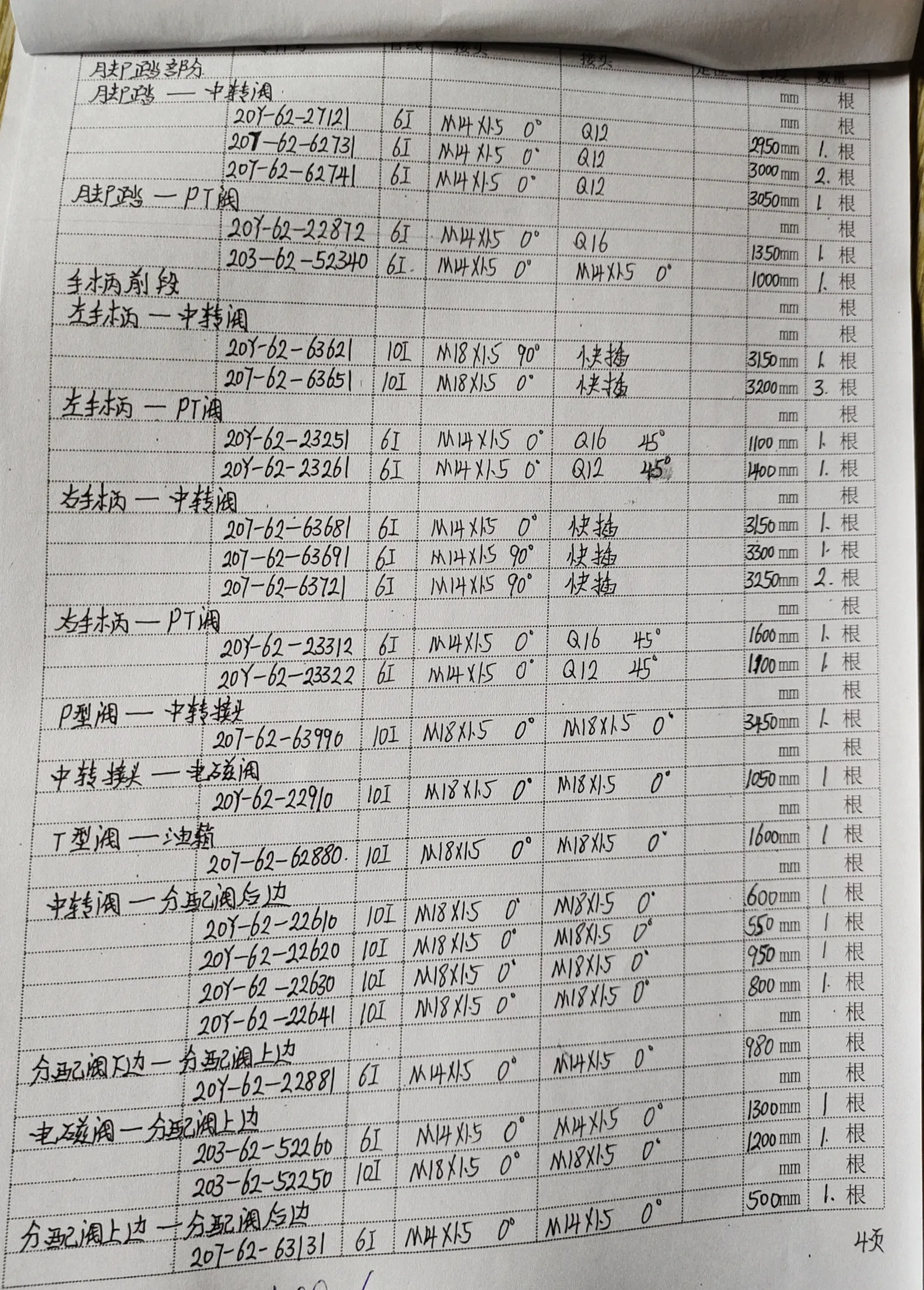

View workshop note — Handwritten field sheet 2 of 4Workshop notebook page
