Volvo EC240B LC Hydraulic Hose Workshop Notes

View technician notebook pages for the Volvo EC240B LC, including hydraulic hose part numbers and recorded lengths. Confirm each hose on the machine before fabrication.

Workshop measurements

Technician notebook

Use these workshop sheets to find a part number or recorded hose length. Confirm the final length and both fittings on the machine before fabrication.

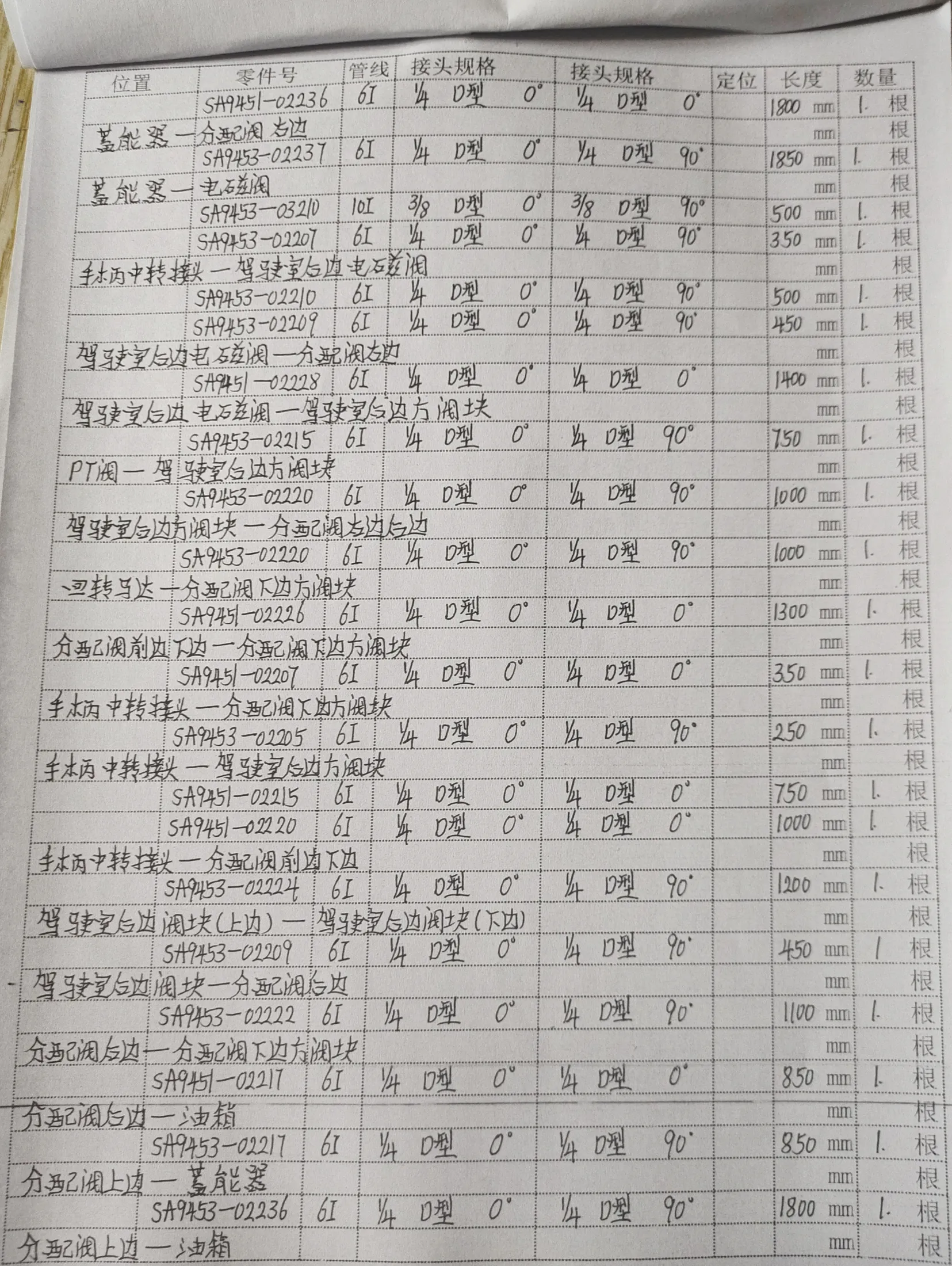

View workshop note — Handwritten field sheet 3 of 5Workshop notebook page

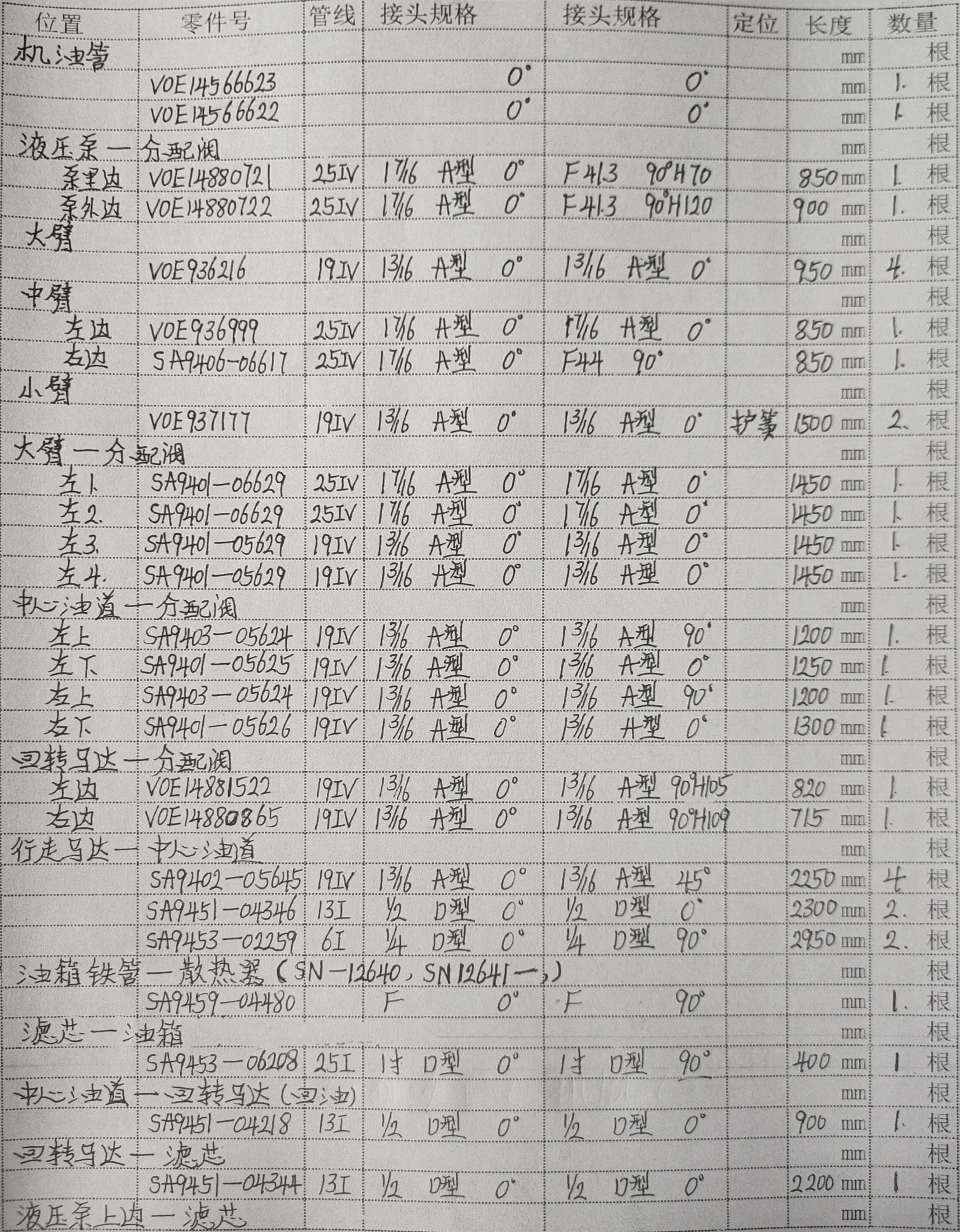

View workshop note — Handwritten field sheet 5 of 5Workshop notebook page

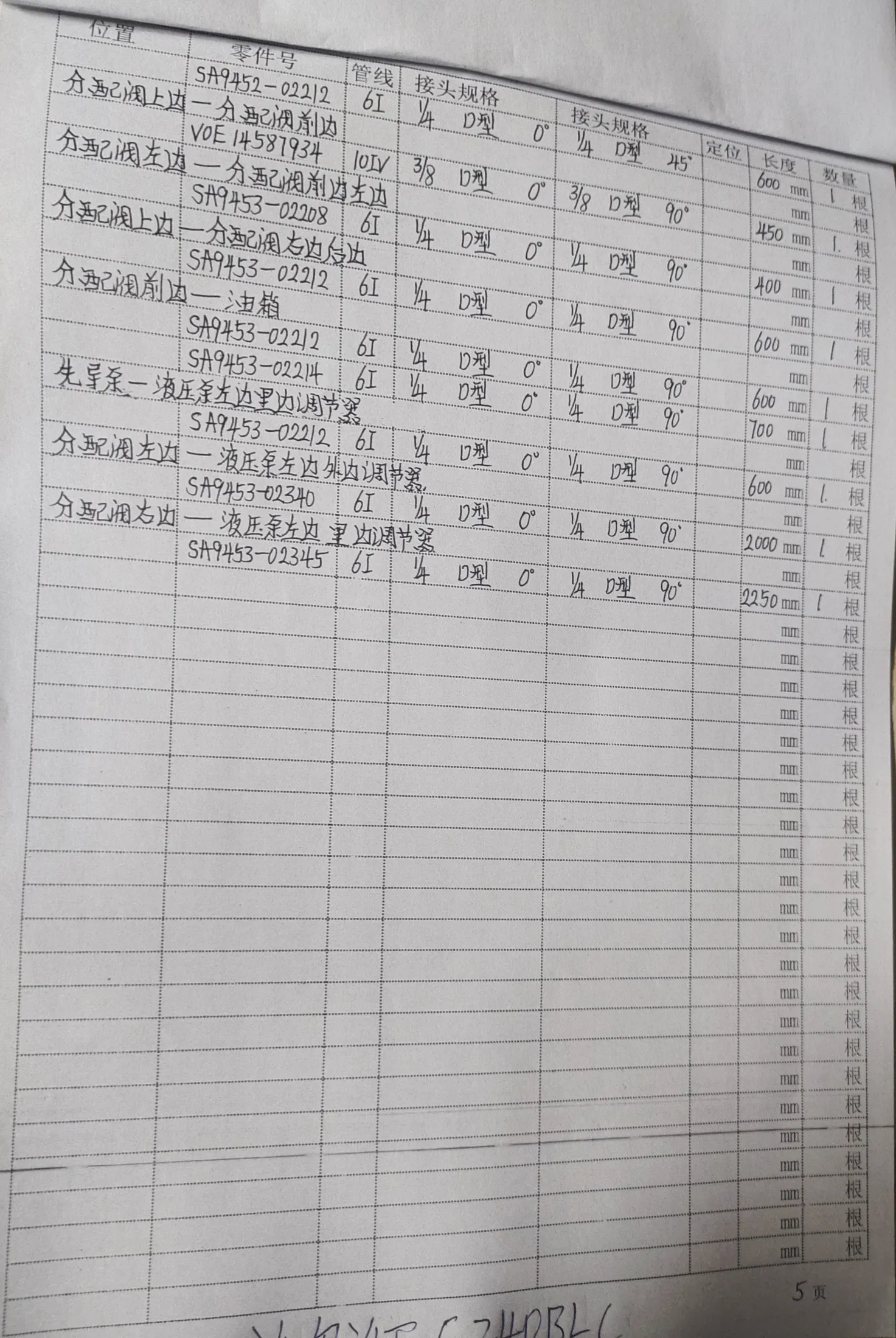

View workshop note — Handwritten field sheet 4 of 5Workshop notebook page

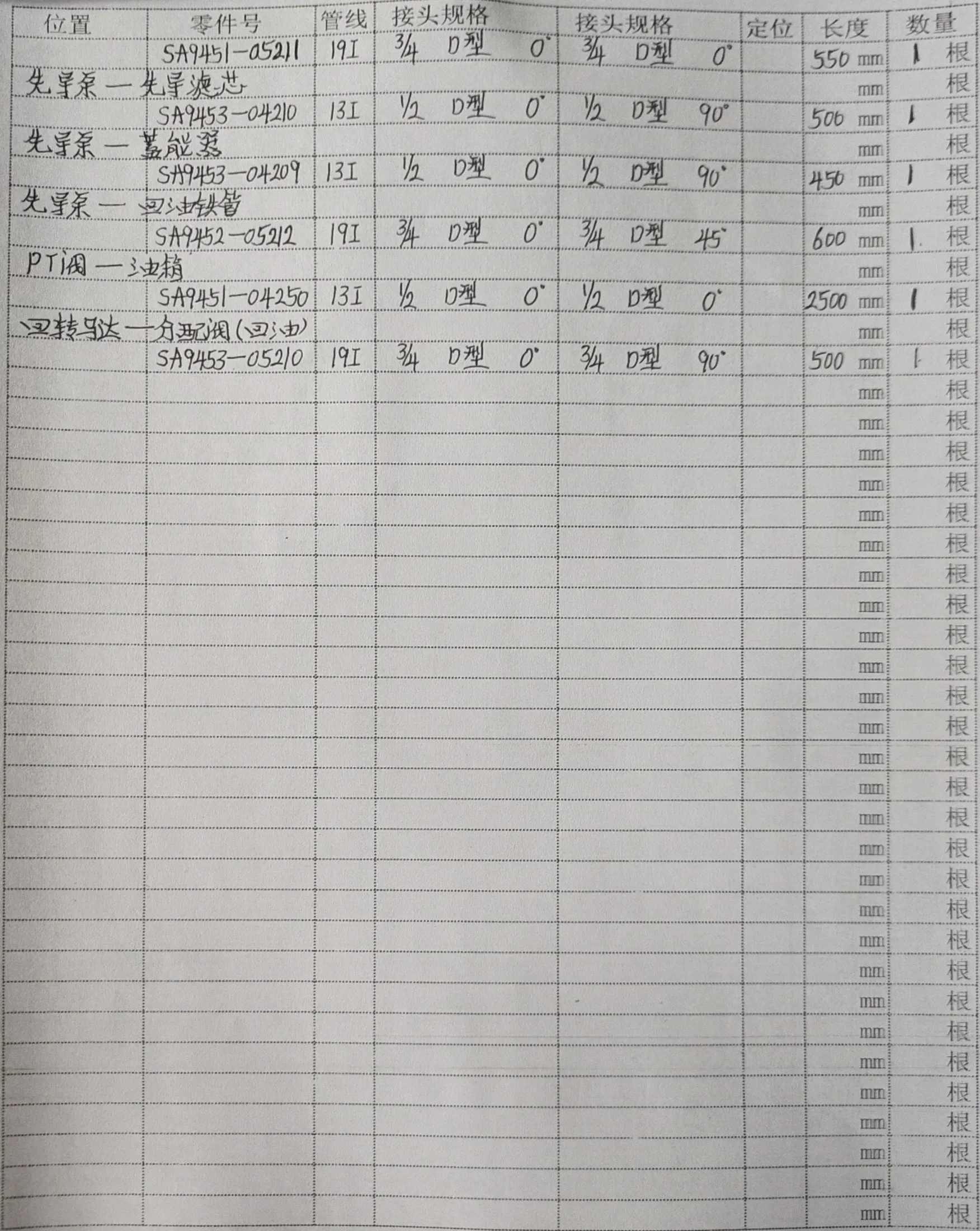

View workshop note — Handwritten field sheet 2 of 5Workshop notebook page

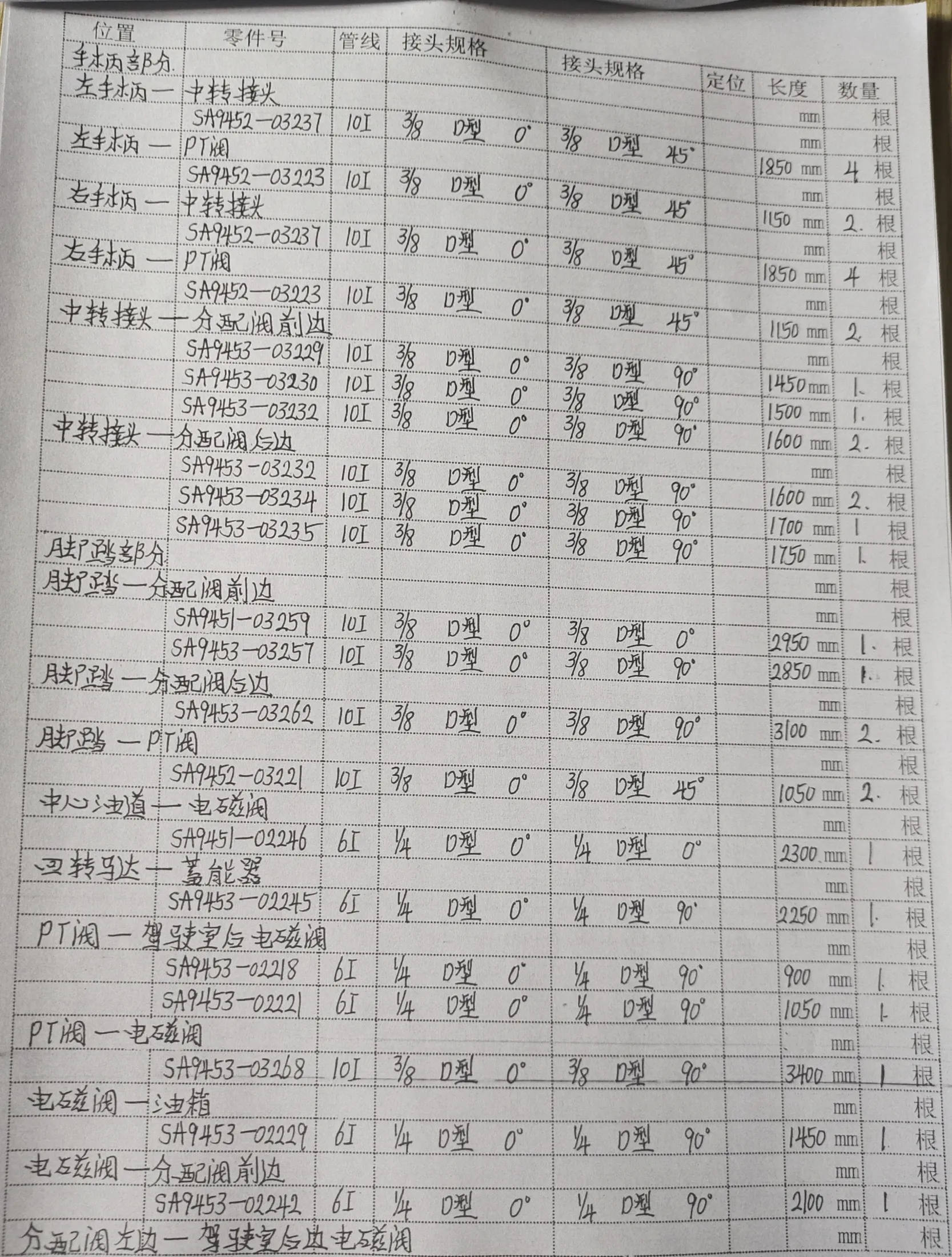

View workshop note — Handwritten field sheet 1 of 5Workshop notebook page
