4313443 Hose Repair Specifications

Excavator · Hitachi · ZX270LC · Swivel Joint

Finished length2,500 mm

Locate this hose

Installation diagram — Pipe No. 15A

Locate Pipe No. 15A in the diagram, then confirm part number 4313443 before removing the hose.

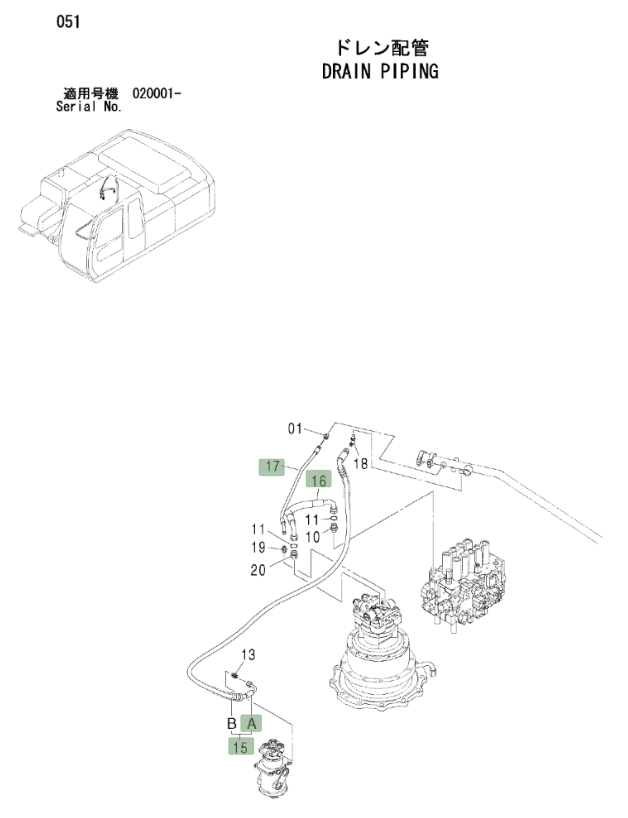

Hitachi ZX270LC installation diagram showing hydraulic hose 4313443 at Pipe No. 15A — **Hitachi ZX270LC**Part 4313443 · Pipe No. 15AOpen full-size diagram

Repair specifications

Part number: 4313443
Diagram pipe number: 15A
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN13;1SN-08;16MPa
Finished length: 2,500 mm
Working pressure: 16 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
