Individual hose record

4284508 Hose Repair Specifications

Excavator · Hitachi · ZX270LC · Swivel Joint

Finished length2,300 mm

Locate this hose

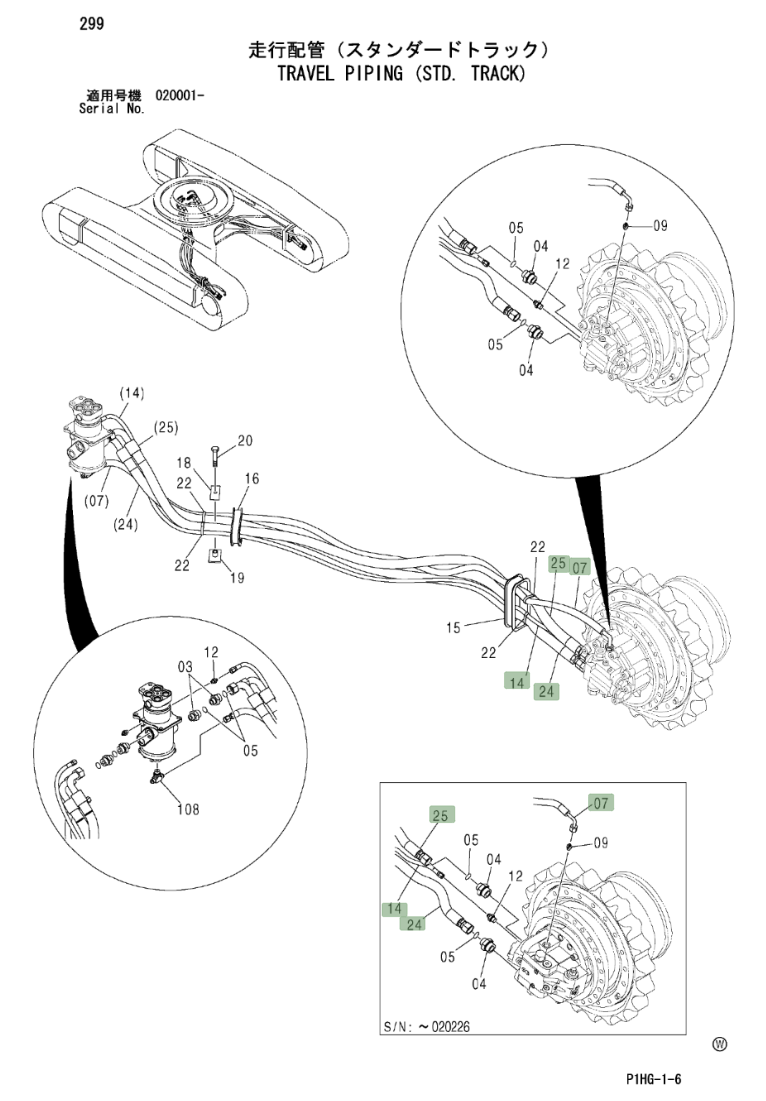

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 4284508 before removing the hose.

Hitachi ZX270LC installation diagram showing hydraulic hose 4284508 at Pipe No. 24 — **Hitachi ZX270LC**Part 4284508 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 4284508
Diagram pipe number: 24
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN25;4SP-16;32Mpa
Finished length: 2,300 mm
Working pressure: 32 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15A

4313443

Installation route: 回转接头~回油铁管(液压油箱)

Length: 2,500 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 7

4459641

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,550 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 7

4438098

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4377482

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

4437938

Installation route: 回转接头~电磁阀

Length: 1,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 14

4429283

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 14

4450505

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4284507

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications
