Individual hose record

4409091 Hose Repair Specifications

Excavator · Hitachi · ZX160LC · Attachments – Quick Coupler

Finished length1,770 mm

Locate this hose

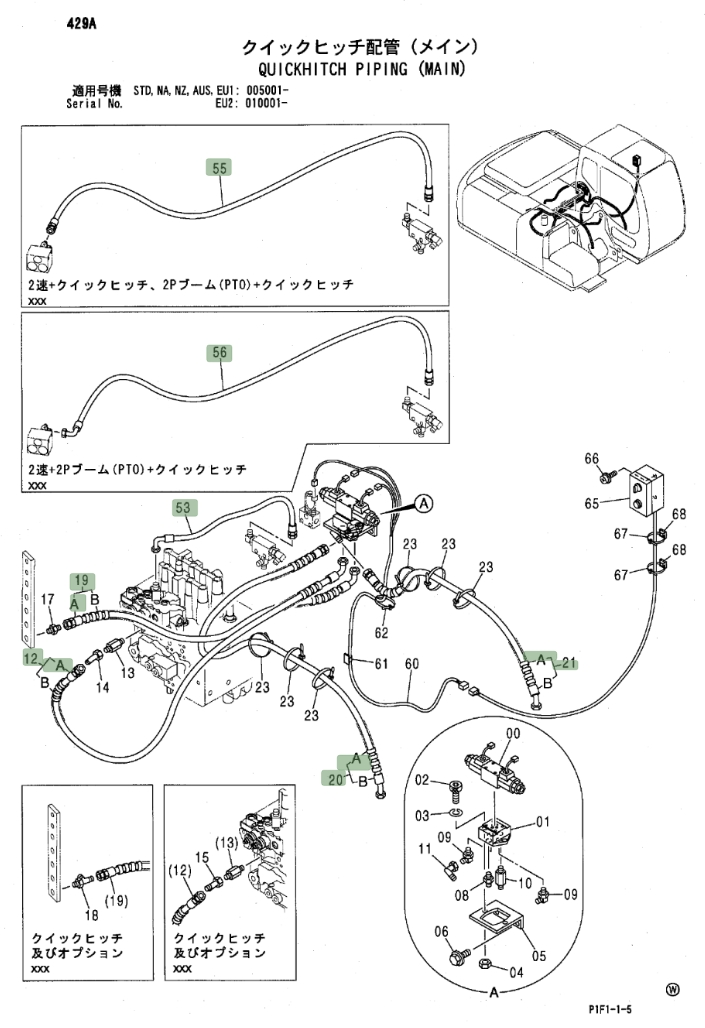

Installation diagram — Pipe No. 20A

Locate Pipe No. 20A in the diagram, then confirm part number 4409091 before removing the hose.

Hitachi ZX160LC installation diagram showing hydraulic hose 4409091 at Pipe No. 20A — Hitachi ZX160LCPart 4409091 · Pipe No. 20AOpen full-size diagram

Repair specifications

Part number: 4409091
Diagram pipe number: 20A
Installation route: 大臂(快换)~控制阀(快换)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 1,770 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 45

4360873

Installation route: 中转接头~过渡阀块(快换踏板)

Length: 950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 50

4480078

Installation route: 中转接头~过渡阀块(快换)

Length: 300 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 46

4451995

Installation route: 电磁阀(快换)~过渡阀块(快换踏板)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 46

4451995

Installation route: 电磁阀(快换)~过渡阀块(快换)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 20

9228612

Installation route: 大臂(快换)~控制阀(快换)

Length: 1,770 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 47

4442331

Installation route: 电磁阀~电磁阀(快换)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 51

4371270

Installation route: 分配阀左~过渡阀块(快换)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
