- Length
- 320 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
KHJ2291 Hose Repair Specifications
Excavator · Case · CX250C · Hydraulic Tank
Finished length240 mm
Locate this hose

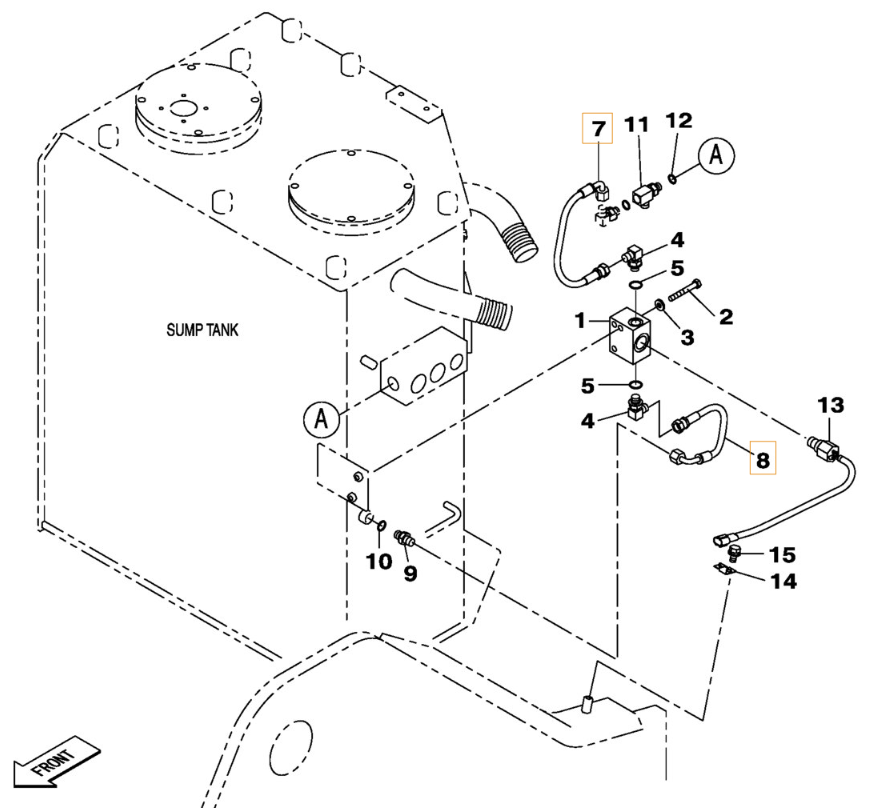

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number KHJ2291 before removing the hose.
Repair specifications
- Part number
- KHJ2291
- Diagram pipe number
- 8
- Installation route
- 液压油箱~过渡阀块底(液压油箱)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 240 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
