Individual hose record

KHJ2169 Hose Repair Specifications

Excavator · Case · CX750D RTC · Control Valve

Finished length450 mm

Locate this hose

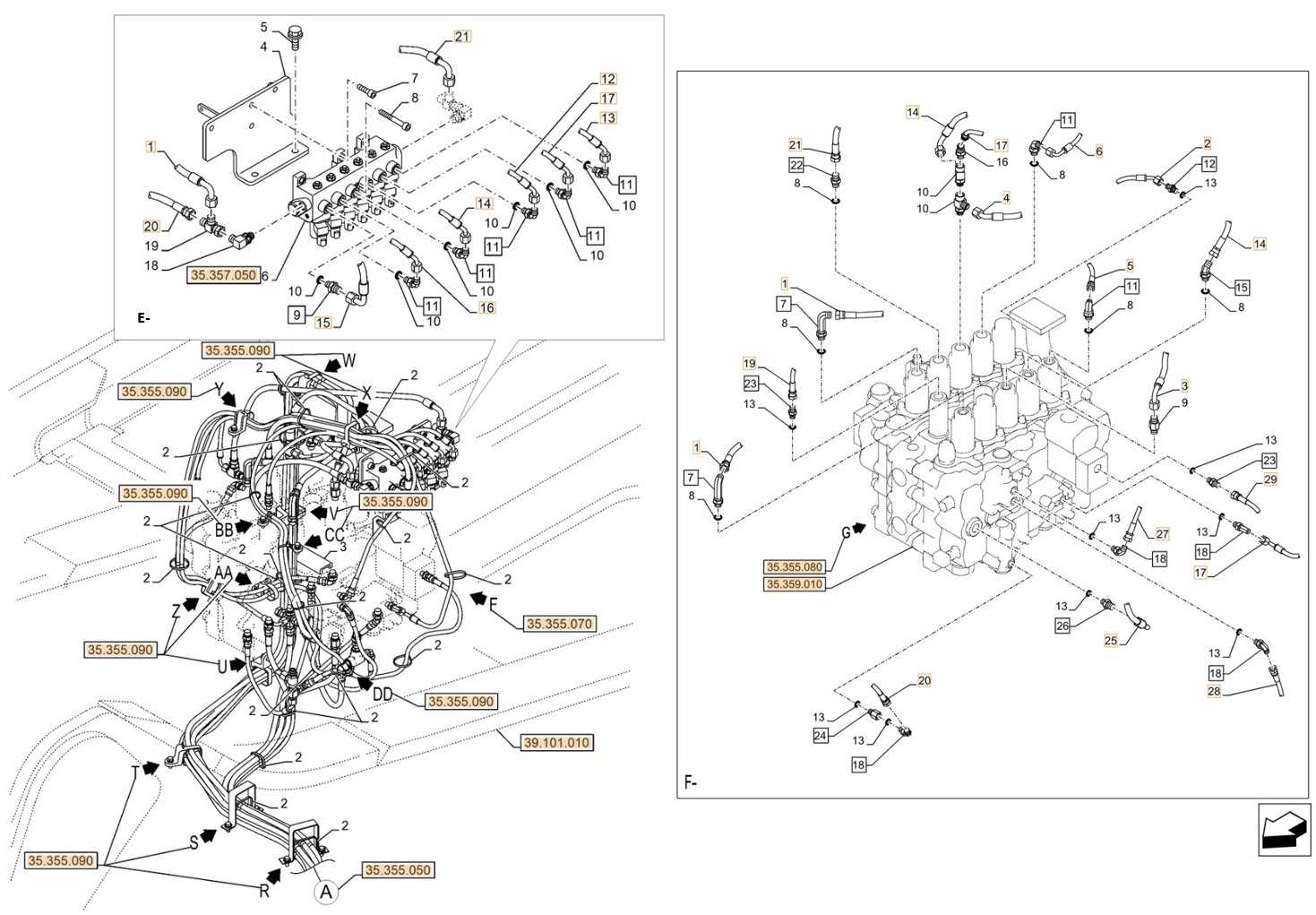

Installation diagram — Pipe No. F14-F14

Locate Pipe No. F14-F14 in the diagram, then confirm part number KHJ2169 before removing the hose.

Case CX750D RTC installation diagram showing hydraulic hose KHJ2169 at Pipe No. F14-F14 — **Case CX750D RTC**Part KHJ2169 · Pipe No. F14-F14Open full-size diagram

Repair specifications

Part number: KHJ2169
Diagram pipe number: F14-F14
Installation route: 分配阀顶左~分配阀顶右
Hose specification: DN10;1SN-06;18MPa
Finished length: 450 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

KHJ2093

Installation route: 分配阀前~液压油箱过渡阀块

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

KHJ2440

Installation route: 分配阀左~液压油箱过渡阀块

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. C10-F6

KHJ2147

Installation route: 分配阀顶右~接头(分配阀)

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. F28-G24

KHJ2394

Installation route: 分配阀左~分配阀底左

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

KHJ2180

Installation route: 分配阀左~液压油箱过渡阀块

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. F27-G10

KHJ11170

Installation route: 分配阀左~分配阀右

Length: 1,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. E12-F19

KHJ14650

Installation route: 分配阀顶~电磁阀(分配阀)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 33

KHJ2195

Installation route: 分配阀左~分配阀底左

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
