Individual hose record

KHJ2195 Hose Repair Specifications

Excavator · Case · CX750D RTC · Control Valve

Finished length680 mm

Locate this hose

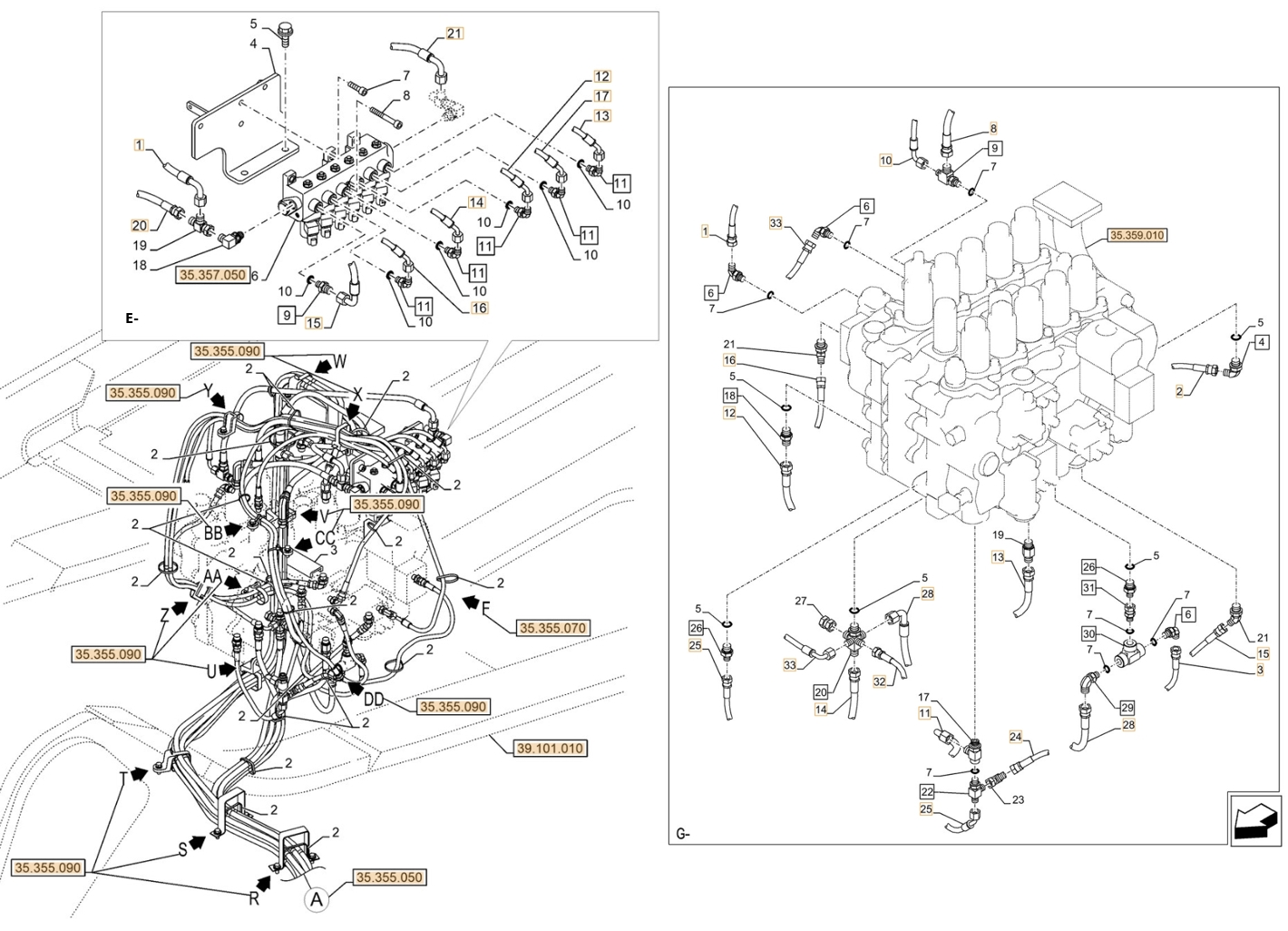

Installation diagram — Pipe No. 33

Locate Pipe No. 33 in the diagram, then confirm part number KHJ2195 before removing the hose.

Case CX750D RTC installation diagram showing hydraulic hose KHJ2195 at Pipe No. 33 — **Case CX750D RTC**Part KHJ2195 · Pipe No. 33Open full-size diagram

Repair specifications

Part number: KHJ2195
Diagram pipe number: 33
Installation route: 分配阀左~分配阀底左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 680 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
