Individual hose record

DS2011037 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Control Lever

Finished length960 mm

Locate this hose

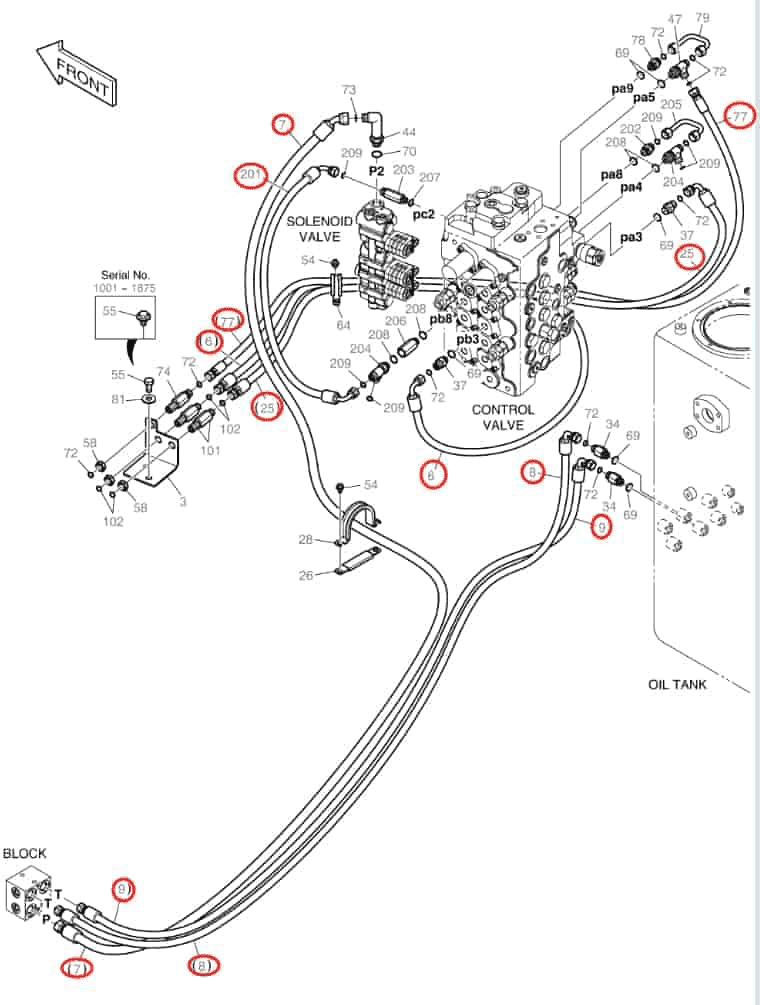

Installation diagram — Pipe No. 77

Locate Pipe No. 77 in the diagram, then confirm part number DS2011037 before removing the hose.

Part number: DS2011037
Diagram pipe number: 77
Installation route: 中转接头~分配阀PA5口
Hose specification: DN10;1SN-06;18MPa
Finished length: 960 mm
Working pressure: 18 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: 中转接头~分配阀PB3口

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 模式转换阀D2口~分配阀PA8口

Length: 370 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
