Individual hose record

DS2093181 Hose Repair Specifications

Excavator · Doosan · DX55 · Attachments – Breaker

Finished length2,500 mm

Locate this hose

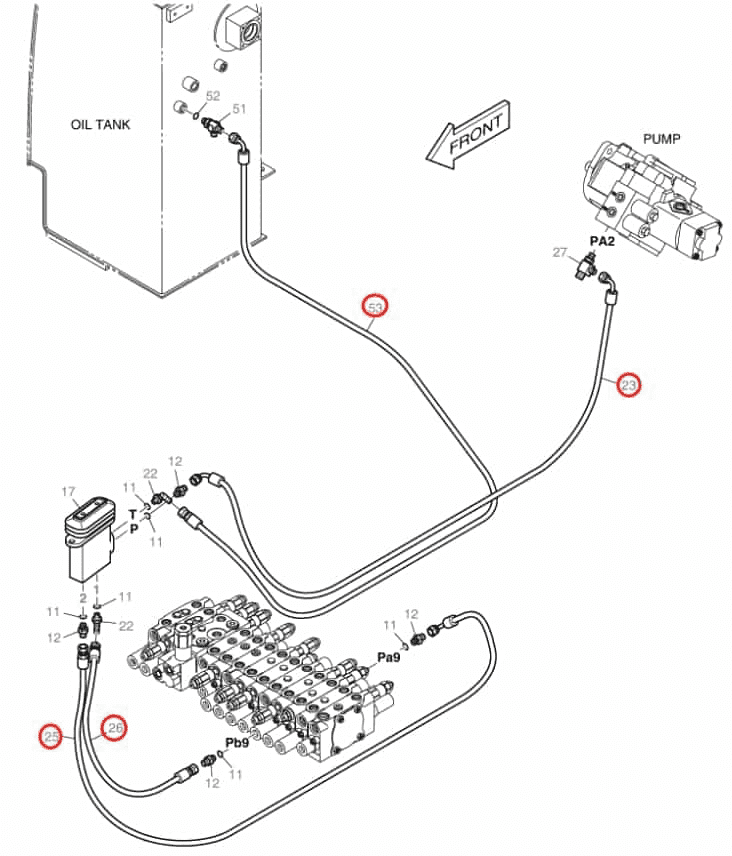

Installation diagram — Pipe No. 53

Locate Pipe No. 53 in the diagram, then confirm part number DS2093181 before removing the hose.

Part number: DS2093181
Diagram pipe number: 53
Installation route: 破碎器踏板T口~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 39

Installation route: 大臂(破碎器)~分配阀A9口

Length: 3,600 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 38

Installation route: 大臂(破碎器)~分配阀B9口

Length: 3,600 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
