Individual hose record

2184-1036D311 Hose Repair Specifications

Excavator · Doosan · DX55 · Attachments – Breaker

Finished length3,600 mm

Locate this hose

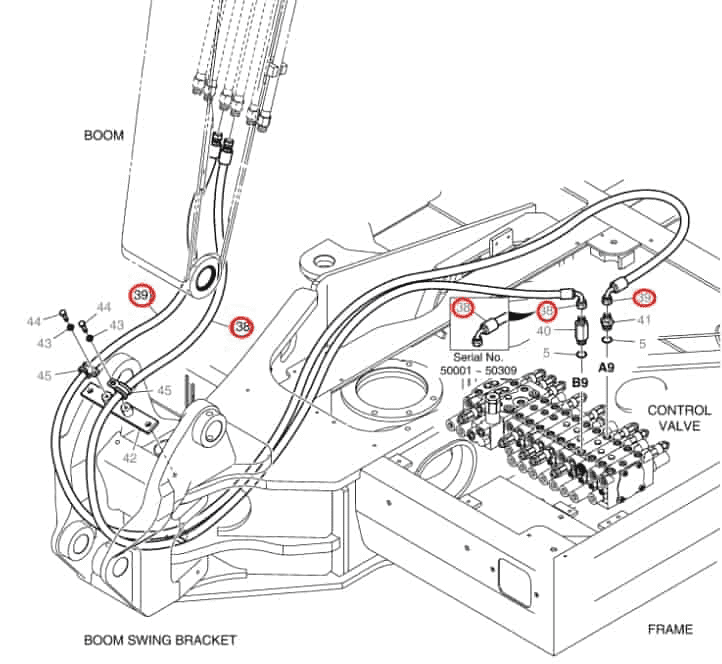

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 2184-1036D311 before removing the hose.

Part number: 2184-1036D311
Diagram pipe number: 38
Installation route: 大臂(破碎器)~分配阀B9口
Hose specification: DN10;4SP-06;44.5MPa
Finished length: 3,600 mm
Working pressure: 44.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 53

Installation route: 破碎器踏板T口~液压油箱

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 39

Installation route: 大臂(破碎器)~分配阀A9口

Length: 3,600 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
