Individual hose record
DS2011605 Hose Repair Specifications
Excavator · Doosan · DX160LC · Boom Assembly
Finished length690 mm
Locate this hose

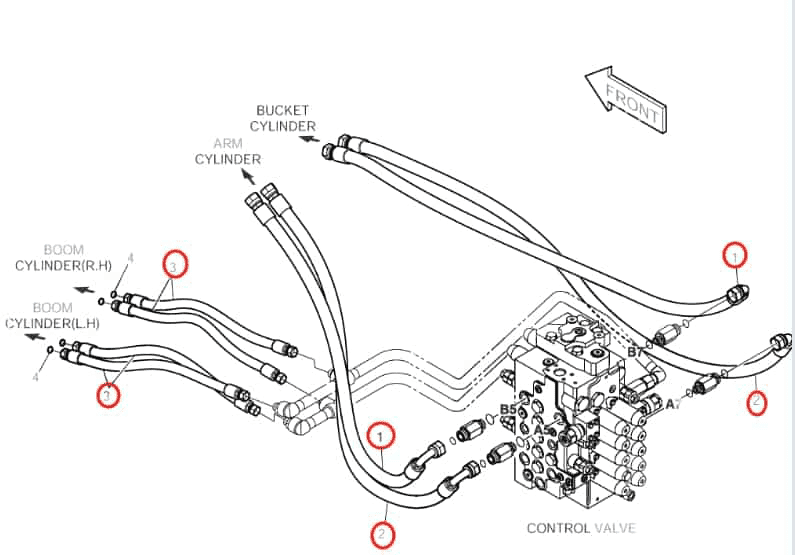

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number DS2011605 before removing the hose.
Repair specifications
- Part number
- DS2011605
- Diagram pipe number
- 3
- Installation route
- 大臂油缸
- Hose specification
- DN13;4SP-08;41.5MPa
- Finished length
- 690 mm
- Working pressure
- 41.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
