Individual hose record
DS2016061 Hose Repair Specifications
Excavator · Doosan · DX160LC · Boom Assembly
Finished length700 mm
Locate this hose

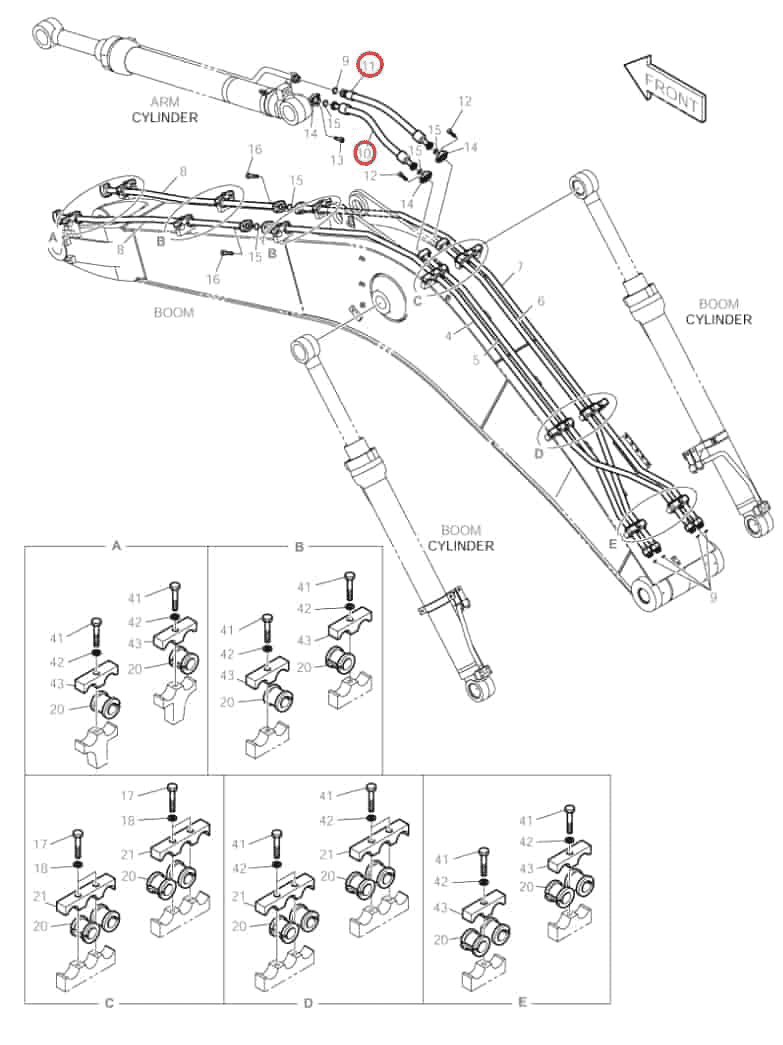

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number DS2016061 before removing the hose.
Repair specifications
- Part number
- DS2016061
- Diagram pipe number
- 11
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 700 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,350 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Length
- 1,100 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 1,100 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
