Individual hose record
KTH10850 Hose Repair Specifications
Excavator · Case · CX460 · Attachments
Finished length1,450 mm
Locate this hose

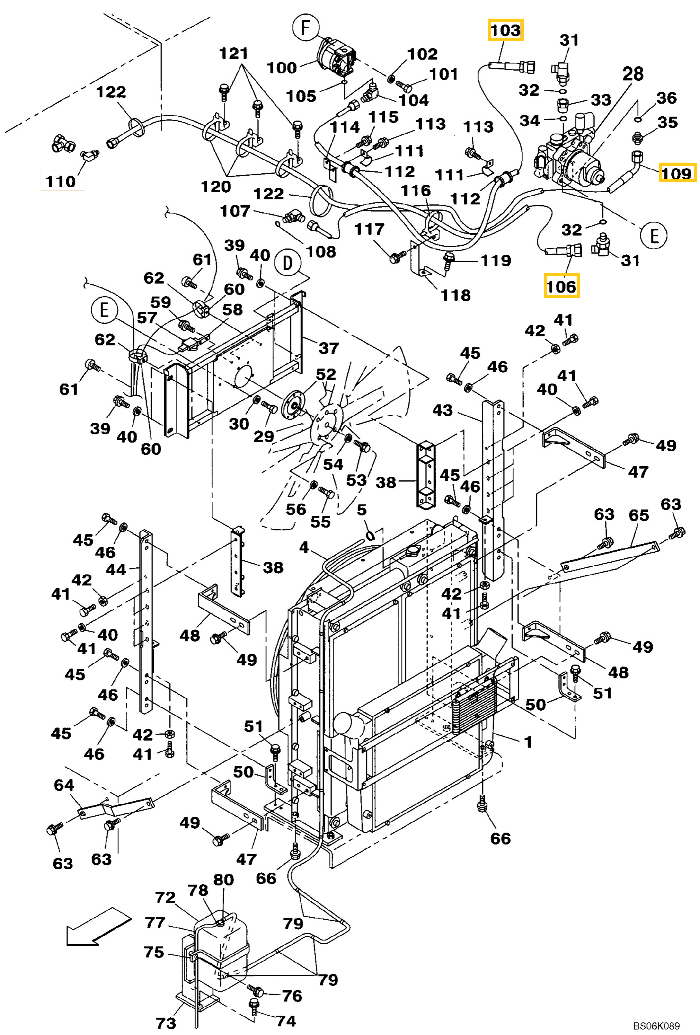

Installation diagram — Pipe No. 103
Locate Pipe No. 103 in the diagram, then confirm part number KTH10850 before removing the hose.
Repair specifications
- Part number
- KTH10850
- Diagram pipe number
- 103
- Installation route
- 风扇液压油泵~风扇马达
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 1,450 mm
- Working pressure
- 35 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
