Individual hose record

KHJ11500 Hose Repair Specifications

Excavator · Case · CX210B · Attachments – Breaker

Finished length3,600 mm

Locate this hose

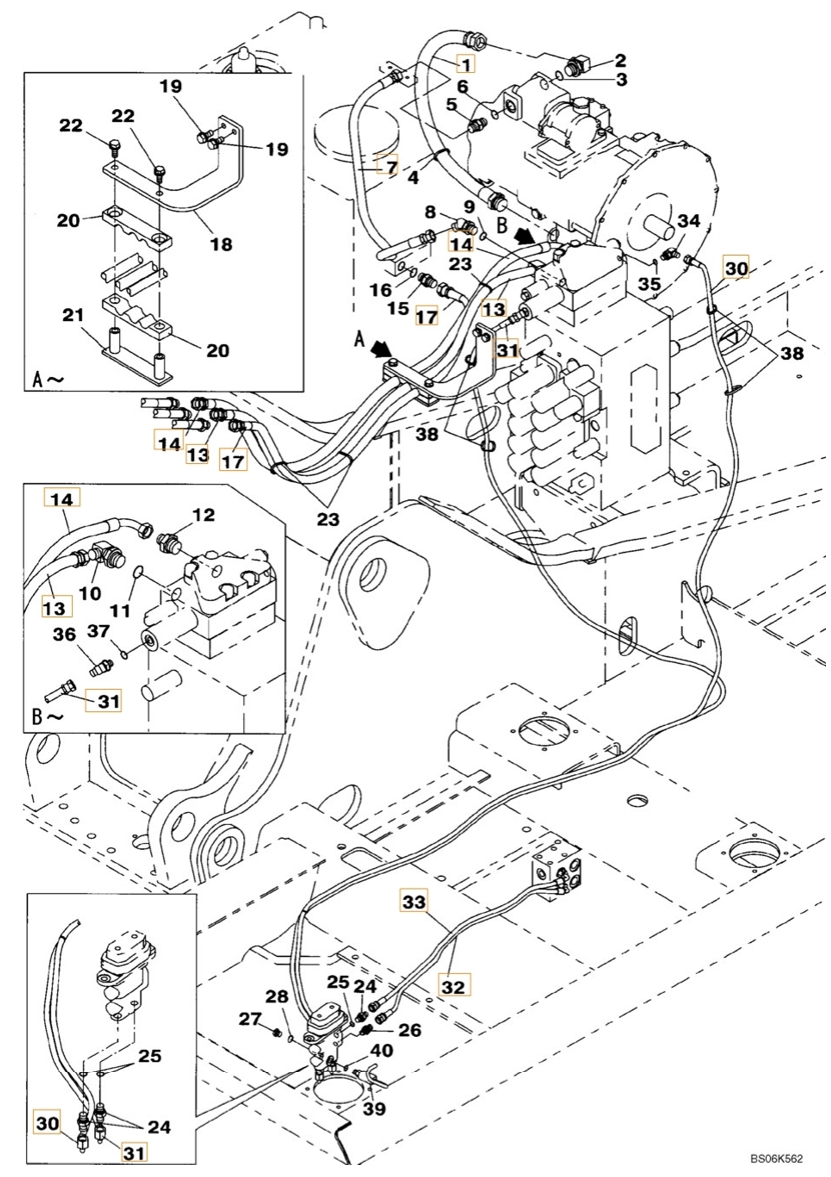

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number KHJ11500 before removing the hose.

Case CX210B installation diagram showing hydraulic hose KHJ11500 at Pipe No. 31 — **Case CX210B · KHJ11500**Part KHJ11500 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: KHJ11500
Diagram pipe number: 31
Installation route: 破碎器踏板~控制阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

KRJ11540

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 670 mm
Specification: DN19;4SH-12;42.0MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 28

KRJ16340

Installation route: 右过渡阀块(破碎器)~液压油箱

Length: 1,080 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 32

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 78

KHJ2036

Installation route: 电磁阀(破碎器)~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 80

KHJ2180

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 48

KHJ2198

Installation route: 破碎器踏板~分配阀后

Length: 2,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 77

KHJ2086

Installation route: 电磁阀(破碎器)~进回油阀

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 83

KHJ11500

Installation route: 电磁阀(破碎器)~分配阀上

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
