Individual hose record

4213452 Hose Repair Specifications

Excavator · Hitachi · EX150 · Control Valve

Finished length900 mm

Locate this hose

Installation diagram — Pipe No. 39

Locate Pipe No. 39 in the diagram, then confirm part number 4213452 before removing the hose.

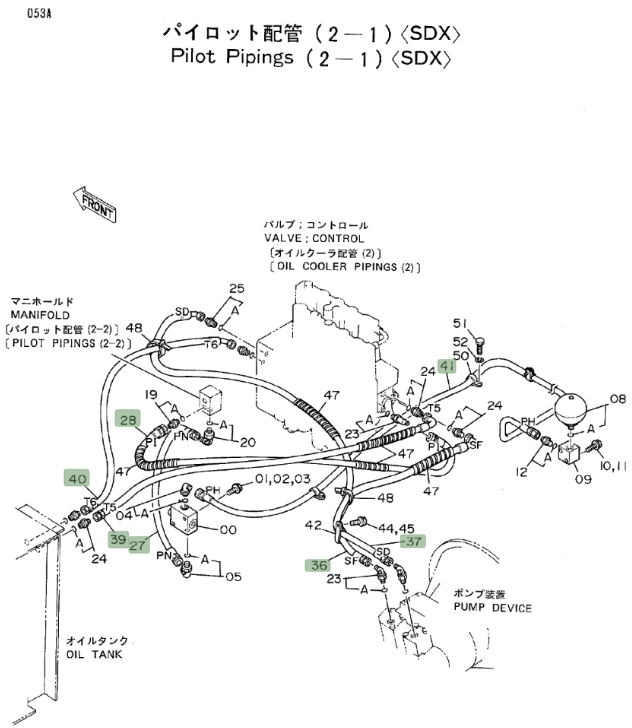

Hitachi EX150 installation diagram showing hydraulic hose 4213452 at Pipe No. 39 — Hitachi EX150Part 4213452 · Pipe No. 39Open full-size diagram

Repair specifications

Part number: 4213452
Diagram pipe number: 39
Installation route: 分配阀后~液压油箱
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 900 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 28

4200498

Installation route: 分配阀后~过渡阀块(分配阀)

Length: 800 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 40

4213451

Installation route: 分配阀前~液压油箱

Length: 800 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 34

4213456

Installation route: 分配阀上~分配阀右

Length: 380 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 43

4203161

Installation route: 分配阀右~分配阀右

Length: 450 mm
Specification: DN6;2SN-04;27.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 35

4213446

Installation route: 分配阀右~回转马达

Length: 600 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
