Individual hose record

4213456 Hose Repair Specifications

Excavator · Hitachi · EX150 · Control Valve

Finished length380 mm

Locate this hose

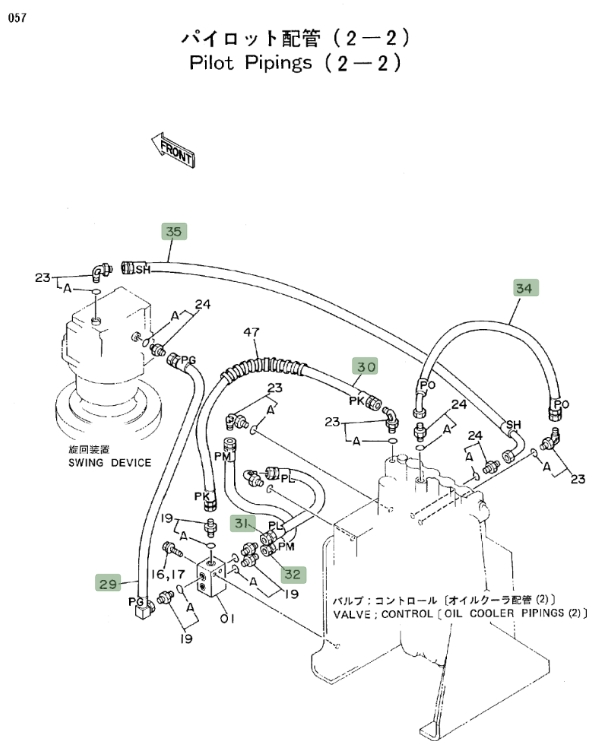

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 4213456 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4213456 at Pipe No. 34 — Hitachi EX150Part 4213456 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 4213456
Diagram pipe number: 34
Installation route: 分配阀上~分配阀右
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 380 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
